21876 T - Toro 76cm eTimeMaster 60V Walk-Behind Mower (SN: 400000000 - 999999999) Housing Assembly Parts Diagram

76cm eTimeMaster 60V Walk-Behind Mower

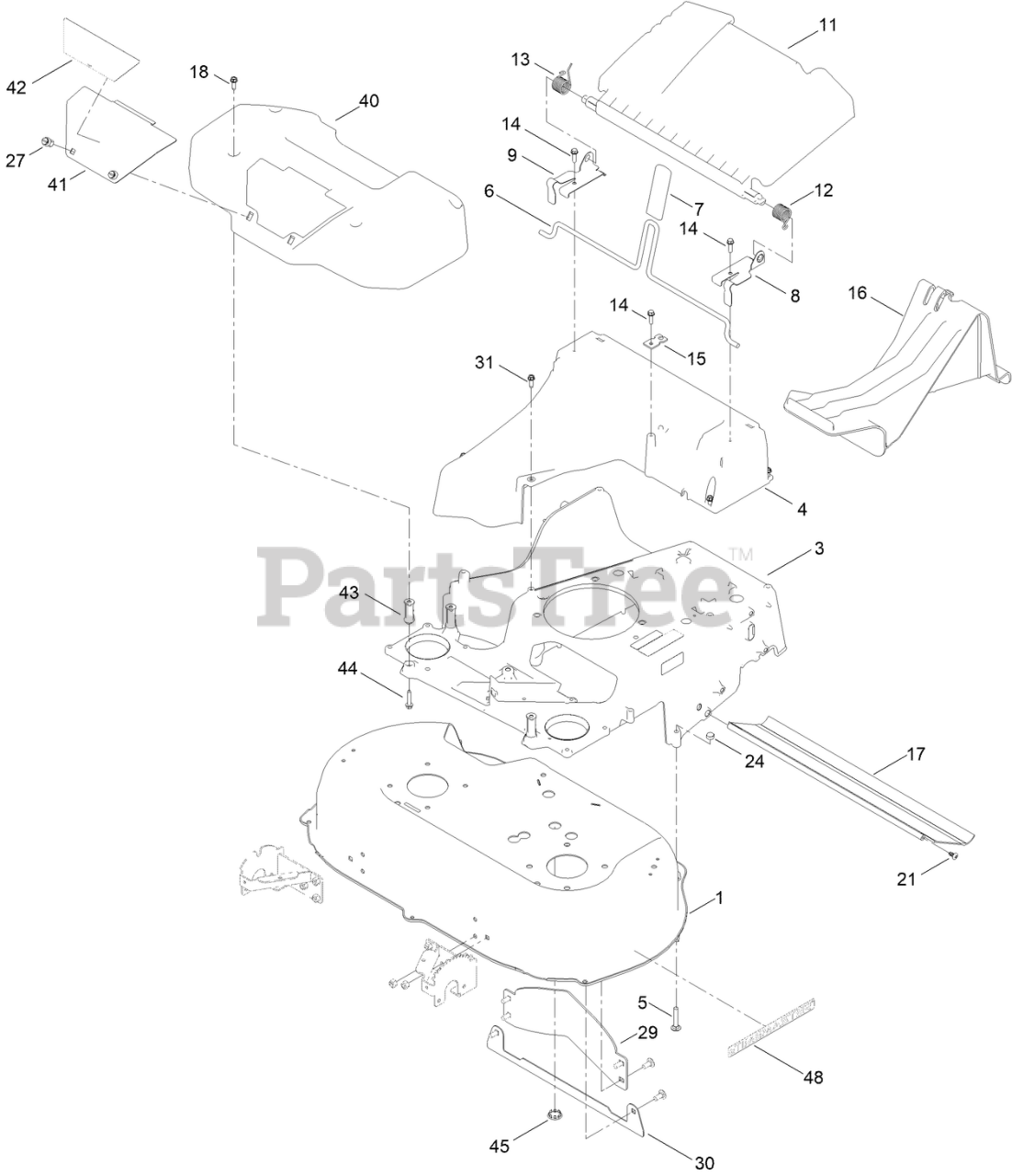

Housing Assembly Parts Diagram

  • Title

1

Toro 136-5874

HOUSING ASM

$

$

Not available

3

Toro 145-3985-01

FRAME-30IN, 60V

$216.99

$

Usually ships in 0 days

0

4

Toro 133-8177

CHUTE

$61.99

$

Usually ships in 3-6 days

0

5

Toro 137-3063

BOLT-CAR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 139-5415

ROD-RELEASE, HANDLE

$17.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$4.49

$

In Stock, only 2 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$20.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$20.99

$

Usually ships in 3-6 days

0

11

Toro 145-3997

REAR DEFLECTOR ASM

$42.99

$

Usually ships in 0 days

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 20+

0

13

Toro 114-7924

SPRING-TORSION

$3.99

$

In Stock, Qty 9

0

14

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 11

0

16

Toro 120-5225

PLUG-MULCH

$31.99

$

In Stock, Qty 20+

0

17

Toro 120-6241

SHIELD-TRAILING

$17.99

$

In Stock, Qty 20+

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 139-1692

SCREW-THD

$0.99

$

In Stock, Qty 20+

0

24

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, only 3 left!

0

27

Toro 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$28.99

$

Usually ships in 3-6 days

0

30

Toro 125-5081-01

PLATE-DECK

$14.99

$

Usually ships in 3-6 days

0

31

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

40

Toro 145-5898

COVER-BELT

$38.99

$

Usually ships in 0 days

0

41

Toro 145-5899-03

PANEL-ACCESS

$22.99

$

Usually ships in 0 days

0

42

Toro 145-3999

DECAL-ACCESS PANEL

$20.99

$

Usually ships in 0 days

0

43

Toro 140-3901

SPACER-FRAME, 30 IN.

$5.99

$

Usually ships in 0 days

0

44

Toro 108-4862

SCREW-HWHTF

$3.99

$

In Stock, only 2 left!

0

45

Toro 147-0471

PLUG-BUTTON

$

$

Currently unavailable

48

Toro 161-3153

DECAL

$11.99

$

Usually ships in 0 days

0
