21876 T - Toro 76cm eTimeMaster 60V Walk-Behind Mower (SN: 400000000 - 999999999) Spindle and Belt Assembly Parts Diagram

76cm eTimeMaster 60V Walk-Behind Mower

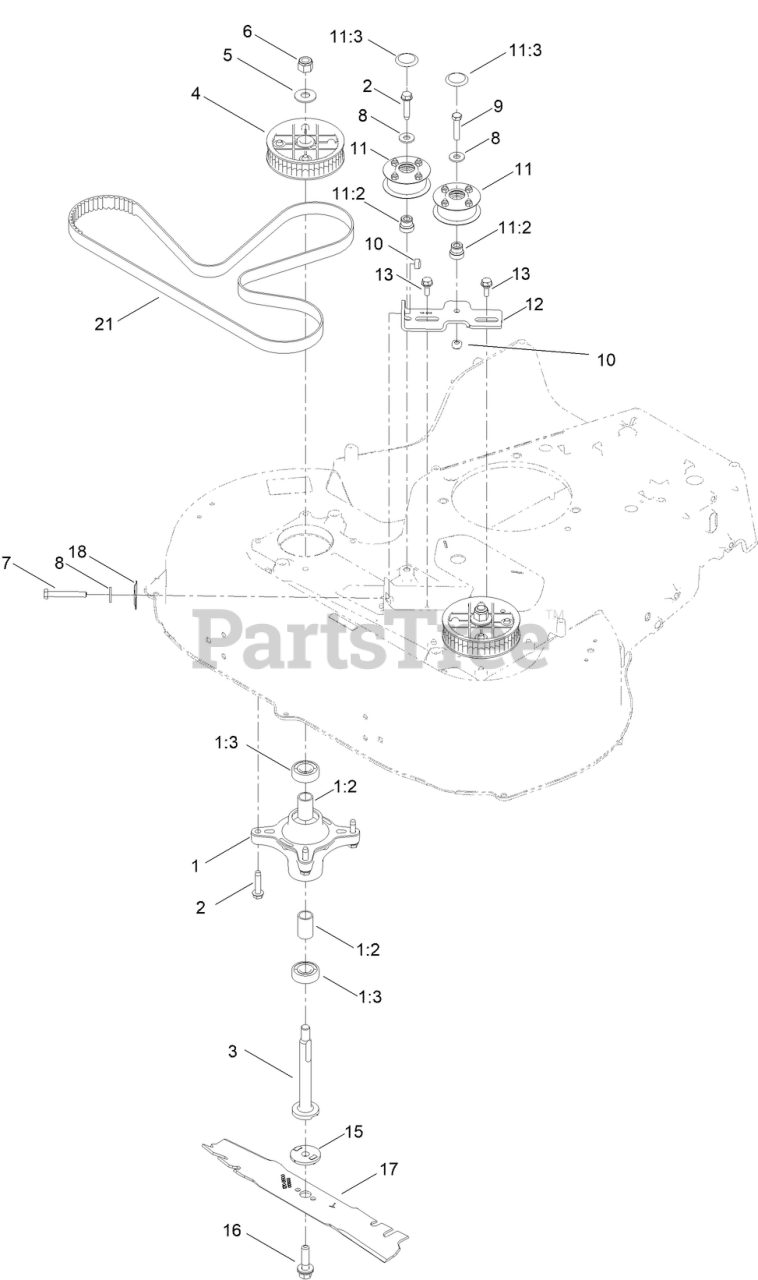

Spindle and Belt Assembly Parts Diagram

  • Title

1

Toro 121-9107

SPINDLE ASM

$79.99

$

In Stock, Qty 20+

0

1:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

1:3

Toro 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 20+

0

2

Toro 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 14

0

3

Toro 139-6612

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

4

Toro 121-9100

SPROCKET

$56.99

$

In Stock, Qty 20+

0

5

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 139-1725

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro 139-1728

BOLT-HH FT

$1.49

$

In Stock, Qty 20+

0

8

Toro 139-1723

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

9

Toro 120-2779

SCREW-HH

$

$

Currently unavailable

10

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, only 3 left!

0

11

Toro 139-1758

PULLEY KIT

$29.99

$

In Stock, only 2 left!

0

11:2

Toro 131-4504

ADAPTER-BORE

$5.49

$

In Stock, Qty 20+

0

11:3

Toro 125-2533

PLUG-CAP

$2.99

$

In Stock, Qty 20+

0

12

Toro 145-4016

BRACKET-IDLER

$9.49

$

In Stock, Qty 5

0

13

Toro 139-1730

Screw

$2.99

$

In Stock, only 4 left!

0

15

Toro 120-5236

ADAPTER-BLADE

$7.49

$

In Stock, Qty 20+

0

16

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

17

Toro 145-4002-03

BLADE-ROTARY [BLACK]

$26.99

$

Usually ships in 3-6 days

0

18

Toro 121-2336

SPRING-FLAT

$8.49

$

In Stock, Qty 20+

0

21

Toro 145-4001

BELT-SYNCHRONOUS

$86.99

$

Usually ships in 3-6 days

0
