218910x43F - Yard King 21" Walk-Behind Mower (2004) Engine Mount Parts Diagram

21" Walk-Behind Mower

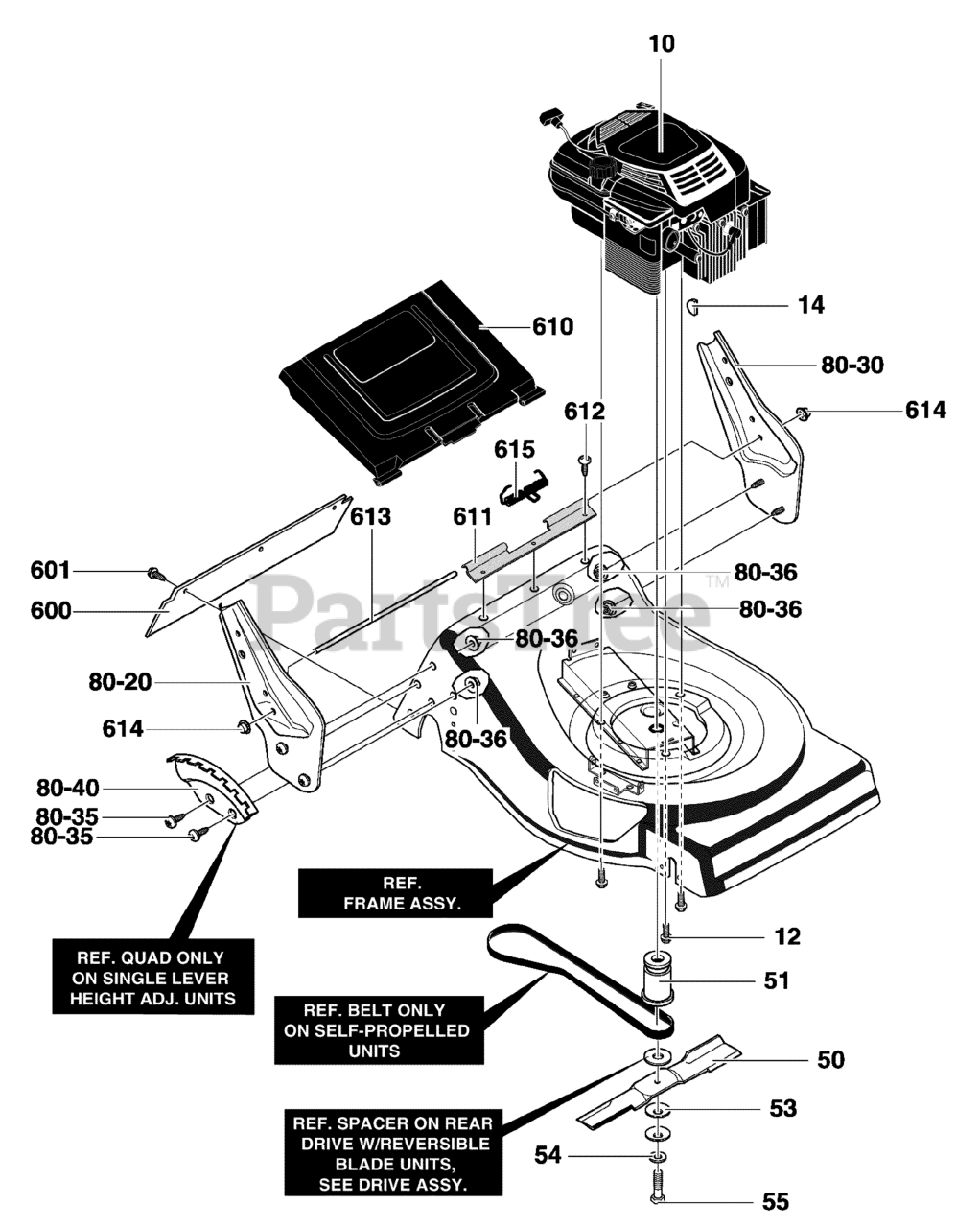

Engine Mount Parts Diagram

  • Title

10

ENGINE **

Note: (SEE ENGINE MANUAL)

$

$

Not available

12

Murray 0025X6

SCREW
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

14

Murray 20062

WOODRUFF KEY 505

$

$

Not available

50

Murray 672089

BLADE, 21" REVERSIBLE

$29.99

$

In Stock, only 2 left!

0

51

Murray 71058

ADAPTER, BLADE 21"

$3232.99

$

Usually ships in 2-12 days

0

53

Murray 17X137

WASHER, BEVELLE

$5.49

$

Usually ships in 2-12 days

0

54

Murray 17X124

WASHER

$

$

Not available

55

Murray 01X148

SCREW, 3/8-24 x 2.00

$3.99

$

Usually ships in 2-12 days

0

80-20

Murray 627845

BRACKET, HANDLE RH

$

$

Currently unavailable

80-30

Murray 672844

BRACKET, HANDLE LH

$

$

Currently unavailable

80-35

Murray 26X275

SCREW, 5/16-18 x 0.75

$5.49

$

Usually ships in 2-12 days

0

80-36

Murray 015X79

NUT, 5/16-16

$5.49

$

In Stock, Qty 20+

0

80-40

Murray 71569

QUADRANT, HEIGHT ADJ

$

$

Currently unavailable

600

Murray 43640

DEFLECTOR, REAR

$

$

Not available

601

Murray 26X245

SCREW, 10-16X.50

$4.49

$

In Stock, Qty 6

0

610

Murray 71409

DOOR, REAR 21

$66.99

$

Usually ships in 2-12 days

0

611

Murray 71410

SPACER

$

$

Not available

612

Murray 26X259

SCREW, 10-16X.50

$4.49

$

Usually ships in 2-12 days

0

613

Murray 672282 Z

ROD, PIVOT

$

$

Currently unavailable

614

Murray 028X42

CAP, PUSH ON

$3.99

$

Usually ships in 2-12 days

0

615

Murray 166X38

SPRING, TORSION

$

$

Not available

--

Murray F-040442L

OWNER'S MANUAL

$

$

Currently unavailable
