218910x43F - Yard King 21" Walk-Behind Mower (2004) Housing & Drive System Parts Diagram

21" Walk-Behind Mower

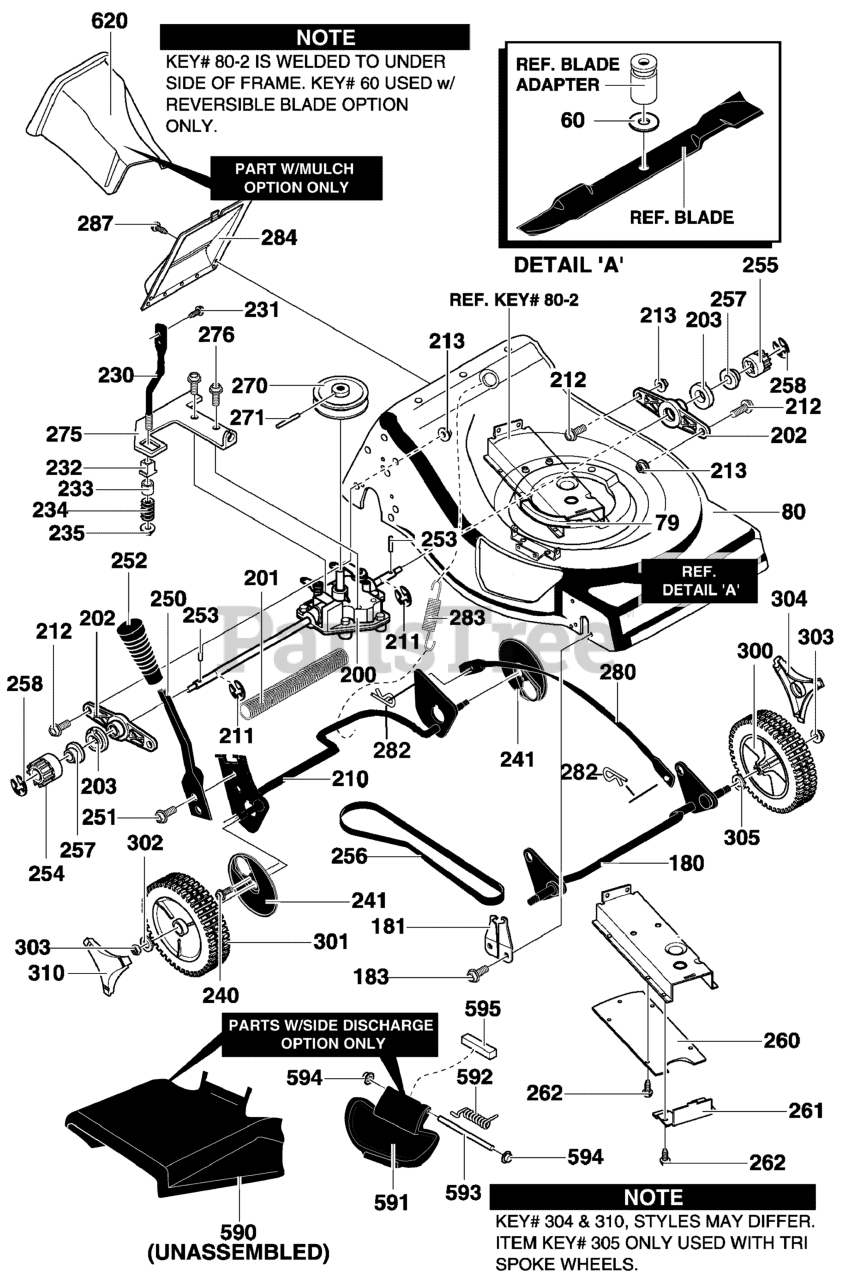

Housing & Drive System Parts Diagram

  • Title

60

Murray 71470

SPACER

$

$

Not available

79

Murray 712012

SEAL, FOAM

$

$

Not available

80

Murray 071762E201

ASSY, FRAME

$

$

Currently unavailable

180

Murray 71152

CROSSBAR, FRONT

$

$

Currently unavailable

181

Murray 672279

BUSHING

$4.49

$

Usually ships in 2-12 days

0

183

Murray 26X221

SCREW

$3.49

$

Usually ships in 2-12 days

0

200

Murray 672270

TRANSMISSION

$267.99

$

Usually ships in 2-12 days

0

201

Murray 43649

SHIELD, AXLE

$

$

Not available

202

Murray 71411

SUPPORT, AXLE

$9.49

$

Usually ships in 2-12 days

0

203

Murray 43788

BEARING, LIFTER

$4.99

$

In Stock, only 2 left!

0

210

Murray 672277

ASSY, CROSSBAR

$

$

Currently unavailable

211

Murray 011X16

E-RING

$3.99

$

Usually ships in 2-12 days

0

212

Murray 001X45

SCREW
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

213

Murray 015X74

NUT

$

$

Currently unavailable

230

Murray 071481 Z

SUPPORT, SPRING

$

$

Currently unavailable

231

Murray 26X217

SCREW

$4.49

$

In Stock, Qty 20+

0

232

Murray 71480

BUSHING

$3.99

$

Usually ships in 2-12 days

0

233

Murray 43844

SPACER
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 5

0

234

Murray 164X27

SPRING

$

$

Not available

235

Murray 015X88

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

240

Murray 26X221

SCREW

$3.49

$

Usually ships in 2-12 days

0

241

Murray 43616

DUST COVER

$1.99

$

Usually ships in 2-12 days

0

250

Murray 672278

LEVER, SPRING

$12.99

$

Usually ships in 2-12 days

0

251

Murray 26X263

SCREW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

252

Murray 71297

KNOB, HEIGHT ADJ

$6.49

$

In Stock, only 1 left!

0

253

Murray 43629

PIN, DRIVE

$5.99

$

In Stock, Qty 6

0

254

Murray 671904

GEAR, PINION RIGHT

$

$

Not available

255

Murray 671903

GEAR, PINION LEFT

$21.99

$

Usually ships in 2-12 days

0

256

Murray 672271

BELT, V

$22.99

$

In Stock, only 1 left!

0

257

Murray 17X186

WASHER, FLAT

$

$

Not available

258

Murray 011X16

E-RING

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770

COVER, BELT GUARD

$

$

Currently unavailable

261

Murray 71239

COVER, FRONT BELT

$

$

Currently unavailable

262

Murray 26X259

SCREW

$4.49

$

Usually ships in 2-12 days

0

270

Murray 672269

PULLEY

$

$

Not available

271

Murray 97129

PIN, SPRING

$3.99

$

Usually ships in 2-12 days

0

275

Murray 672819

BRACKET, CABLE

$10.99

$

Usually ships in 2-12 days

0

276

Murray 710264

SCREW

$

$

Not available

280

Murray 43721

LINK, LIFTER ASSY

$

$

Currently unavailable

282

Murray 0031X9

PIN, HAIR

$3.49

$

Usually ships in 2-12 days

0

283

Murray 711459

SPRING, EXTENSION

$23.99

$

Usually ships in 2-12 days

0

284

Murray 71246

COVER, REAR

$

$

Not available

287

Murray 26X263

SCREW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

300

Murray 672802

TIRE & RIM

$

$

Not available

301

Murray 672440

WHEEL, DRIVE

$

$

Not available

302

Murray 017X91

WASHER, FLAT
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

303

Murray 015X84

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

304

Murray 672445

HUB CAP

$5.49

$

Usually ships in 2-12 days

0

305

Murray 710258

SPRING WASHER

$10.99

$

Usually ships in 2-12 days

0

310

Murray 672805

HUB CAP

$5.99

$

Usually ships in 2-12 days

0

590

Murray 71770

DEFLECTOR, CHUTE

$34.99

$

Usually ships in 2-12 days

0

591

Murray 71769

COVER, MULCH

$

$

Not available

592

Murray 166X38

SPRING, TORSION

$

$

Not available

593

Murray 215X16 Z

ROD, PIVOT

$

$

Currently unavailable

594

Murray 710285

CAP, PUSH ON
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

595

Murray 712012

SEAL, FOAM

$

$

Not available

620

Murray 71250

PLUG, MULCHER

$97.99

$

In Stock, only 1 left!

0
