21900 - Toro Whirlwind Walk-Behind Mower (SN: 003000001 - 003999999) (1973) Engine Tecumseh Model Lav40-50329c Parts Diagram

Whirlwind Walk-Behind Mower

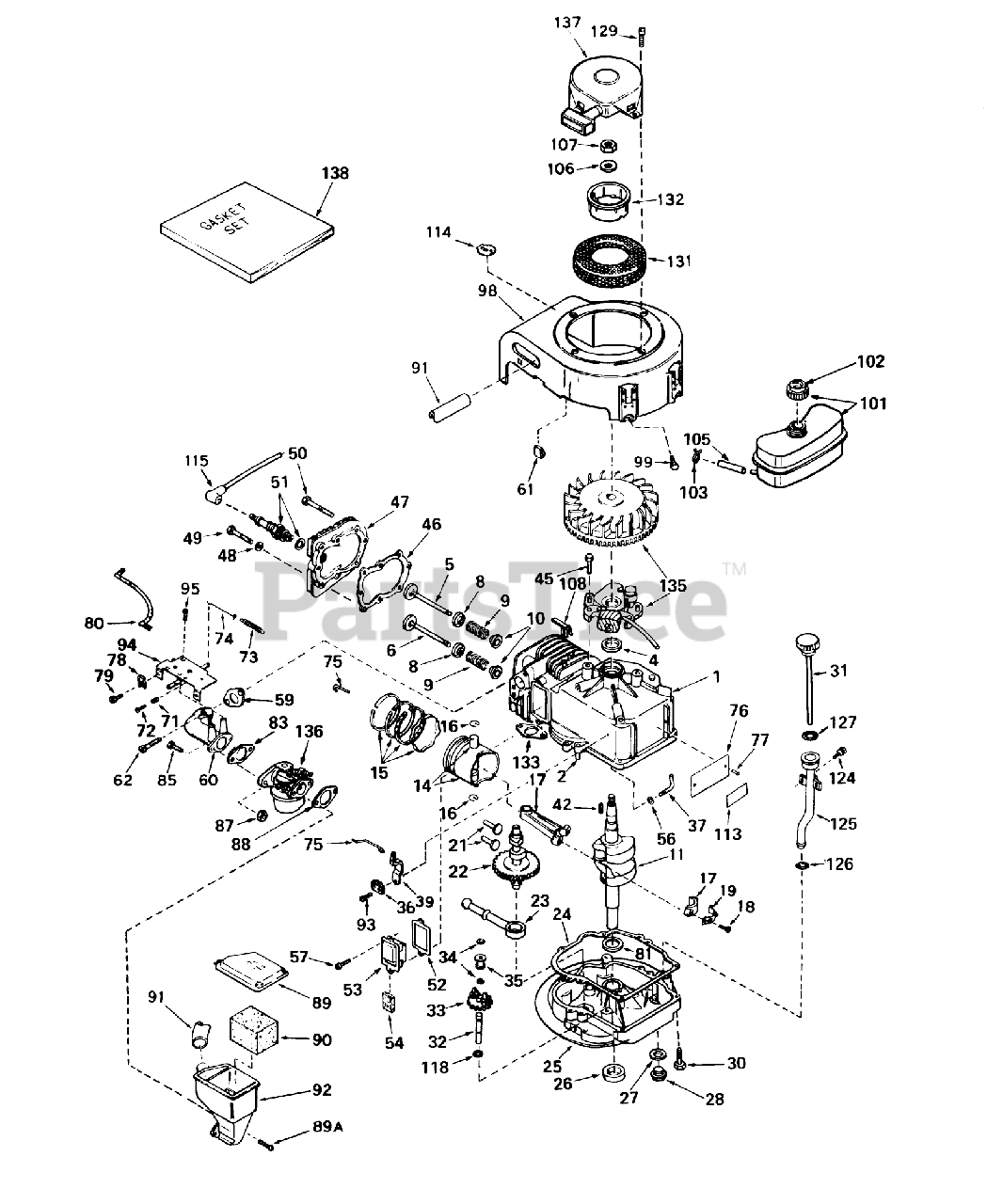

Engine Tecumseh Model Lav40-50329c Parts Diagram

  • Title

1

Toro 33824

Cylinder Assy. (Incl. Nos. 2 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

8

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

9

Toro 31672

Spring-Valve

$

$

Currently unavailable

10

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 32887A

Crankshaft

$

$

Currently unavailable

14

Toro 32603

DISCONTINUED

$

$

Not available

14

Toro 32604

Piston Pin Assembly (Incl. 2 of No. 14) (.010 Oversize)

$

$

Currently unavailable

14

Toro 32605

Piston Pin Assembly (Incl. 2 of No. 14) (.020 Oversize)

$

$

Currently unavailable

15

Toro 32606

Ring Set Piston (Std.)

$

$

Currently unavailable

15

Toro 32607

Ring Set Piston (.010 Oversize)

$

$

Currently unavailable

15

Toro 32608

Ring Set Piston (.020 Oversize)

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)

$

$

Currently unavailable

18

Toro 32610

Connecting Rod Bolt

$

$

Currently unavailable

19

Toro 32609

Plate Lock

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 33148A

Camshaft (Compression Release

$

$

Currently unavailable

23

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

Toro 26750A

Gasket, Mounting

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

25

Toro 33825

Flange Assy., Mounting (Incl. Nos. 26, 27, 28 32)

$

$

Currently unavailable

26

Toro 27897

Seal-Oil

$

$

Currently unavailable

27

Toro 28833

Gasket-Oil Drain

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

28

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

30

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 30140

Dipstick, Oil

$

$

Currently unavailable

32

Toro 30574

Shaft-Governor

$

$

Currently unavailable

33

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

39

Toro 32651

Governor Lever

$

$

Currently unavailable

42

Toro 27247

Key Flywheel

$

$

Currently unavailable

45

Toro 650489

Screw

$

$

Currently unavailable

46

Toro 33015

63573 GIL 42 SNWTHW

Note: Included in Gasket Set, Part No. 33238

$3.23

$

Usually ships in 3-6 days

0

47

Toro 33016

Head Cylinder

$

$

Currently unavailable

48

Toro 26073

Washer

$

$

Currently unavailable

49

Toro 6021

Screw

$

$

Currently unavailable

50

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

51

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

52

Toro 31619

Gasket Breather

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

53

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

54

Toro 31410

Element-Breather

$

$

Currently unavailable

56

Toro 28277

Washer-Flat

$

$

Currently unavailable

57

Toro 650128

Screw

$

$

Currently unavailable

59

Toro 30188

Gasket, Intake

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

60

Toro 33004

Pipe, Intake

$

$

Currently unavailable

61

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

62

Toro 650451

Screw (1/4-20 x 1)

$

$

Currently unavailable

71

Toro 31342

Spring-Compression

$

$

Currently unavailable

72

Toro 650549

Screw

$

$

Currently unavailable

73

Toro 31386

Spring, Governor

$

$

Currently unavailable

74

Toro 32653

Link-Governor

$

$

Currently unavailable

75

Toro 33133

Link Governor

$

$

Not available

76

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

77

Toro 28670

Stud

$

$

Not available

78

Toro 27793

Conduit

$

$

Currently unavailable

79

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

80

Toro 31388

Wire, Ground

$

$

Currently unavailable

81

Toro 32323

Washer-Thrust

$

$

Currently unavailable

83

Toro 26756

Gasket

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

85

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

87

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

88

Toro 33051

Gasket-Air Cleaner

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

89

Toro 33007

Cover, Air Cleaner

$

$

Currently unavailable

89A

Toro 650707

Screw, Fil. Hd. Sems

$

$

Currently unavailable

90

Toro 33006

Element, Air Cleaner

$

$

Currently unavailable

91

Toro 33008

Tube, Air Cleaner

$

$

Currently unavailable

92

Toro 33005

Body, Air Cleaner

$

$

Currently unavailable

93

Toro 650548

Screw

$

$

Currently unavailable

94

Toro 33131

51089 SUPP TO MANUA

$3.23

$

Usually ships in 3-6 days

0

95

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

98

Toro 32455B

Housing, Blower

$

$

Currently unavailable

99

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

101

Toro 32671

Tank Assy., Fuel (Incl. No. 102)

$

$

Currently unavailable

102

Toro 410144B

Cap, Fuel

$

$

Currently unavailable

103

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

105

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

106

Toro 650490

Washer

$

$

Currently unavailable

107

Toro 650607

Hex Nut

$

$

Currently unavailable

108

Toro 29443

Clip-Wire

$

$

Currently unavailable

113

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

114

Toro 31328

8HP RID. W/ELE STAR

$3.23

$

Usually ships in 3-6 days

0

115

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

118

Toro 30590A

Washer-Flat

$

$

Currently unavailable

124

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

125

Toro 32750

Tube Assy., Oil Fill

$

$

Currently unavailable

126

Toro 30139

O-Ring

$

$

Currently unavailable

127

Toro 29985

O-Ring

$

$

Currently unavailable

129

Toro 29716

Screw

$

$

Currently unavailable

131

Toro 590417

Screen, Air

$

$

Currently unavailable

132

Toro 590416

Starter Cup

$

$

Currently unavailable

133

Toro 30081

Gasket Exhaust

Note: Included in Gasket Set, Part No. 33238

$

$

Currently unavailable

135

Toro 610755

LEVER

$

$

Not available

136

Toro 631699

Carburetor

$

$

Currently unavailable

137

Toro 590420

Starter, Rewind

$

$

Currently unavailable

138

Toro 33238

Gasket Set

$

$

Currently unavailable
