21975x92C - Briggs & Stratton 21" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

21" Walk-Behind Mower

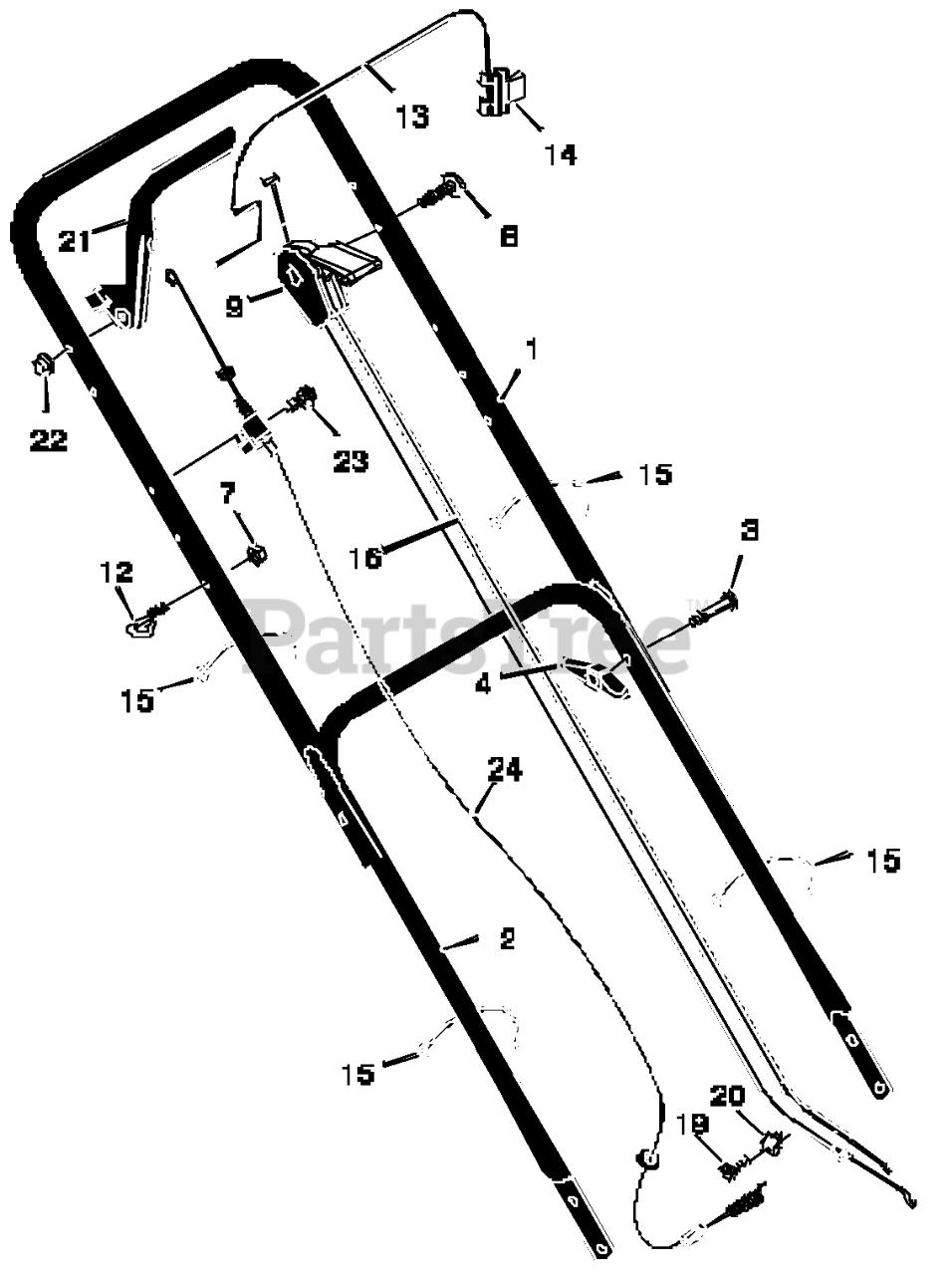

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper (Black)

$159.99

$

Usually ships in 2-12 days

0

2

Murray 071137E701MA

Handle, Lower (Black)

$139.99

$

Usually ships in 2-12 days

0

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 6

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 03X144

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 672133MA

Throttle Control

$31.99

$

Usually ships in 2-12 days

0

12

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

13

Murray 672117E245

Stop Lever - Straight

$

$

Currently unavailable

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 672126MA

Engine Stop Cable

$28.99

$

Usually ships in 2-12 days

0

19

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

$

$

Not available

21

Murray 071566

Lever, Drive

$

$

Currently unavailable

22

Murray 028X48MA

Push On Cap

$4.49

$

In Stock, only 1 left!

0

23

Murray 26X256MA

Screw

$

$

Not available

24

Murray 672043MA

Cable, Drive

$45.99

$

Usually ships in 2-12 days

0
