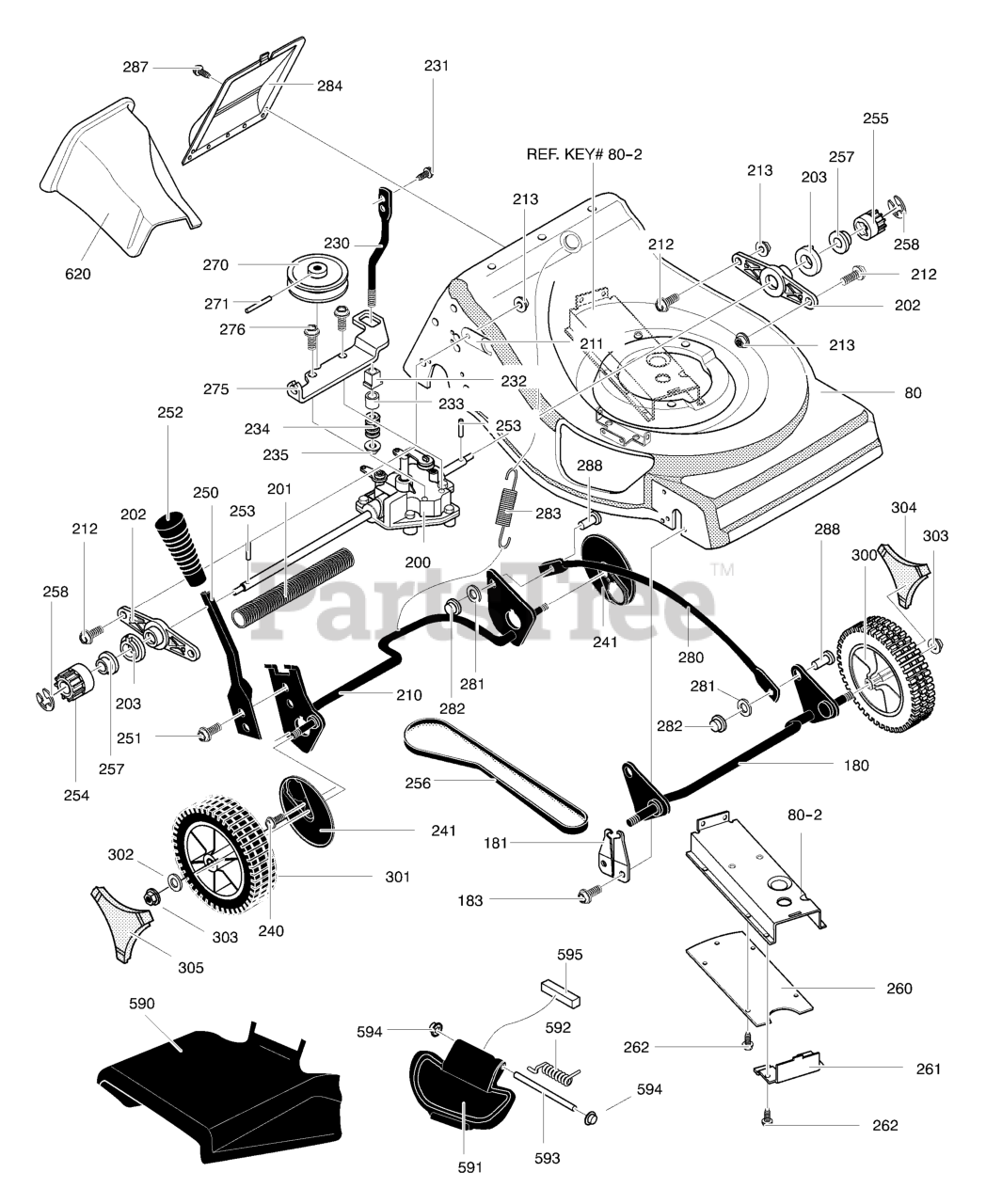

219931x692A - Stanley 21" Walk-Behind Mower (2001) Drive Assembly Parts Diagram

21" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

80

Murray 672274-884

Assy., Frame

$

$

Currently unavailable

80-2

UNKNOWN

$

$

Not available

180

Murray 71152-884

Assy., Crossbar Front

$

$

Currently unavailable

181

Murray 672279MA

Bushing, Front

$4.49

$

Usually ships in 2-12 days

0

183

Murray 710270

Screw, 1/4-14x.50

$20.99

$

Usually ships in 2-12 days

0

200

Murray 672042MA

Transmission *

$421.99

$

Usually ships in 2-12 days

0

201

Murray 643649

Shield, Axle

$1.49

$

Usually ships in 2-12 days

0

202

Murray 671411

Support, Axle

$

$

Currently unavailable

203

Murray 643788

Bearing, Lifter

$

$

Currently unavailable

210

Murray 672277-884

Assy., Crossbar RR

$

$

Currently unavailable

211

Murray 071482

Retainer, Bearing

$

$

Currently unavailable

212

Murray 180077MA

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

213

Murray 710205

Nut, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

230

Murray 071481

Support, Spring

$5.49

$

Usually ships in 2-12 days

0

231

Murray 710274

Screw, 1/4-20x.63

$61.99

$

Usually ships in 2-12 days

0

232

Murray 071480MA

Bushing, Spring

$3.99

$

Usually ships in 2-12 days

0

233

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

234

Murray 710327

Spring, Compression

$1.49

$

Usually ships in 2-12 days

0

235

Murray 710205

Nut, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

240

Murray 710270

Screw, 1/4-14x.50

$20.99

$

Usually ships in 2-12 days

0

241

Murray 643616MA

Dust Cover

$6.49

$

Usually ships in 2-12 days

0

250

Murray 672278MA

Lever, Spring

$12.99

$

Usually ships in 2-12 days

0

251

Murray 710274

Screw, 1/4-20x.63

$61.99

$

Usually ships in 2-12 days

0

252

Murray 671297MA

Knob, Hgt Adjust

$6.49

$

In Stock, only 1 left!

0

253

Murray 643629

Pin, Drive

$

$

Not available

254

Murray 671904MA

Gear, Pinion Right

$

$

Not available

255

Murray 671903MA

Gear, Pinion Left

$21.99

$

Usually ships in 2-12 days

0

256

Murray 7769206MA

Belt, 2L 15.75L

$

$

Not available

257

Murray 710254

Flatwasher
(Superseded to 710364)

$152.99

$

Usually ships in 2-12 days

0

258

Murray 020864

Ring, Ret. E

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770-884

Cover, Lower Belt Guard

$3.49

$

Usually ships in 2-12 days

0

261

Murray 71239-884

Cover, Front Belt

$

$

Currently unavailable

262

Murray 710273

Screw, 10-16x.50

$

$

Currently unavailable

270

Murray 672269MA

Pulley, 2L

$17.99

$

Usually ships in 2-12 days

0

271

Murray 710294

Pin, Spring

$

$

Not available

275

Murray 671925

Bracket, Transaxle

$

$

Currently unavailable

276

Murray 710264

Screw, 1/4-20x.50

$

$

Not available

280

Murray 43720-884

Link, Lifter

$

$

Currently unavailable

281

Murray 712072

Nut, Push On

$

$

Not available

282

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

283

Murray 711459MA

Spring, Ext.

$9.49

$

Usually ships in 2-12 days

0

284

Murray 71246-884

Cover, Rear Trans.

$

$

Currently unavailable

287

Murray 711863

Screw, 1/4-20x.63

$1.99

$

Usually ships in 2-12 days

0

288

Murray 711542MA

Pin, Clevis

$5.99

$

Usually ships in 2-12 days

0

300

Murray 1101408MA

Tire & Rim
(Superseded to 672802MA)

$27.99

$

Usually ships in 2-12 days

0

301

Murray 1101409MA

Wheel, Drive
(Superseded to 672440MA)

$

$

Not available

302

Murray 710252

Washer, Flat
(Superseded to 711573)

$52.99

$

Usually ships in 2-12 days

0

303

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

304

Murray 1101412

Cap, Front Hub

$

$

Not available

305

Murray 1101413MA

Cap, Rear Hub

$4.99

$

Usually ships in 2-12 days

0

590

Murray 071770MA

Chute, Side Discharge

$21.99

$

In Stock, only 1 left!

0

591

Murray 071769

Cover, Mulch

$

$

Currently unavailable

592

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

593

Murray 215X16 Z

Rod, Pivot

$

$

Currently unavailable

594

Murray 028X42MA

Cap, Push On

$3.99

$

Usually ships in 2-12 days

0

595

Pad, Foam

Note: (Purchase locally)

$

$

Not available

620

Murray 071250MA

Plug, Mulch

$97.99

$

In Stock, only 1 left!

0

--

Murray F-010452M

Instruction Book

$

$

Currently unavailable
