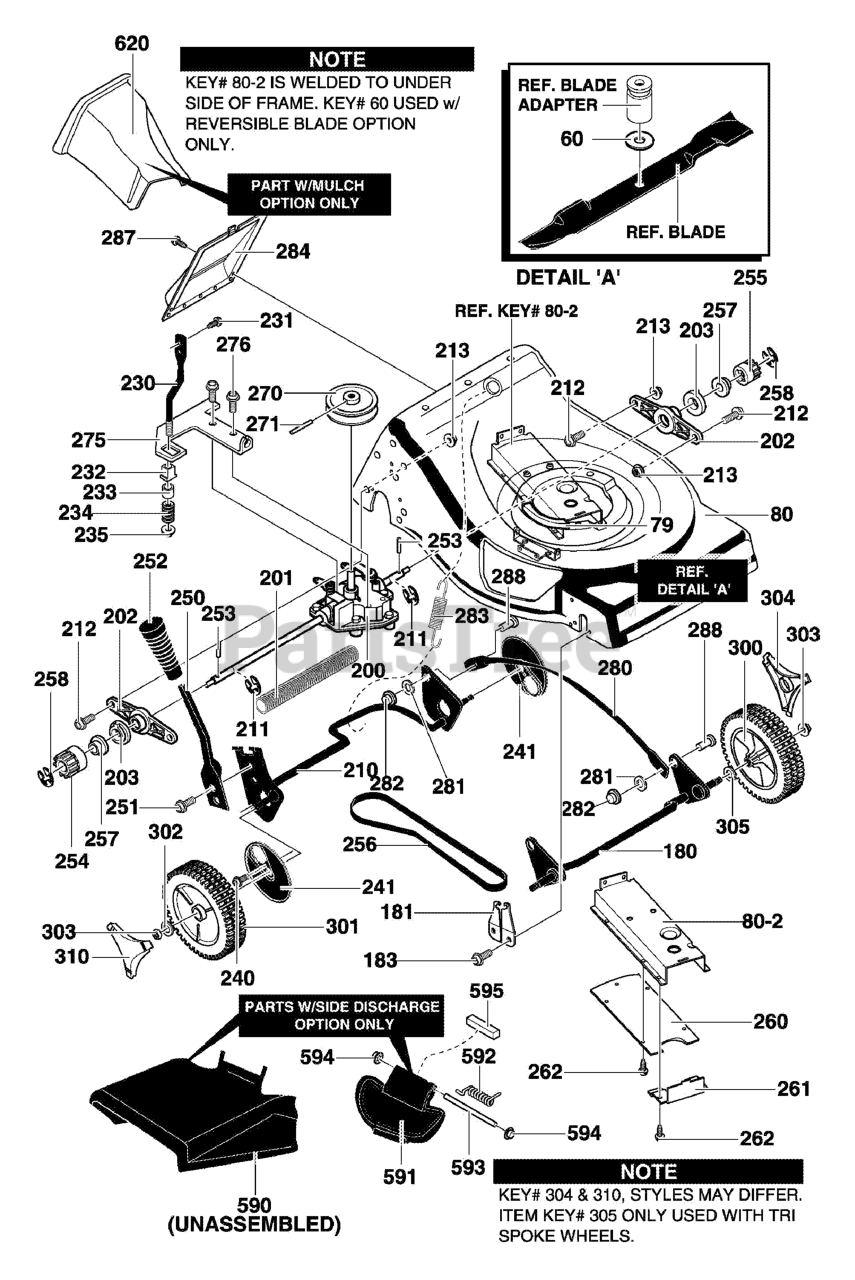

21997x31A - Scotts 21" Walk-Behind Mower (2000) Drive & Wheel Assembly Parts Diagram

21" Walk-Behind Mower

Drive & Wheel Assembly Parts Diagram

  • Title

60

Murray 671470

Adapter, Blade

$2.49

$

Usually ships in 2-12 days

0

79

Murray 712012

Seal, Foam

$

$

Not available

80

Murray 672923-898

Frame Assembly

$159.99

$

Usually ships in 2-12 days

0

80-2

Murray 71238

Guard, Belt

$

$

Not available

180

Murray 71152-898

Assy, Crossbar Front

$

$

Not available

181

Murray 672279MA

Bushing, Front Housing

$4.49

$

Usually ships in 2-12 days

0

183

Murray 710270

Screw, 1/4-14x.50

$20.99

$

Usually ships in 2-12 days

0

200

Murray 672270MA

Transmission T-Torq

$267.99

$

Usually ships in 2-12 days

0

201

Murray 643649

Shield, Axle

$1.49

$

Usually ships in 2-12 days

0

202

Murray 671411

Support, Axle w/Bearing

$

$

Currently unavailable

203

Murray 643788

Bearing, Lifter

$

$

Currently unavailable

210

Murray 672277-898

Assy, Crossbar RR

$

$

Currently unavailable

211

Murray 020864

Ring, Ret E

$3.99

$

Usually ships in 2-12 days

0

212

Murray 180077MA

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

213

Murray 710205

Nut, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

230

Murray 071481

Bearing, Lifter

$5.49

$

Usually ships in 2-12 days

0

231

Murray 305850MA

Screw, 1/4-20x.50

$3.49

$

Usually ships in 2-12 days

0

232

Murray 071480MA

Bushing, Spring Support

$3.99

$

Usually ships in 2-12 days

0

233

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

234

Murray 710327

Spring, Compression

$1.49

$

Usually ships in 2-12 days

0

235

Murray 710205

Nut, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

240

Murray 710270

Screw, 1/4-14x.50

$20.99

$

Usually ships in 2-12 days

0

241

Murray 643616MA

Dustcover, 8" Wheel

$6.49

$

Usually ships in 2-12 days

0

250

Murray 672278MA

Lever, Spring

$12.99

$

Usually ships in 2-12 days

0

251

Murray 710274

Screw, 1/4-20x.63

$61.99

$

Usually ships in 2-12 days

0

252

Murray 671297MA

Knob, Hgt/Adj

$6.49

$

In Stock, only 1 left!

0

253

Murray 643629

Drive Pin

$

$

Not available

254

Murray 671904MA

Gear, Pinion Right

$

$

Not available

255

Murray 671903MA

Gear, Pinion Left

$21.99

$

Usually ships in 2-12 days

0

256

Murray 672271MA

Belt, V 2L 14.143LG

$22.99

$

In Stock, only 1 left!

0

257

Murray 710254

Flatwasher
(Superseded to 710364)

$152.99

$

Usually ships in 2-12 days

0

258

Murray 020864

Ring, Ret. E

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770-898

Cover, Lower Belt Guard

$

$

Currently unavailable

261

Murray 71239-898

Cover, Front Belt

$

$

Currently unavailable

262

Murray 710273

Screw, 10-16x.50

$

$

Currently unavailable

270

Murray 672269MA

Pulley, 2L T-Torq

$17.99

$

Usually ships in 2-12 days

0

271

Murray 710294

Pin, Spring

$

$

Not available

275

Murray 672819

Bracket, Transaxle Cable

$10.99

$

Usually ships in 2-12 days

0

276

Murray 710264

Screw, 1/4-20x.50

$

$

Not available

280

Murray 43720-898

Link, Lifter

$

$

Currently unavailable

281

Murray 712072

Nut, Push On

$

$

Not available

282

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

283

Murray 711459MA

Spring, Extension

$9.49

$

Usually ships in 2-12 days

0

284

Murray 71246-898

Cover, Rear Trans.

$6.99

$

Usually ships in 2-12 days

0

287

Murray 711863

Screw, 1/4-20x.63

$1.99

$

Usually ships in 2-12 days

0

288

Murray 711542MA

Clevis Pin

$5.99

$

Usually ships in 2-12 days

0

300

Murray 672802

Tire & Rim

$

$

Not available

301

Murray 672440MA

Wheel, Drive

$

$

Not available

302

Murray 710252

Flatwasher
(Superseded to 711573)

$52.99

$

Usually ships in 2-12 days

0

303

Murray 710140

Nut, 3/16-18

$10.99

$

Usually ships in 2-12 days

0

304

Murray 672445MA

Hubcap

$5.49

$

Usually ships in 2-12 days

0

305

Murray 710258

Washer, Spring

$10.99

$

Usually ships in 2-12 days

0

310

Murray 672805MA

Hubcap
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

590

Murray 672046MA

Deflector, Chute

$34.99

$

Usually ships in 2-12 days

0

591

Murray 672045MA

Cover, Mulching

$17.99

$

Usually ships in 2-12 days

0

592

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

593

Murray 340827 Z

Rod, Pivot

$

$

Currently unavailable

594

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

595

Murray 712012

Seal, Foam

$

$

Not available

620

Murray 071250MA

Plug, Mulcher Small

$97.99

$

In Stock, only 1 left!

0
