21997x50A - Murray 21" Walk-Behind Mower (2001) Handle & Bag Assembly Parts Diagram

21" Walk-Behind Mower

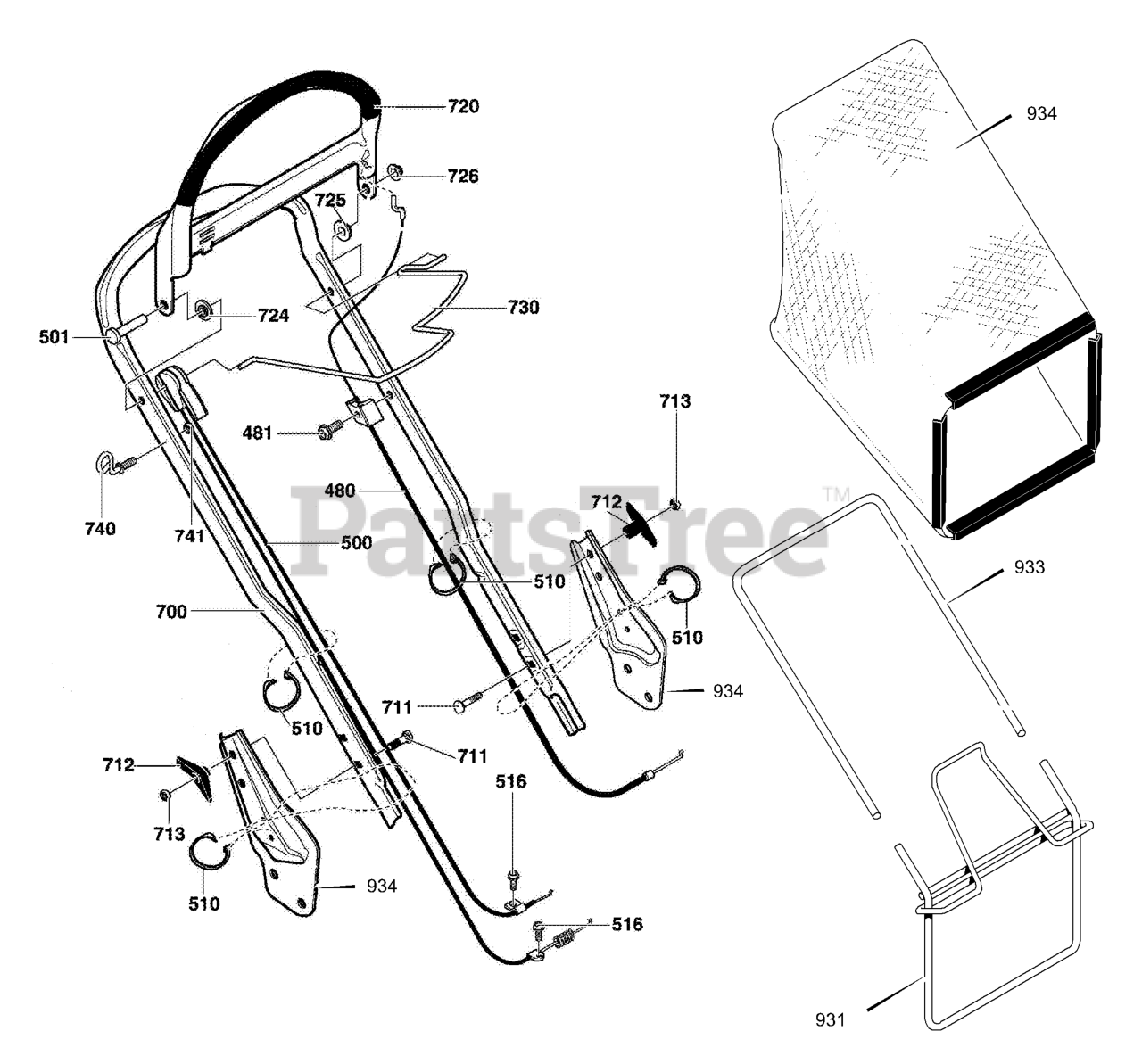

Handle & Bag Assembly Parts Diagram

  • Title

480

Murray 672667MA

CABLE,STOP

$33.99

$

In Stock, only 1 left!

0

481

Murray 710269

SCREW

$

$

Not available

500

Murray 672854MA

CABLE, DRIVE

$119.99

$

Usually ships in 2-12 days

0

501

Murray 711833MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

510

Murray 712267

TIE, CABLE

$3.99

$

Usually ships in 2-12 days

0

516

Murray 710271

SCREW

$

$

Currently unavailable

700

Murray 672843

HANDLE

$

$

Currently unavailable

711

Murray 710175

BOLT

$5.99

$

Usually ships in 2-12 days

0

712

Murray 57171

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, only 3 left!

0

713

Murray 120376

NUT

$

$

Not available

720

Murray 672797

LEVER, STOP

$23.99

$

Usually ships in 2-12 days

0

724

Murray 672734MA

SPACER

$4.49

$

In Stock, only 1 left!

0

725

Murray 672734MA

SPACER

$4.49

$

In Stock, only 1 left!

0

726

Murray 710286

RETAINER

$29.99

$

Usually ships in 2-12 days

0

730

Murray 672290-860

LEVER, DRIVE WIRE

$

$

Currently unavailable

740

Murray 672510MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT

$19.99

$

Usually ships in 2-12 days

0

80-20

Murray 672925

BRKT., HANDLE RH

$

$

Currently unavailable

80-30

Murray 672924

BRKT., HANDLE LH

$

$

Currently unavailable

931

Murray 672296

FRAME, BAGGER

$

$

Currently unavailable

933

Murray 071592MA

SUPPORT, BAG

$

$

Not available

934

Murray 672574MA

BAG

$71.99

$

Usually ships in 2-12 days

0
