21997x50A - Murray 21" Walk-Behind Mower (2003) Mower Housing Assembly (part 2) Parts Diagram

21" Walk-Behind Mower

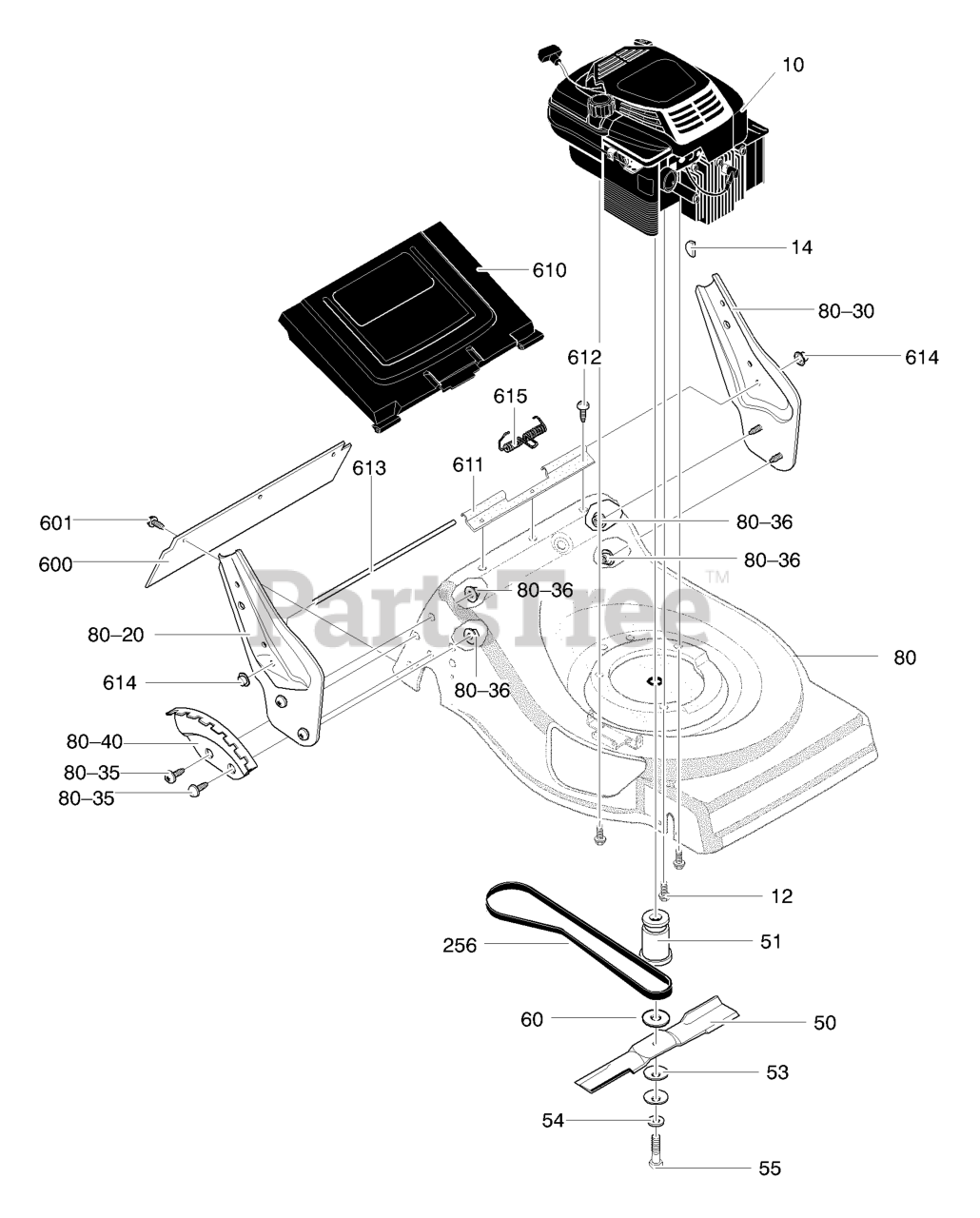

Mower Housing Assembly (part 2) Parts Diagram

  • Title

10

ENGINE

$

$

Not available

12

Murray 47792MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

14

Murray 785341

WOODRUFF KEY

$1.49

$

Usually ships in 2-12 days

0

50

Murray 672089E701MA

BLADE

$29.99

$

In Stock, only 2 left!

0

51

Murray 671058MA

ADAPTER, BLADE

$17.99

$

Usually ships in 2-12 days

0

53

Murray 710210

WASHER

$40.99

$

Usually ships in 2-12 days

0

54

Murray 17X124MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

55

Murray 710201

SCREW

$1.99

$

Usually ships in 2-12 days

0

60

Murray 071470MA

SPACER

$

$

Not available

80

Murray 672274-860

ASSY, FRAME

$

$

Currently unavailable

80-20

Murray 672925E700

BRKT., HANDLE RH

$

$

Currently unavailable

80-30

Murray 672924E700

BRKT., HANDLE LH

$

$

Currently unavailable

80-35

Murray 710277

SCREW

$18.99

$

Usually ships in 2-12 days

0

80-36

Murray 710204

NUT

$5.49

$

Usually ships in 2-12 days

0

80-40

Murray 672276E700

INDEX, HEIGHT ADJ

$

$

Currently unavailable

256

Murray 672271MA

BELT, V

$22.99

$

In Stock, only 1 left!

0

600

Murray 43640MA

DEFLECTOR, REAR

$

$

Not available

601

Murray 26X245MA

SCREW

$4.49

$

In Stock, Qty 6

0

610

Murray 071833

DOOR, REAR 21

$

$

Not available

611

Murray 071410MA

SPACER

$7.99

$

Usually ships in 2-12 days

0

612

Murray 26X259MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

613

Murray 672282 Z

ROD, PIVOT

$

$

Currently unavailable

614

Murray 028X42MA

CAP, PUSH ON

$3.99

$

Usually ships in 2-12 days

0

615

Murray 166X33MA

SPRING, TORSION

$6.99

$

In Stock, only 1 left!

0
