21A-148H063 - Troy-Bilt Tiller (2002) General Assembly Parts Diagram

Tiller

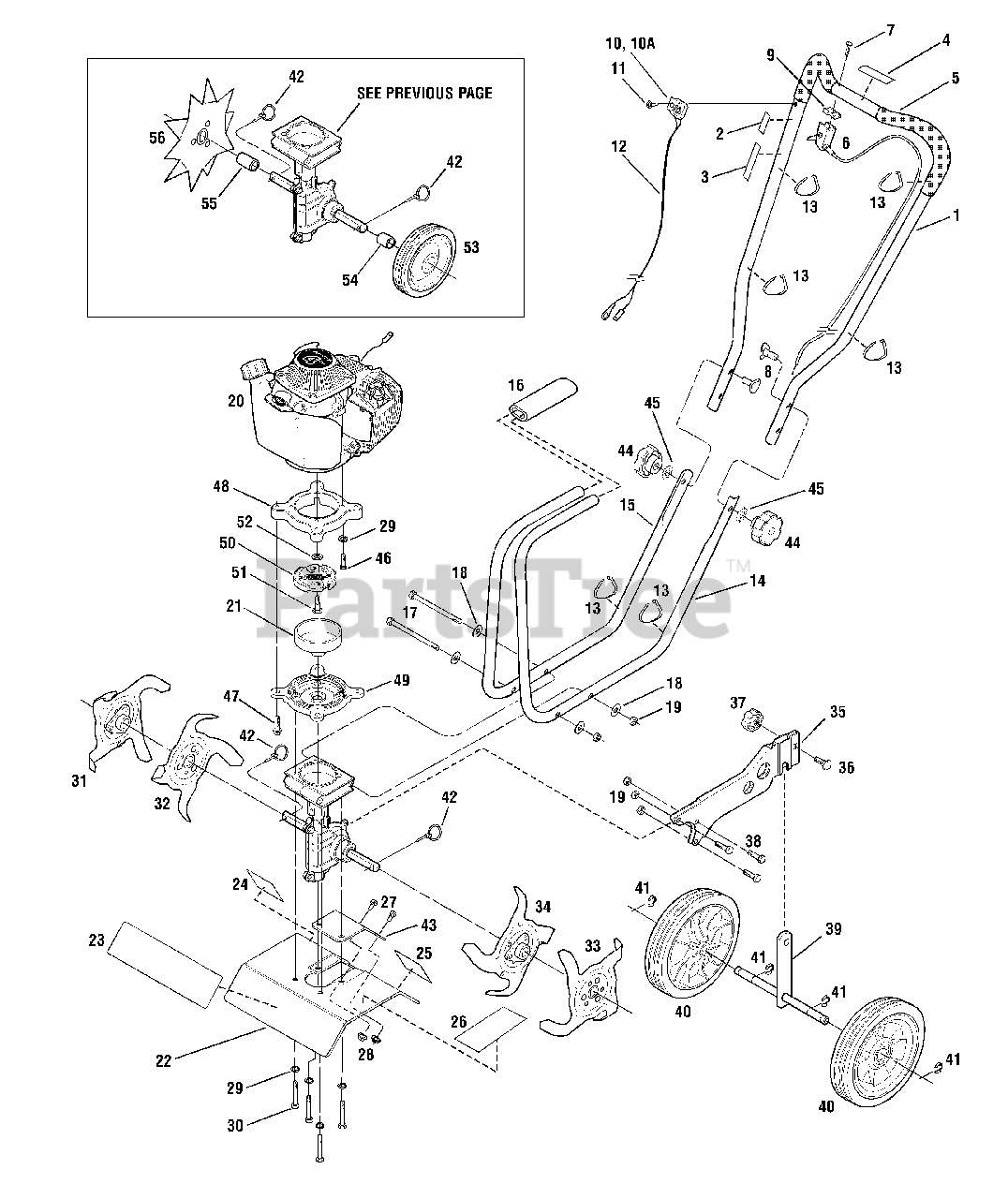

General Assembly Parts Diagram

  • Title

1

MTD 1918087

Handlebar Assy.
(Superseded to 1918087P)

Note: (Incl. Refs. 2, 3, 4 & 5)

$

$

Not available

2

MTD 777I00008

Decal - On/Off Ignition Switch

$

$

Not available

3

MTD 777I00007

Decal - Starting Stabilization

$

$

Not available

4

MTD 777I00009

Decal - Throttle/Tines Control Lever Operation

$

$

Not available

5

MTD 1917451

Handlebar Grip, PVC

$

$

Not available

6

Troy-Bilt 1917755

Throttle Lever and Cable
(Superseded to 1917755P)

$31.99

$

Usually ships in 3-6 days

0

7

MTD 1750608

Pan Hd. Screw, #10-16 x 1-1/2

$

$

Not available

8

Troy-Bilt 1731025

Saddle Hd. Screw, 5/16-18 x 2
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1909775

Spacer, Throttle Lever

$

$

Not available

10

Troy-Bilt 1983718

On/Off Ignition Switch

$

$

Not available

10A

Troy-Bilt 1981012

Bracket - On/Off Ignition Switch
(Superseded to 1981012001)

$

$

Not available

11

MTD 1766503

Phillips Hd. Screw, #12-24

$

$

Not available

12

MTD 1918051

Wire Assy. - On/Off Ignition Switch.

$

$

Not available

13

Troy-Bilt 1763682

Plastic Wire Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

14

MTD 1917576001

Lower Handlebar - Left-Side

$

$

Not available

15

MTD 1917575001

Lower Handlebar - Right-Side

$

$

Not available

16

MTD 1909720

Foam Sleeve

$

$

Not available

17

MTD 1983663

Hex Hd. Screw, 1/4-20 x 5

$

$

Not available

18

Troy-Bilt 736-0463

Flat Washer, 1/4-20

$4.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 1110106

Hex Locknut, 1/4-20

$

$

Not available

20

Engine

Note: Order parts from your local authorized engine dealer. Refer to engine nameplate for model/type number.

$

$

Not available

21

Troy-Bilt 1917531

Clutch Drum and Hub
(Superseded to 718-04039)

$

$

Not available

22

MTD 1918124

Tine Shield

Note: (Incl. Refs. 23, 24, 25 & 26)

$

$

Not available

23

MTD 777D06104

Decal - Logo

$

$

Not available

24

MTD 777S00012

Decal - Warning, Rotating Tines

$

$

Not available

25

MTD 777S30647

Decal - Warning, Hot Surfaces

$

$

Not available

26

MTD 777S00013

Decal - Caution, Operation Hazards

$

$

Not available

27

MTD 1186292

Hex Hd. Screw, #10-24 x 1/2

$

$

Not available

28

Troy-Bilt 1186387

Flange Locknut, #10-24

$

$

Not available

29

Troy-Bilt 736-0329

Lock Washer, 1/4-20
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

30

Troy-Bilt 710-0501

Hex Cap Screw, 1/4-20 x 2

$6.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 1909540

Outer Tine - Right-Hand Side

$

$

Not available

32

Troy-Bilt 1909539

Inner Tine - Right-Hand Side

$37.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1909712

Outer Tine - Left-Hand Side

$

$

Not available

34

Troy-Bilt 1909711

Inner Tine - Left-Hand Side

$

$

Not available

35

Troy-Bilt 1909680001

Wheel Bracket

$

$

Not available

36

Troy-Bilt GW-90077

Carriage Bolt
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1909835

Knob

$

$

Not available

38

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 19

0

39

MTD 1909517001

Axle

$

$

Not available

40

Troy-Bilt 1917754

Wheel
(Superseded to 734-04261)

$19.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt GW-9532

E-Ring

$3.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1185590

Ring Lock Pin

$4.99

$

Usually ships in 3-6 days

0

43

MTD 1981022010

Tine Hood Cover

$

$

Not available

44

MTD 1763767

Knob

$

$

Not available

45

Troy-Bilt 1177038

Lock Washer, 5/16

$

$

Not available

46

MTD GW-90041

Hex. Hd. Screw, M6 x 20

$

$

Not available

47

MTD 1186332

Hex Flange Screw, 5/16-18 x 1-1/4

$

$

Not available

48

MTD 1917530

Adapter Plate - Engine

$

$

Not available

49

Troy-Bilt 1917529

Adapter Plate - Transmission

$

$

Not available

50

Troy-Bilt 1918365

Clutch Assy.
(Superseded to 22000-ZM5-003)

Note: (Incl. Refs. 55 and 56)

$31.99

$

In Stock, only 1 left!

0

51

Hex Hd. Screw, M8

Note: Not available separately.

$

$

Not available

52

Flat Washer, M8 x M17

Note: Not available separately.

$

$

Not available

53

Troy-Bilt 1903777

Edger Wheel

Note: EDGER ATTACHMENT

$16.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 1903778

Bushing - Short

Note: EDGER ATTACHMENT

$

$

Not available

55

Troy-Bilt 1983648

Bushing - Long

Note: EDGER ATTACHMENT

$5.99

$

Usually ships in 3-6 days

0

56

MTD 1915054

Edger Tine

Note: EDGER ATTACHMENT

$

$

Not available

Troy-Bilt OEM-290-263

Power Lawn Rake Attachment

Note: OPTIONAL ATTACHMENTS

$

$

Not available

Troy-Bilt OEM-290-264

Lawn Aerator Attachment

Note: OPTIONAL ATTACHMENTS

$

$

Currently unavailable
