21A-240D731 - Huskee Tiller (2006) (Tractor Supply) General Assembly Parts Diagram

Tiller

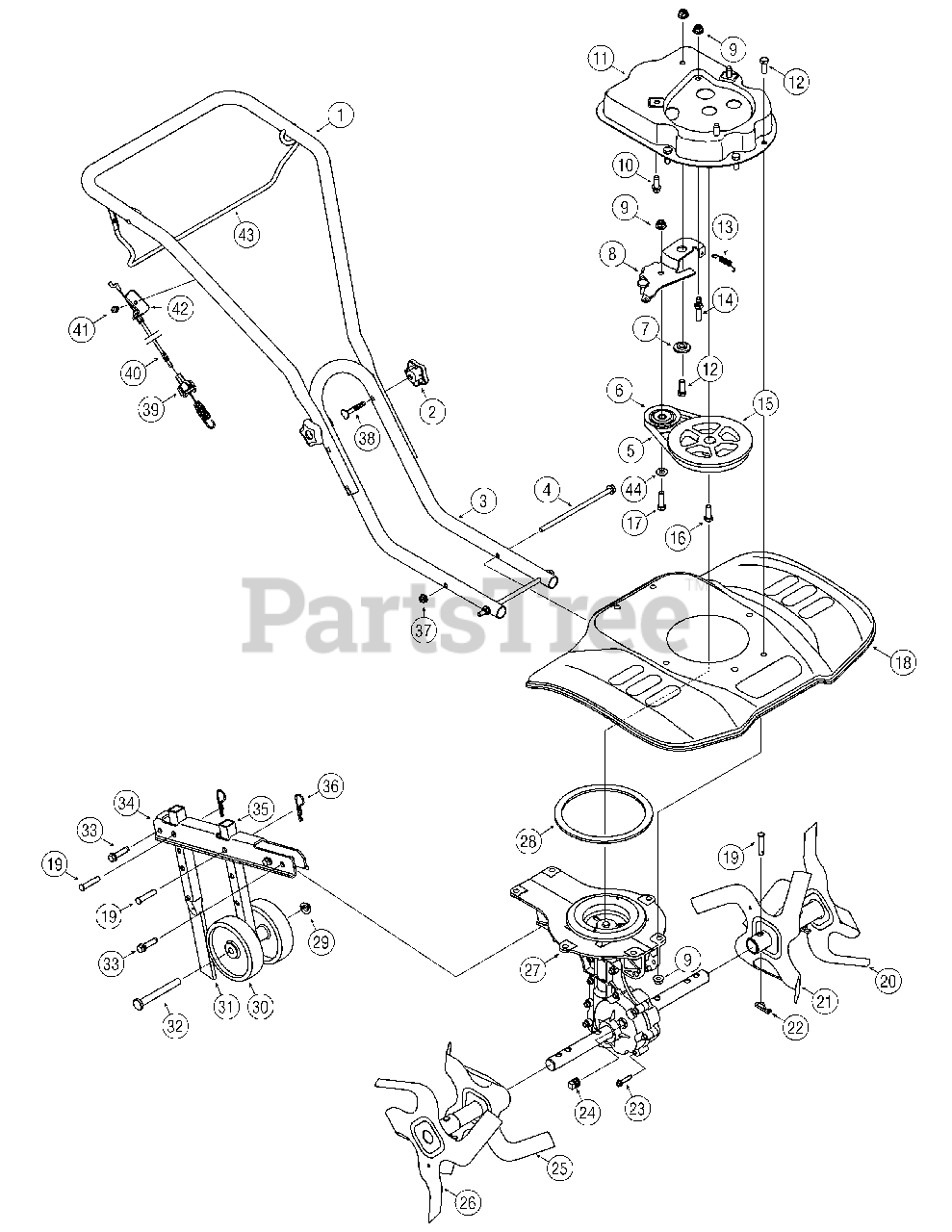

General Assembly Parts Diagram

  • Title

1

MTD 749-04282

Upper Handle

Variations

MTD 749-04282-0637

Upper Loop Handle, Black - POWDER BLACK (0637)

$135.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0638

HANDLE:UPPER:LOOP - MTD/TROY-BILT RED (0638)

$135.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0691

HANDLE:UPPER:LOOP - BLACK JACK (0691)

$135.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0709

HANDLE:UPPER:LOOP - MASTERCRAFT GREEN (0709)

$135.99

$

Usually ships in 3-6 days

0

MTD 749-04282-4044

HANDLE:UPPER:LOOP - CRAFTSMAN RED (4044)

$135.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

2

MTD 720-04072

Star Handle Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

3

MTD 749-04281

Lower Handle

Variations

MTD 749-04281-0638

HANDLE:LOWER - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0637

HANDLE:LOWER - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0691

HANDLE:LOWER - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0709

HANDLE:LOWER - MASTERCRAFT GREEN (0709)

$80.99

$

Usually ships in 3-6 days

0

MTD 749-04281-4044

HANDLE:LOWER - CRAFTSMAN RED (4044)

$80.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

4

MTD 710-04398

Flange Screw 5/16-18 x 7.5

$13.99

$

Usually ships in 3-6 days

0

5

MTD 754-04123

Belt
(Superseded to 954-04123)

$32.99

$

In Stock, Qty 11

0

6

MTD 756-04163

Idler Pulley

$46.99

$

Usually ships in 3-6 days

0

7

MTD 748-04125

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

8

MTD 686-04080

Idler Bracket

$37.99

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Flange Lock Nut: 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0654A

TT Screw 3/8-16 x 1.00

$4.99

$

In Stock, Qty 20+

0

11

MTD 786-04303

Frame

Variations

MTD 786-04303-0638

FRAME - MTD/TROY-BILT RED (0638)

$62.99

$

Usually ships in 3-6 days

0

MTD 786-04303-0691

FRAME - BLACK JACK (0691)

$62.99

$

Usually ships in 3-6 days

0

MTD 786-04303-0709

FRAME - MASTERCRAFT GREEN (0709)

$62.99

$

Usually ships in 3-6 days

0

MTD 786-04303-4044

FRAME - CRAFTSMAN RED (4044)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

12

MTD 710-0514

HH Cap Screw 3/8-16 x 1.

$4.49

$

In Stock, Qty 20+

0

13

MTD 732-0418

Extension Spring

$11.99

$

In Stock, only 1 left!

0

14

MTD 738-04139

Stud 33 x 1.5 x 3/8-16

$3.49

$

Usually ships in 3-6 days

0

15

MTD 756-04217

Flywheel Pulley

$90.99

$

Usually ships in 3-6 days

0

16

MTD 710-0591

HH Cap Screw 3/8-24 x 1.

$4.99

$

Usually ships in 3-6 days

0

17

MTD 710-0520

HH Cap Screw 3/8-16 x 1.

$4.99

$

In Stock, Qty 20+

0

18

MTD 786-04256

Tine Shield 61 cm

Variations

MTD 786-04256-0638

SHIELD-TINE 24" - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0691

SHIELD-TINE 24" - BLACK JACK (0691)

$118.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0709

SHIELD-TINE 24" - MASTERCRAFT GREEN (0709)

$136.99

$

Usually ships in 3-6 days

0

MTD 786-04256-4044

SHIELD-TINE 24" - CRAFTSMAN RED (4044)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

19

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 5

0

20

MTD 642-0005

Outer Tine Assembly LH
(Superseded to 642-0005-0637)

Variations

MTD 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 2 left!

0

$64.99

$

In Stock, only 2 left!

0

21

MTD 642-0003

Inner Tine Assembly LH
(Superseded to 642-0003-0637)

Variations

MTD 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

22

MTD 714-0149B

Internal Cotter Pin

$4.99

$

In Stock, Qty 5

0

23

MTD 710-0809

TT Screw 1/4-20 x 1.25

$7.49

$

In Stock, Qty 7

0

24

MTD GW-9727

Pipe Plug 3/8 NPT
(Superseded to 737-04202)

$7.49

$

Usually ships in 3-6 days

0

25

MTD 642-0002

Inner Tine Assembly RH
(Superseded to 642-0002-0637)

Variations

MTD 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$64.99

$

In Stock, only 2 left!

0

$64.99

$

In Stock, only 2 left!

0

26

MTD 642-0004

Outer Tine Assembly RH
(Superseded to 642-0004-0637)

Variations

MTD 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$64.99

$

In Stock, Qty 5

0

$64.99

$

In Stock, Qty 5

0

27

MTD 918-04276B

Case Assembly

$653.99

$

Usually ships in 3-6 days

0

27

MTD 721-04135

Seal,Oil 23.5mm X 38.2mm X 8mm
(Superseded to 721-04144)

Note: Input Shaft Seal (Not shown)

$6.99

$

Usually ships in 3-6 days

0

27

MTD 921-04036

Seal,Oil 1.00 Shft X 1.500 Bore

Note: Tine Shaft Seal (Not shown)

$19.99

$

In Stock, Qty 20+

0

28

MTD 721-04157

Gasket
(Superseded to 721P04157)

$22.99

$

In Stock, only 2 left!

0

29

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

30

MTD 734-0973

Wheel 5 x 1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

31

MTD 749-04265

Depth Stake Tube

Variations

MTD 749-04265-0638

Depth Stake Tube - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

MTD 749-04265-0691

TUBE:DEPTH STAKE - BLACK JACK (0691)

$50.99

$

Usually ships in 3-6 days

0

MTD 749-04265-4044

TUBE:DEPTH STAKE - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

32

MTD 711-04520

Axle Shaft

$

$

Not available

33

MTD 710-1007

TT Screw 3/8-16 x 1.50

$6.99

$

In Stock, Qty 15

0

34

MTD 786-04296

Wheel Bracket

Variations

MTD 786-04296-0637

BRACKET:WHEEL:DEPT - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

35

MTD 749-04266

Rear Wheel Tube

Variations

MTD 749-04266-0637

TUBE:REAR WHEEL - POWDER BLACK (0637)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

36

MTD 714-3020

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

37

MTD 712-04063

Flange Lock Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0487

Carriage Bolt

$7.49

$

Usually ships in 3-6 days

0

39

MTD 731-05385

Clutch Cable Fitting
(Superseded to 946-04626)

$35.99

$

In Stock, only 2 left!

0

40

MTD 746-04247

Clutch Cable
(Superseded to 946-04626)

$35.99

$

In Stock, only 2 left!

0

41

MTD 710-0599

TT Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

42

MTD 786-04307

Cable Mount Bracket

Variations

MTD 786-04307-0637

BRACKET:MT:CABLE - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

MTD 786-04307-0709

BRACKET:MT:CABLE - MASTERCRAFT GREEN (0709)

$10.99

$

Usually ships in 3-6 days

0

MTD 786-04307-4044

BRACKET:MT:CABLE - CRAFTSMAN RED (4044)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

43

MTD 747-04508

Clutch Bail

Variations

MTD 747-04508-0637

BAIL:CLUTCH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 747-04508-0638

BAIL:CLUTCH - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

MTD 747-04508-0709

BAIL:CLUTCH - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

MTD 747-04508-4044

BAIL:CLUTCH - CRAFTSMAN RED (4044)

$39.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

44

MTD 736-0300

Flat Washer .406 x .875

$4.99

$

In Stock, Qty 20+

0
