21A-24MB752 - Yard Machines Tiller (2015) 1X65TU Crankcase Parts Diagram

Tiller

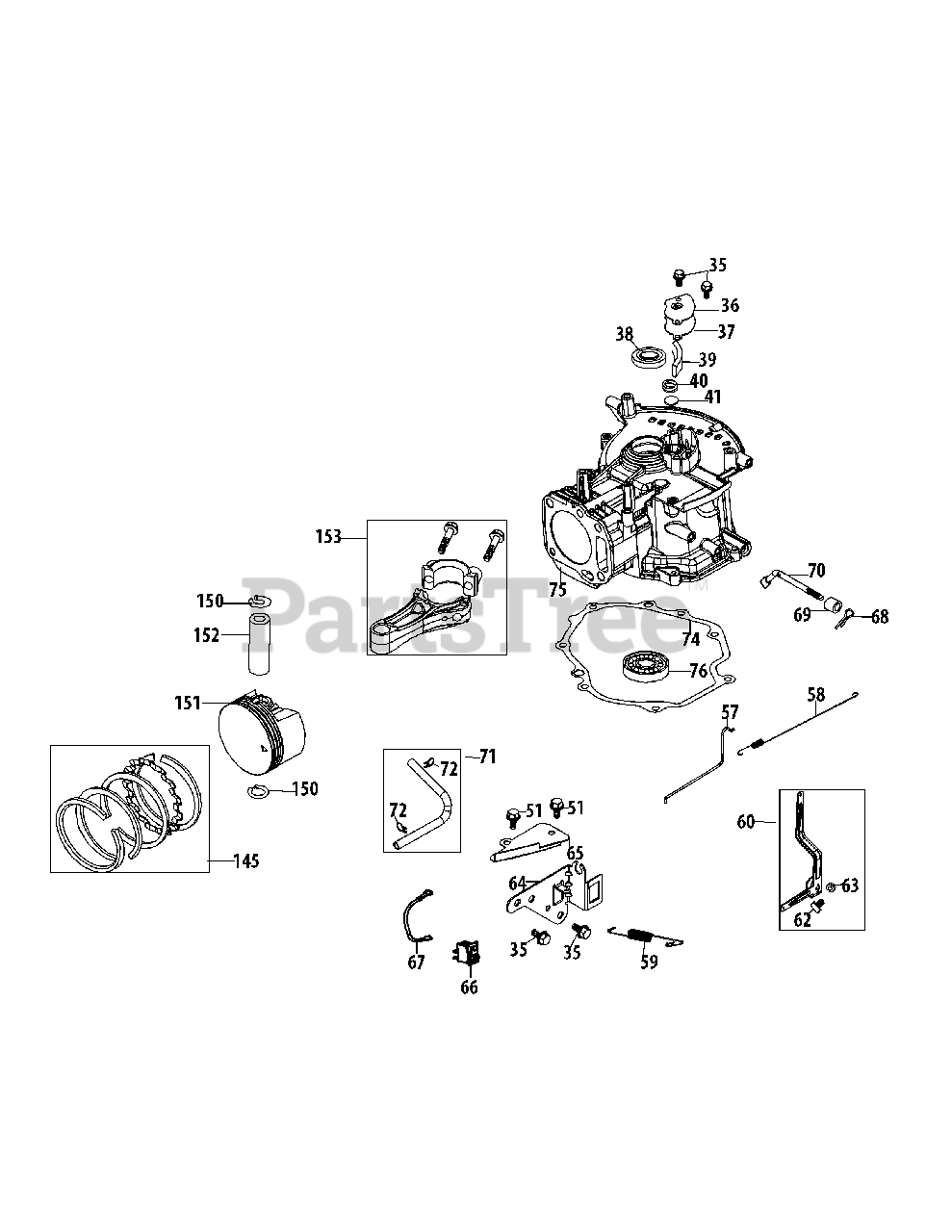

1X65TU Crankcase Parts Diagram

  • Title

35

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, only 2 left!

0

36

MTD 951-14404

Breather Cover Plate

$14.99

$

Usually ships in 3-6 days

0

37

MTD 951-14405

Breather Gasket

$10.99

$

Usually ships in 3-6 days

0

38

MTD 951-11596

Upper Crankshaft Seal

$6.49

$

In Stock, only 1 left!

0

39

MTD 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

40

MTD 732-04718

Breather Valve Spring

$4.49

$

Usually ships in 3-6 days

0

41

MTD 951-11614

Breather Valve

$4.49

$

Usually ships in 3-6 days

0

51

MTD 710-04915

Bolt M6X12 Multi-Purpose

$4.49

$

In Stock, Qty 8

0

57

MTD 951-14410

Throttle Linkage

$8.49

$

In Stock, only 1 left!

0

58

MTD 951-14409

Throttle Linkage Spring

$8.99

$

In Stock, Qty 11

0

59

MTD 951-14411

Governor Spring

$9.99

$

In Stock, only 2 left!

0

60

MTD 951-14412

Governor Arm Assembly

$8.99

$

Usually ships in 3-6 days

0

62

MTD 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

63

MTD 712-05015

Governor Arm Nut M6

$6.99

$

In Stock, only 3 left!

0

64

MTD 951-14413

Component Bracket

$14.99

$

Usually ships in 3-6 days

0

65

MTD 951-14605

Air Vane Cover Plate

$6.49

$

Usually ships in 3-6 days

0

66

MTD 725-06174

Ignition Switch
(Superseded to 925-06174)

$12.99

$

Usually ships in 3-6 days

0

67

MTD 725-06175

Ignition Switch Ground Wire
(Superseded to 925-06175)

$5.99

$

Usually ships in 3-6 days

0

68

MTD 714-04078

Governor Arm Shaft Cotter Pin

$4.49

$

Usually ships in 3-6 days

0

69

MTD 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

Usually ships in 3-6 days

0

70

MTD 951-14416

Governor Arm Shaft

$12.99

$

Usually ships in 3-6 days

0

71

MTD 951-11520

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

72

MTD 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

74

MTD 951-14415

Crankcase Cover Gasket

$14.99

$

In Stock, only 1 left!

0

75

MTD 751-14635

Crankcase
(Superseded to 951-14635)

$191.99

$

Usually ships in 3-6 days

0

76

MTD 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

145

MTD 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$39.99

$

In Stock, only 2 left!

0

150

MTD 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

151

MTD 951-14434

Piston
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

152

MTD 951-14435

Piston Pin

$12.99

$

Usually ships in 3-6 days

0

153

MTD 951-14436

Connecting Rod Assembly

$

$

Not available
