21A-24MB752 - Yard Machines Tiller (2016) Forward Drive Assembly Parts Diagram

Tiller

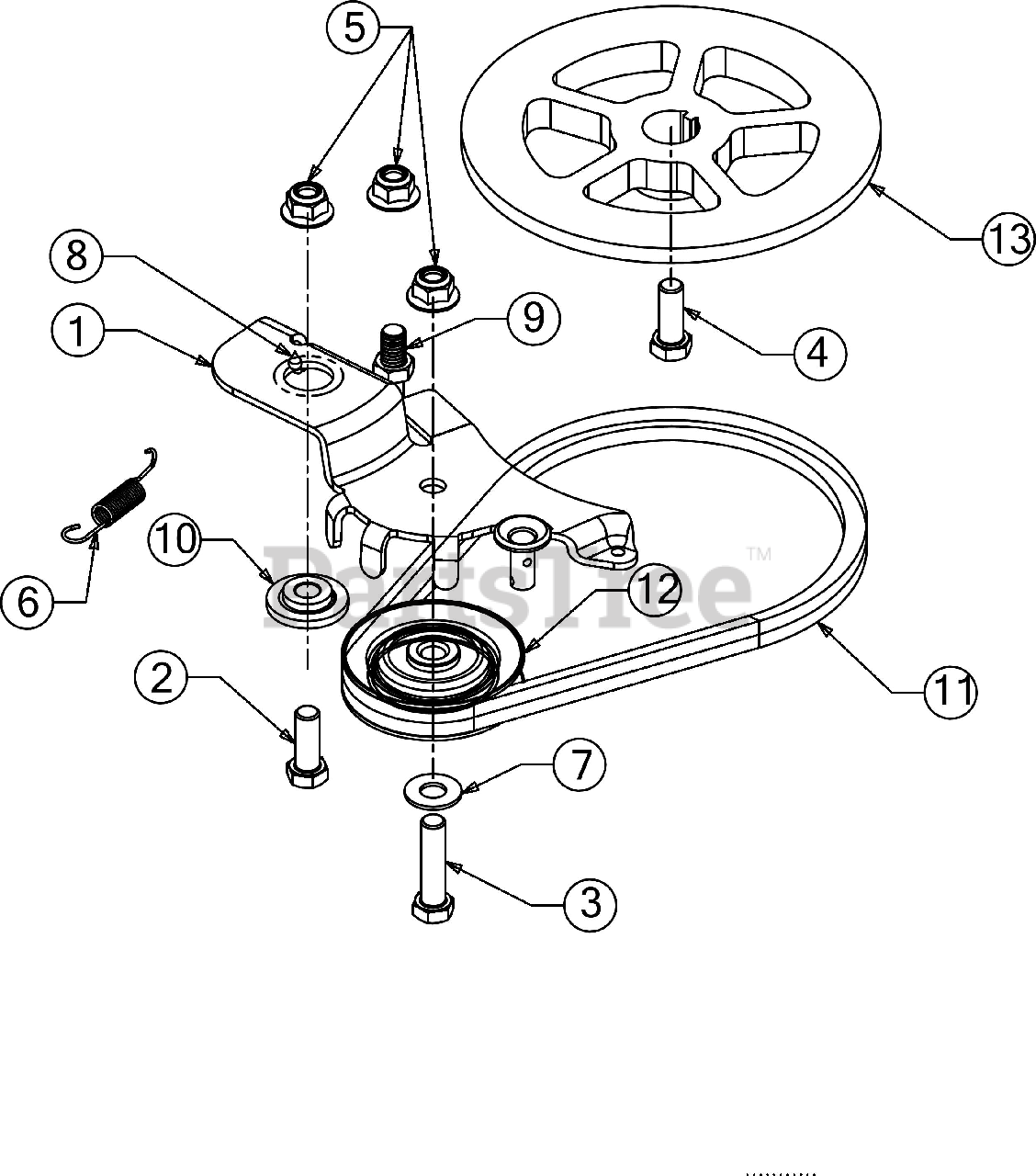

Forward Drive Assembly Parts Diagram

  • Title

1

MTD 686-04080

IDLER ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

1

MTD 786-04309

IDLER BRACKET
(Superseded to 686-04080)

$37.99

$

Usually ships in 3-6 days

0

2

MTD 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0520

SCREW 3/8-16 X 1.50

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0591

SCREW 3/8-24 X 1.00 GR5

$4.99

$

Usually ships in 3-6 days

0

5

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

6

MTD 732-0418

SPRING

$11.99

$

In Stock, only 2 left!

0

7

MTD 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.99

$

In Stock, Qty 20+

0

8

N/A

GREASE

Note: (Purchase Locally)

$

$

Not available

9

MTD 738-04139

STUD: 33 X 1.75 3/8-16

$3.49

$

Usually ships in 3-6 days

0

10

MTD 748-04125

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

11

MTD 954-04123

BELT 1/2 X 4L X 24.82

$32.99

$

In Stock, Qty 11

0

12

MTD 756-04163

V-IDLER PULLEY

$46.99

$

Usually ships in 3-6 days

0

13

MTD 756-04217

FLYWHEEL PULLEY

$90.99

$

Usually ships in 3-6 days

0
