21A-24MK000 - Yard Machines Tiller (2010) General Assembly Parts Diagram

Tiller

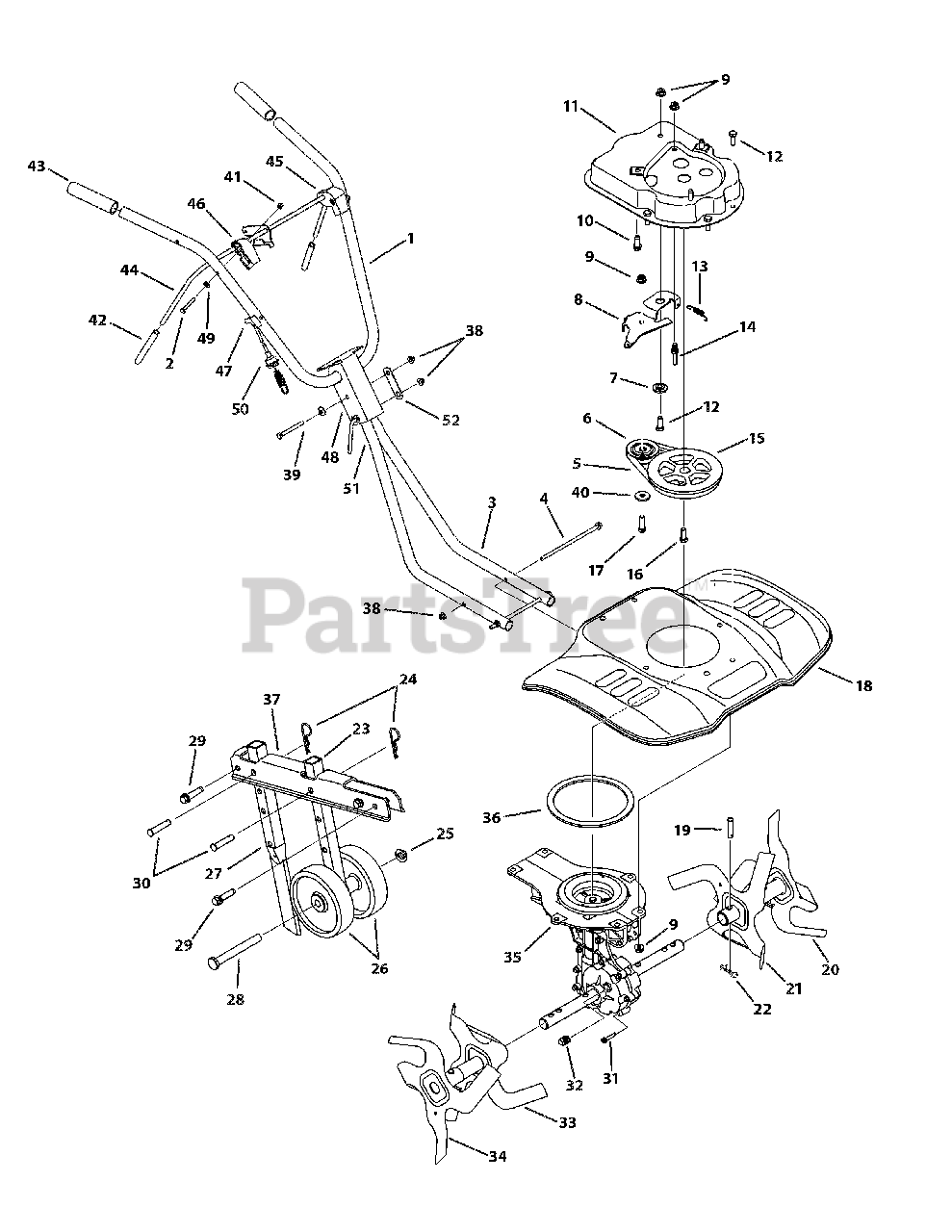

General Assembly Parts Diagram

  • Title

1

MTD 649-04030-0638

Upper Handle
(Superseded to 649-04030-0637)

$102.99

$

Usually ships in 3-6 days

0

2

MTD 710-0136

Hex Head Cap Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

3

MTD 649-04029-0638

Lower Handle

$82.99

$

Usually ships in 3-6 days

0

4

MTD 710-04398

Flange Screw, 5/16-18 x 7.5, GR5

$11.99

$

Usually ships in 3-6 days

0

5

MTD 954-04123

V-Belt

$30.99

$

In Stock, Qty 20+

0

6

MTD 756-04163

Idler Pulley

$41.99

$

Usually ships in 3-6 days

0

7

MTD 748-04125

Shoulder Spacer

$3.99

$

Usually ships in 3-6 days

0

8

MTD 686-04080

Idler Bracket

$33.99

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0654A

Self Tapping Screw, 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

11

MTD 786-04303-0638

Belt Cover

$54.99

$

Usually ships in 3-6 days

0

12

MTD 710-0514

Hex Head Cap Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

13

MTD 732-0418

Extension Spring

$9.99

$

In Stock, only 1 left!

0

14

MTD 738-04139

Stud, 33 x 1.5, 3/8-16

$2.99

$

Usually ships in 3-6 days

0

15

MTD 756-04217

Flywheel Pulley

$79.99

$

Usually ships in 3-6 days

0

16

MTD 710-0591

Hex Head Cap Screw, 3/8-24 x 1.00

$4.49

$

In Stock, only 1 left!

0

17

MTD 710-0520

Hex Head Cap Screw, 3/8-16 x 1.55

$4.49

$

In Stock, Qty 20+

0

18

MTD 786-04256-0638

Tine Shield 61 cm

$128.99

$

Usually ships in 3-6 days

0

19

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

20

MTD 642-0005-0637

Outer Tine Assembly LH

$60.99

$

In Stock, Qty 6

0

21

MTD 642-0003-0637

Inner Tine Assembly LH

$60.99

$

In Stock, Qty 15

0

22

MTD 714-04043

Cotter Pin, Bow Tie

$4.49

$

In Stock, Qty 20+

0

23

MTD 749-04266-0637

Rear Wheel Tube

$92.99

$

Usually ships in 3-6 days

0

24

MTD 714-3020

Cotter Pin

$3.99

$

In Stock, Qty 9

0

25

MTD 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

26

MTD 734-0973

Wheel 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

27

MTD 749-04265-0638

Depth Stake Tube
(Superseded to 749-04265-0691)

$44.99

$

Usually ships in 3-6 days

0

28

MTD 711-04520

Axle Shaft

$

$

Not available

29

MTD 710-1007

Self Tapping Screw, 3/8-16 x 1.50

$5.99

$

In Stock, Qty 7

0

30

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0809

Self Tapping Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

32

MTD 737-04272

Pipe Plug, 1/4-18 NPT

$3.49

$

Usually ships in 3-6 days

0

33

MTD 642-0002-0637

Inner Tine Assembly RH

$60.99

$

In Stock, Qty 6

0

34

MTD 642-0004-0637

Outer Tine Assembly RH

$60.99

$

In Stock, Qty 17

0

35

MTD 918-04276B

Case Assembly

$573.99

$

Usually ships in 3-6 days

0

35

MTD 721-04135

Seal,Oil 23.5mm X 38.2mm X 8mm
(Superseded to 721-04144)

Note: Input Shaft Seal (Not shown)

$5.99

$

In Stock, only 2 left!

0

35

MTD 921-04036

Seal,Oil 1.00 Shft X 1.500 Bore

Note: Tine Shaft Seal (Not shown)

$17.99

$

In Stock, Qty 20+

0

36

MTD 721-04157

Gasket
(Superseded to 721P04157)

$19.99

$

Usually ships in 3-6 days

0

37

MTD 786-04296-0637

Wheel Bracket

$41.99

$

Usually ships in 3-6 days

0

38

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-0189

Hex Head Cap Screw, 5/16-18 x 3.00

$5.99

$

In Stock, Qty 5

0

40

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

41

MTD 712-0324

Hex Lock Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

42

MTD 720-0269

Handle Grip

$4.49

$

In Stock, only 4 left!

0

43

MTD 720-0274

Grip, 1.0 ID x 5.0 LG

$10.99

$

In Stock, Qty 6

0

44

MTD 647-04047-0638

Clutch Bail

$45.99

$

Usually ships in 3-6 days

0

45

MTD 731-05095B

Bail Holder LH

$13.99

$

Usually ships in 3-6 days

0

46

MTD 731-05096B

Bail Holder RH

$10.99

$

Usually ships in 3-6 days

0

47

MTD 731-05272

Handle Fitting

$19.99

$

Usually ships in 3-6 days

0

48

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

49

MTD 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

50

MTD 946-04663

Clutch Cable

$75.99

$

Usually ships in 3-6 days

0

51

MTD 786-0340A

Handle Crank
(Superseded to 786-0340B)

$17.99

$

Usually ships in 3-6 days

0

52

MTD 786-0341

Retainer Bracket

$8.99

$

Usually ships in 3-6 days

0
