21A-250H065 - Bolens Tiller (2009) General Assembly Parts Diagram

Tiller

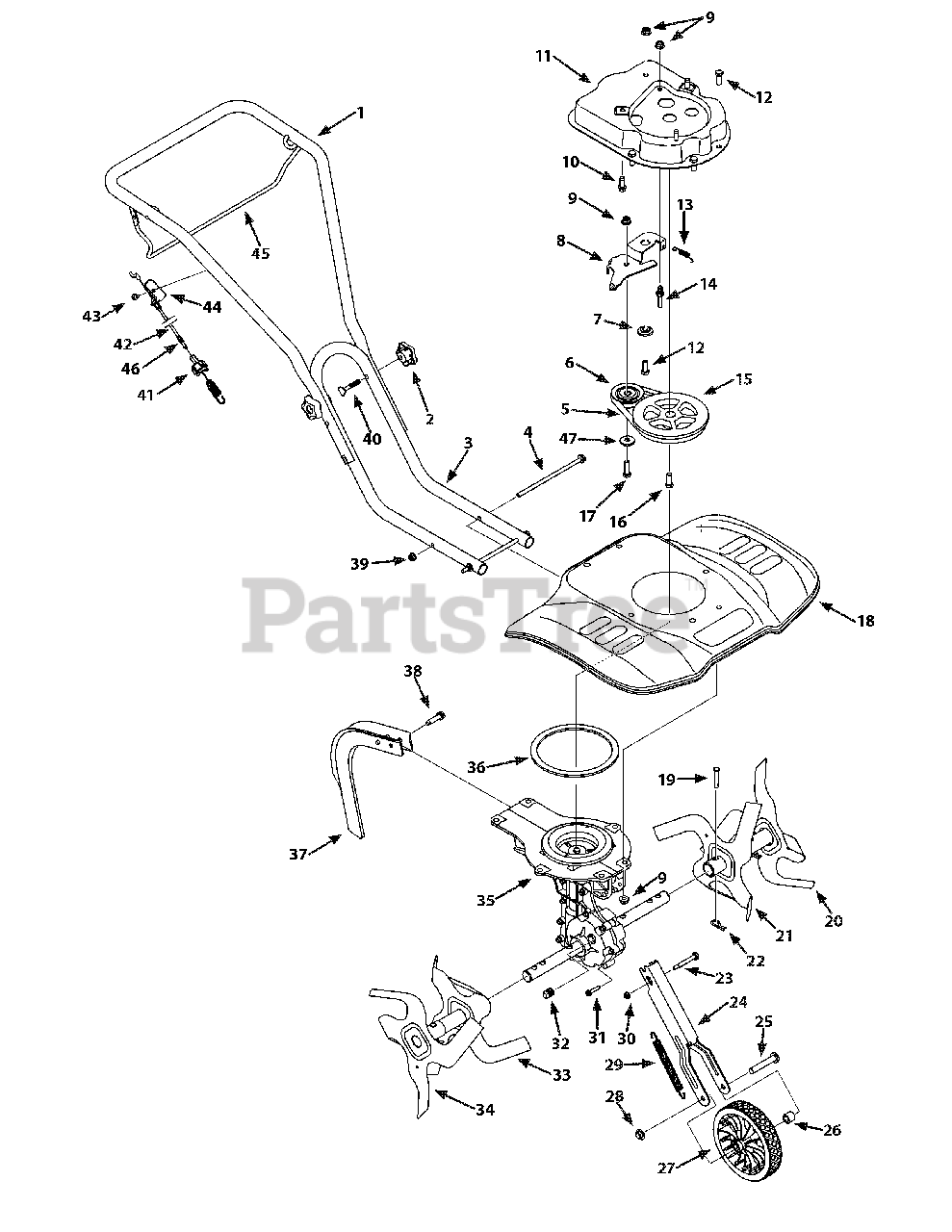

General Assembly Parts Diagram

  • Title

1

MTD 749-04282-0637

Upper Handle

$118.99

$

Usually ships in 3-6 days

0

2

MTD 720-04072

Star Handle Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

3

MTD 749-04281-0637

Lower Handle

$70.99

$

Usually ships in 3-6 days

0

4

MTD 710-04398

Flange Screw: 5.16-18:7.5:GR5

$11.99

$

Usually ships in 3-6 days

0

5

MTD 954-04123

V-Belt

$30.99

$

In Stock, Qty 20+

0

6

MTD 756-04163

Idler Pulley

$41.99

$

Usually ships in 3-6 days

0

7

MTD 748-04125

Shoulder Spacer

$3.99

$

Usually ships in 3-6 days

0

8

MTD 686-04080

Idler Bracket

$33.99

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Flange Lock Nut: 3.8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0654A

TT Screw: 3.8-16:1.00

$3.99

$

In Stock, only 4 left!

0

11

MTD 786-04303-0709

Belt Cover

$54.99

$

Usually ships in 3-6 days

0

12

MTD 710-0514

HH Cap Screw: 3.8-16:1.00

$3.99

$

In Stock, Qty 20+

0

13

MTD 732-0418

Extension Spring

$9.99

$

In Stock, only 1 left!

0

14

MTD 738-04139

Stud: 33 x 1.5: 3.8-16

$2.99

$

Usually ships in 3-6 days

0

15

MTD 756-04217

Flywheel Pulley

$79.99

$

Usually ships in 3-6 days

0

16

MTD 710-0591

HH Cap Screw: 3.8-24:1.00

$4.49

$

In Stock, only 1 left!

0

17

MTD 710-0520

HH Cap Screw: 3.8-16:1.55

$4.49

$

In Stock, Qty 20+

0

18

MTD 786-04256-0709

Tine Shield 61 cm

$119.99

$

Usually ships in 3-6 days

0

19

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

20

MTD 642-0005-0637

Outer Tine Assembly LH

$60.99

$

In Stock, Qty 6

0

21

MTD 642-0003-0637

Inner Tine Assembly LH

$60.99

$

In Stock, Qty 15

0

22

MTD 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

23

MTD 738-04172

Shoulder Screw: .31x2:1.4-20

$

$

Not available

24

MTD 786-04299-0637

Front Wheel Bracket
(Superseded to 786-04232-0637)

$30.99

$

Usually ships in 3-6 days

0

24

MTD 753-06219

Front Wheel Axle Hardware Kit

$

$

Not available

25

MTD 911-0833B

Clevis Pin

$11.99

$

In Stock, only 3 left!

0

26

MTD 750-04578

Spacer

$8.49

$

Usually ships in 3-6 days

0

27

MTD 734-04063

Wheel 7x1.5 Star-Diam
(Superseded to 734-04063B)

$16.99

$

In Stock, Qty 20+

0

28

MTD 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

29

MTD 932-0384

Extension Spring

$13.99

$

In Stock, Qty 20+

0

30

MTD 712-04064

Flange Lock Nut: 1.4-20

$3.99

$

In Stock, Qty 20+

0

31

MTD 710-0809

TT Screw: 1.4-20:1.25

$6.49

$

In Stock, Qty 20+

0

32

MTD 737-04202

Pipe Plug: 3.8 NPT

$6.49

$

Usually ships in 3-6 days

0

33

MTD 642-0002-0637

Inner Tine Assembly RH

$60.99

$

In Stock, Qty 6

0

34

MTD 642-0004-0637

Outer Tine Assembly RH

$60.99

$

In Stock, Qty 17

0

35

MTD 918-04276B

Case Assembly

$573.99

$

Usually ships in 3-6 days

0

35

MTD 721-04135

Seal,Oil 23.5mm X 38.2mm X 8mm
(Superseded to 721-04144)

Note: Input Shaft Seal (Not shown)

$5.99

$

In Stock, only 2 left!

0

35

MTD 921-04036

Seal,Oil 1.00 Shft X 1.500 Bore

Note: Tine Shaft Seal (Not shown)

$17.99

$

In Stock, Qty 20+

0

36

MTD 721-04157

Gasket
(Superseded to 721P04157)

$19.99

$

Usually ships in 3-6 days

0

37

MTD 686-04072-0709

Depth Stake Assembly

$55.99

$

Usually ships in 3-6 days

0

38

MTD 710-1007

TT Screw: 3.8-16:1.50

$5.99

$

In Stock, Qty 7

0

39

MTD 712-04063

Flange Lock Nut: 5.16-18

$3.99

$

In Stock, Qty 20+

0

40

MTD 710-0487

Carriage Bolt

$6.99

$

Usually ships in 3-6 days

0

41

MTD 731-05385

Clutch Cable Fitting
(Superseded to 946-04626)

$30.99

$

In Stock, Qty 14

0

42

MTD 746-04247

Clutch Cable
(Superseded to 946-04247)

$47.99

$

In Stock, only 2 left!

0

43

MTD 710-0599

TT Screw: 1.4-20:.50

$3.99

$

In Stock, Qty 20+

0

44

MTD 786-04307-0637

Cable Mount Bracket

$9.99

$

Usually ships in 3-6 days

0

45

MTD 747-04508-0637

Clutch Bail

$34.99

$

In Stock, only 1 left!

0

46

MTD 716-0208

Retaining Ring

$6.49

$

In Stock, only 1 left!

0

47

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0
