21A-303C000 - Yard Machines Tiller (2003) Chain Case & Tines Parts Diagram

Tiller

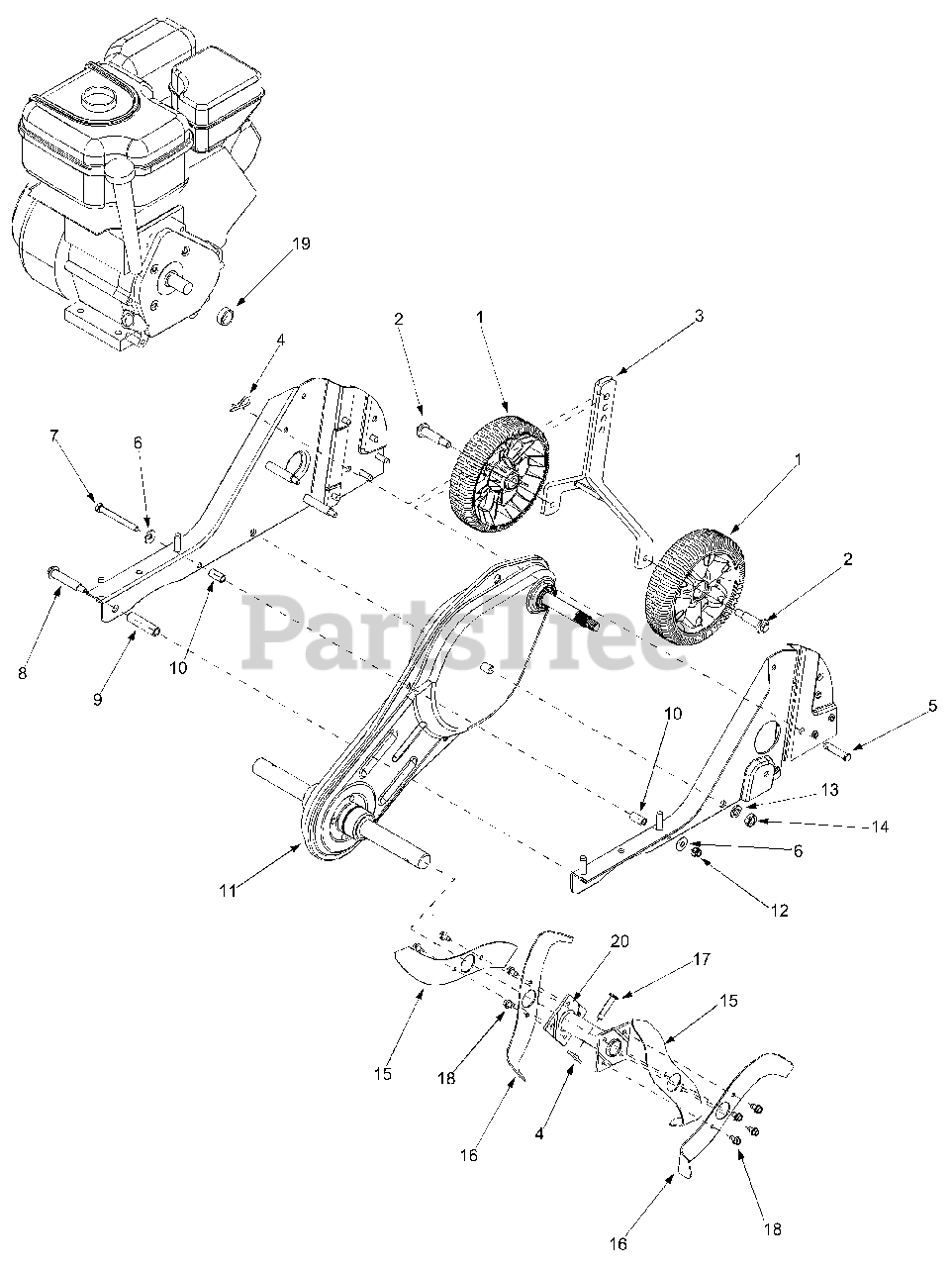

Chain Case & Tines Parts Diagram

  • Title

1

MTD 734-1988

Wheel 7 x 1.8

$18.99

$

In Stock, Qty 10

0

2

MTD 738-0929

Shoulder Screw

$7.49

$

In Stock, only 2 left!

0

3

MTD 686-0081A

Wheel Bracket Assembly
(Superseded to 686-0081A-0637)

Variations

MTD 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$82.99

$

In Stock, only 4 left!

0

$82.99

$

In Stock, only 4 left!

0

4

MTD 714-0149B

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-0415

Clevis Pin

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0242

Bell Washer .340 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0189

Hex Cap Screw 5/16-18 x 3.0

$5.99

$

In Stock, Qty 5

0

8

MTD 738-0934

Shoulder Screw
(Superseded to 738-0934A)

$7.49

$

Usually ships in 3-6 days

0

9

MTD 750-0273

Spacer .51 ID x .69 OD x 1.97Lg

$

$

Not available

10

MTD 750-0470

Spacer .47 OD x .96Lg

$6.49

$

Usually ships in 3-6 days

0

11

MTD 686-0189

Chain Case Assembly

$

$

Not available

12

MTD 712-0429

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0171

Lock Washer 7/16

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

15

MTD 04922

Tine Blade 9.5" RH

Variations

MTD 04922-0637

Tine Blade R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 04923

Tine Blade 9.5" LH
(Superseded to 04923-0637)

Variations

MTD 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

17

MTD 711-0702

Clevis Pin

$

$

Not available

18

MTD 710-0599

Hex Washer Screw 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

19

MTD 750-0456

Spacer .790 ID x .347 Lg

$3.99

$

In Stock, Qty 20+

0

20

MTD 04918

Tine Adapter Assembly
(Superseded to 04918-0637)

Variations

MTD 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$
