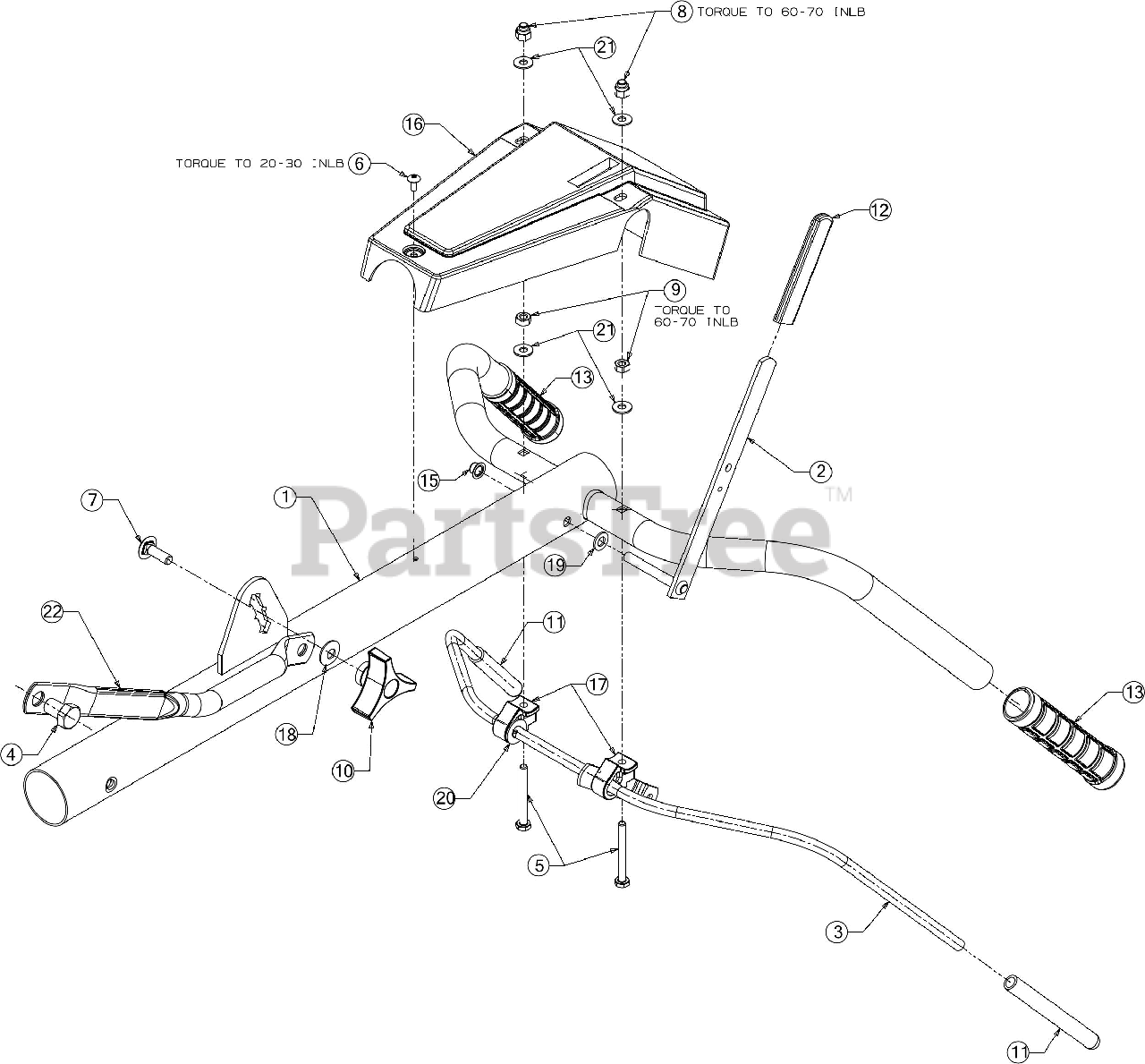

21A-39M8711 - Troy-Bilt Colt XP Front-Tine Tiller (2016) Handle Assembly Parts Diagram

Colt XP Front-Tine Tiller

Handle Assembly Parts Diagram

  • Title

1

Troy-Bilt 649-04040-4033

HANDLE ASSEMBLY

$121.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 686-0014C-0637

REVERSE HANDLE ASSEMBLY

$19.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 686-0083-0637

CLUTCH HANDLE ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-06053

BOLT 1/2-20 X .75 GR5

$5.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0641

SCREW 1/4-20 X 2.25 GR5

$3.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-0779A

SCREW #10-16 X .500

$4.49

$

In Stock, Qty 12

0

7

Troy-Bilt 710-1236

SCREW 5/16-18 X 1.00

$6.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

9

Troy-Bilt 712-3006

HEX NUT

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 720-0195

HANDLE KNOB

$14.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 720-0269

CLUTCH GRIP

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 720-0270A

REVERSE LEVER GRIP

$7.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 720-0270A

GRIP-REVERSE LEVER

$7.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 726-0135

SPEED NUT

$6.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 731-1600

HANDLE COVER PANE

$51.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 931-1645B

HANDLE CLUTCH HOLDER

$15.99

$

In Stock, Qty 5

0

18

Troy-Bilt 736-0242

BELL WASHER .337 X.867 X .057

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 936-0264

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

20

Troy-Bilt 936-0300

FLAT WASHER
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

22

Troy-Bilt 749-1401A-4033

HANDLE BRACE

$38.99

$

Usually ships in 3-6 days
