21A-634F063 - Troy-Bilt Rear-Tine Tiller (2003) Drag Bar Parts Diagram

Rear-Tine Tiller

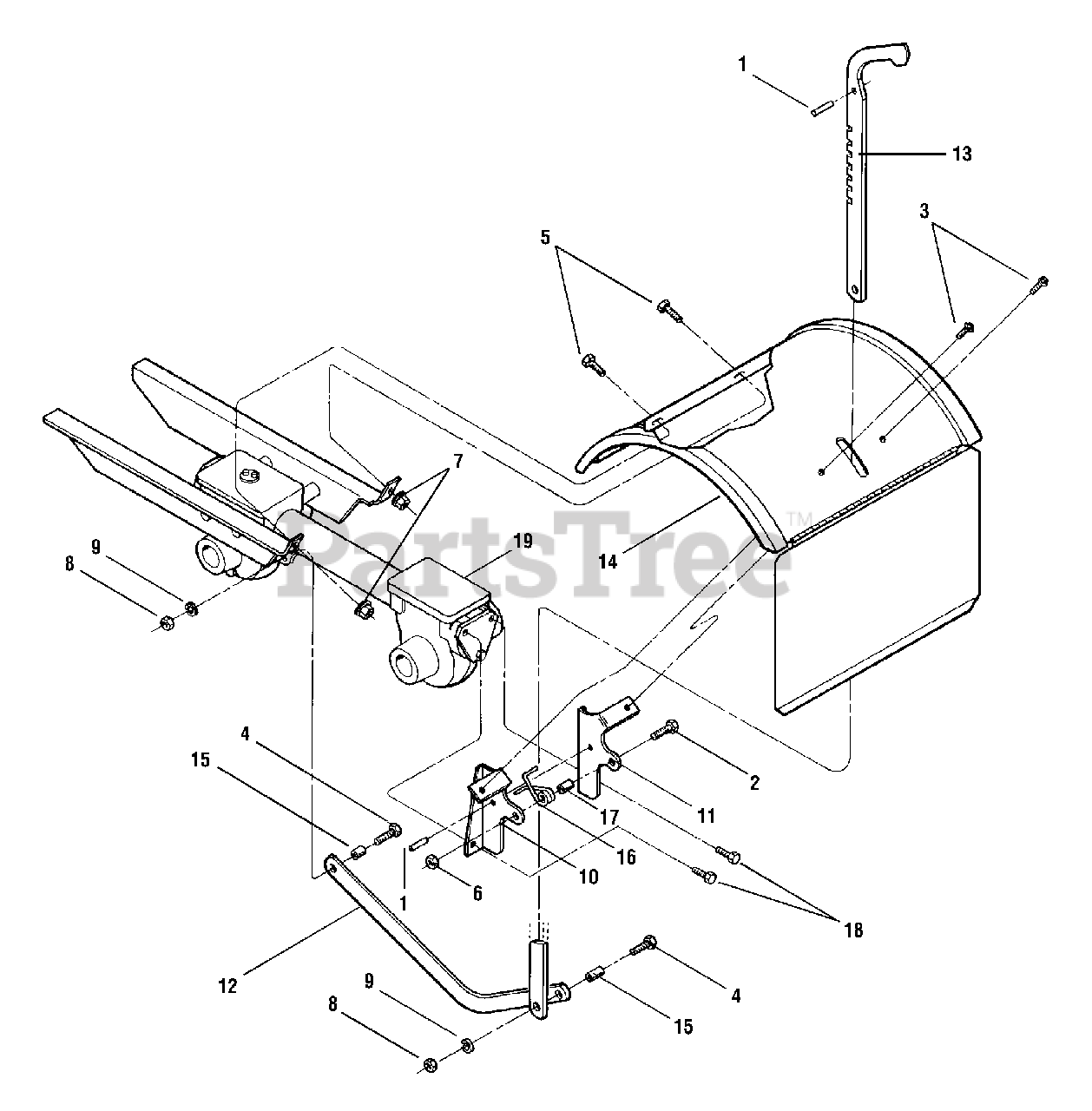

Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 1185469

Spirol Pin
(Superseded to 715-04034)

$7.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0874

Hex Hd. Screw, 5/16-18 x 1-1/4

$7.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-3039

Hex Hd. Screw, 5/16-18 x 1/2

$

$

Not available

6

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-3009

Hex Nut, 5/16-18

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1916120001

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1916119001

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

12

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$38.99

$

In Stock, Qty 5

0

13

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$70.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1917594

Tine Hood Assembly
(Superseded to 686-04077B-0638)

Note: For Model 634F/634B

$207.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1904572

Tine Hood Assembly
(Superseded to 686-04076A-0638)

Note: For Model 630C

$94.99

$

In Stock, Qty 5

0

15

Troy-Bilt GW-55088

Bushing

$

$

Not available

16

Troy-Bilt GW-9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt GW-9534

Spacer

$4.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-04048

Hex Hd. Flange Screw, 5/16-18 x 1

$5.49

$

In Stock, Qty 6

0

19

Troy-Bilt 618-04000

Transmission Assembly
(Superseded to 753-05332)

Note: For Model 634F/634B

$1151.99

$

Usually ships in 3-6 days

0

MTD 618-04001

Transmission Assembly

Note: For Model 630C

$

$

Not available
