21A-634K766 - Troy-Bilt FRT Rear-Tine Tiller (2005) Transmission Housing Parts Diagram

FRT Rear-Tine Tiller

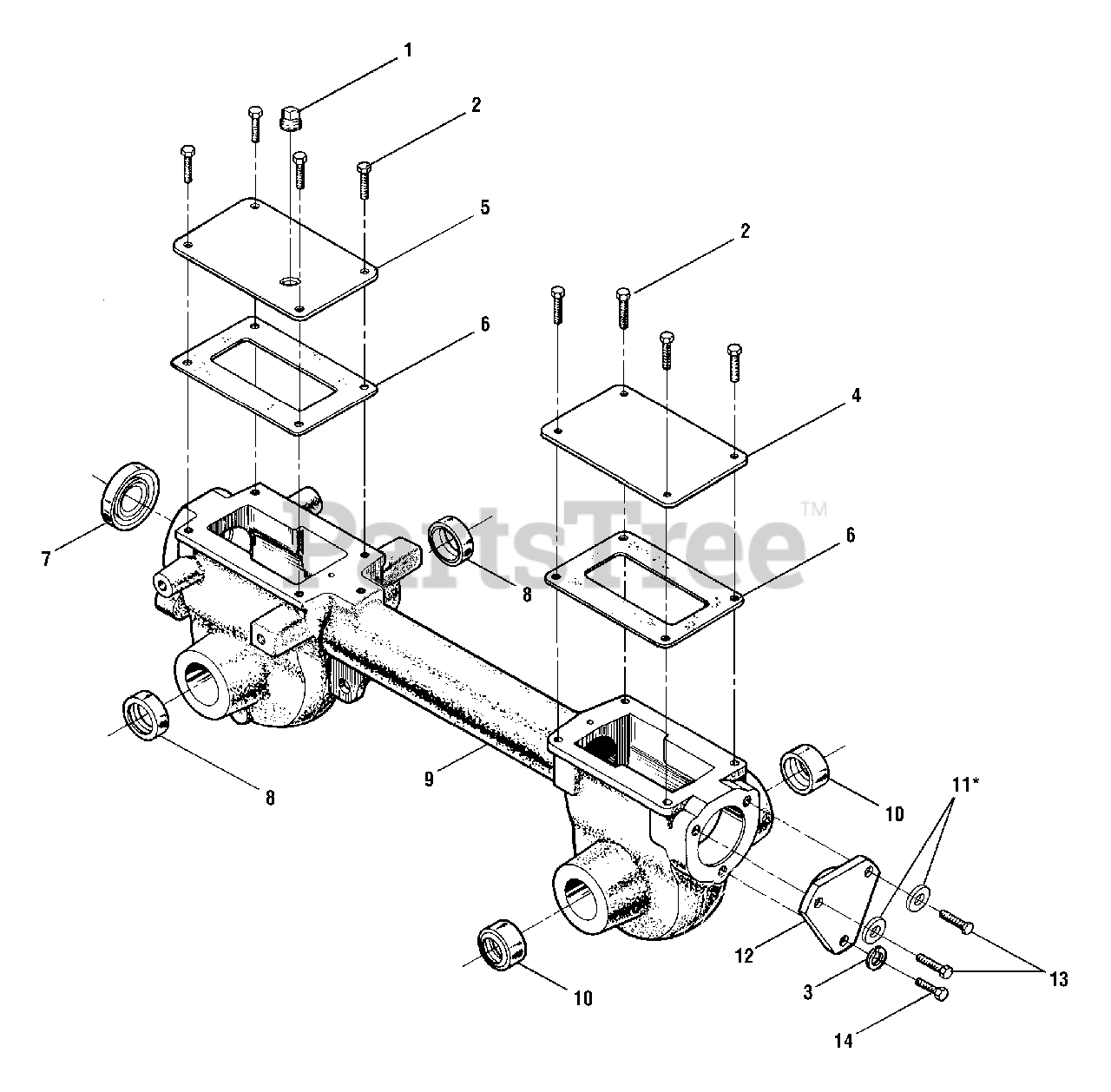

Transmission Housing Parts Diagram

  • Title

1

Troy-Bilt GW-9727

Plug, Transmission Oil Fill
(Superseded to 737-04202)

$6.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04049

Hex Hd. Flange Screw, 5/16-18 x 5/8,Gr. 5

$4.49

$

In Stock, Qty 14

0

3

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1918377

Rear Cover, Transmission
(Superseded to 1916109001)

$

$

Not available

5

Troy-Bilt 1916641

Front Cover, Transmission
(Superseded to 786-04359)

$23.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-50032

Gasket, Housing Cover
(Superseded to 921-04229)

$6.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 721-04030

Oil Seal, Drive Shaft
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 721-04031

Oil Seal, Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 619-04013

Transmission Housing Assembly
(Superseded to 919-04013)

$211.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 721-04036

Oil Seal, Tine Shaft
(Superseded to 921-04036)

$17.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-3008

Washer, Flat,.344 x.750 x.120
(Superseded to 936-3008)

Note: Included with transmission when purchased as an assembly only. Remove and discard when installing the transmission on tiller.

$6.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 718-04008

Rear Bearing Cap
(Superseded to 918-04435)

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-04048

Hex Hd. Flange Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 7

0

14

Troy-Bilt 710-3008

Hex Hd. Flange Screw, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0
