21A-644H766 - Troy-Bilt Rear-Tine Tiller (2004) Drag Bar Parts Diagram

Rear-Tine Tiller

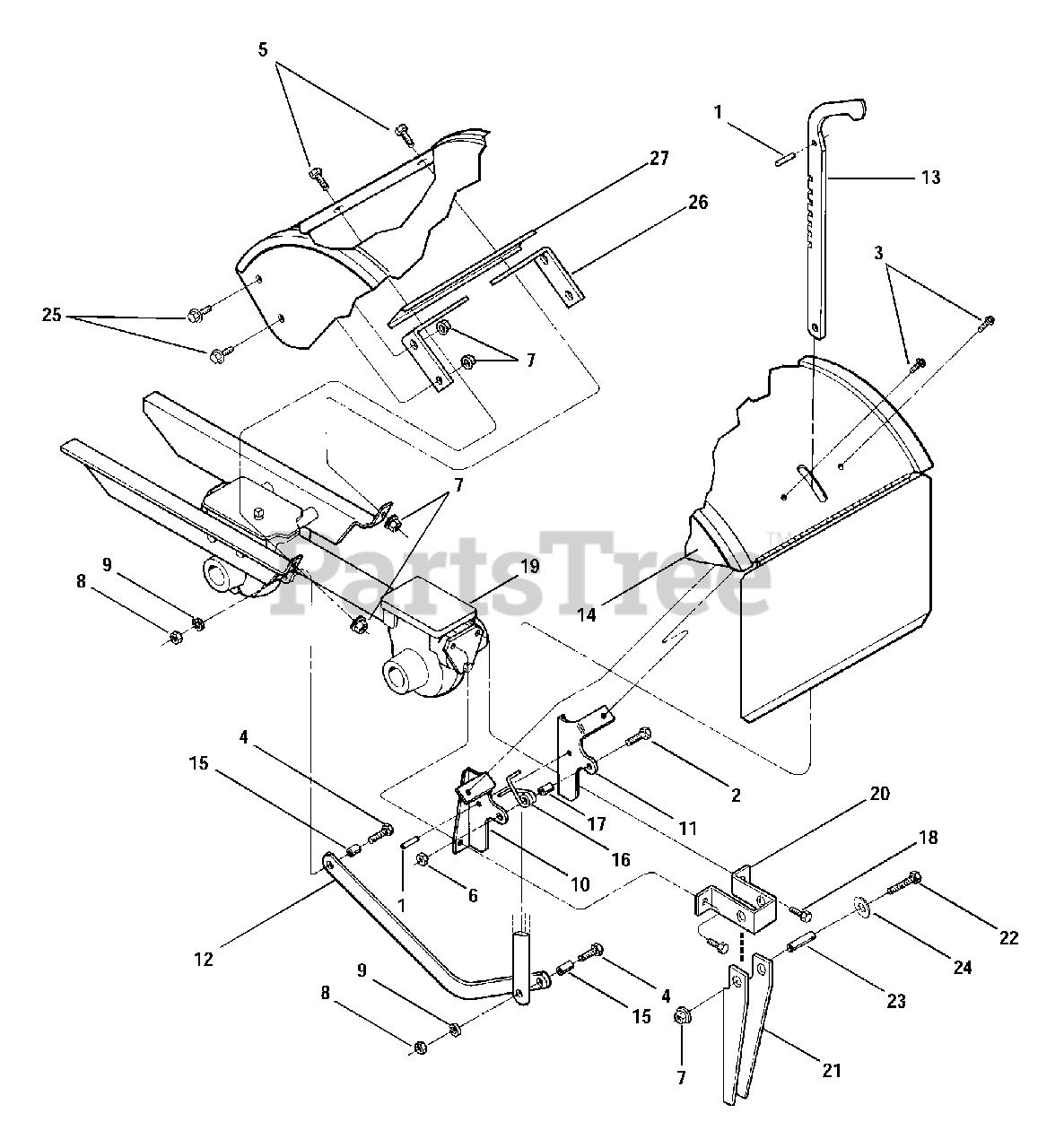

Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 1185469

Spirol Pin
(Superseded to 715-04034)

$7.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$4.49

$

In Stock, Qty 11

0

3

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0874

Hex Hd. Screw, 5/16-18 x 1-1/4

$7.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1186331

Hex Hd. Screw, 5/16-18 x 1.0
(Superseded to 710-04048)

$5.49

$

In Stock, Qty 7

0

6

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-3009

Hex Nut, 5/16-18

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1916120001

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1916119001

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

12

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$38.99

$

In Stock, Qty 8

0

13

Troy-Bilt GW-55018

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$70.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 686-04029

Tine Hood Assembly
(Superseded to 986-04029)

$

$

Not available

15

Troy-Bilt GW-55088

Bushing

$

$

Not available

16

Troy-Bilt GW-9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt GW-9534

Spacer

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 710-04048

Hex Hd. Flange Screw, 5/16-18 x 1

$5.49

$

In Stock, Qty 7

0

19

Troy-Bilt 618-04046

Transmission Assembly (CRT)
(Superseded to 918-04046)

$

$

Not available

20

Troy-Bilt 786-04191

Flap Stop Bracket
(Superseded to 786-04191-0637)

Variations

786-04191-0637

Troy-Bilt 786-04191-0637

BRACKET-HOOD STOP - POWDER BLACK (0637)

$

$

Not available

$

$

21

Troy-Bilt 1916570

Reverse Stop Arm
(Superseded to 786-04092)

$27.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-3073

Hex Screw, 5/16-18 x 2.25
(Superseded to 710-0395)

$4.99

$

In Stock, Qty 11

0

23

Troy-Bilt 1916771

Spacer,.462 x.328 x 1.63

$

$

Not available

24

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

25

Troy-Bilt 710-3025

Hex Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 7

0

26

Troy-Bilt 1916708

Hood Support Bracket

$

$

Currently unavailable

27

MTD 1916707

Channel Support Bracket
(Superseded to 1916707001)

$

$

Not available
