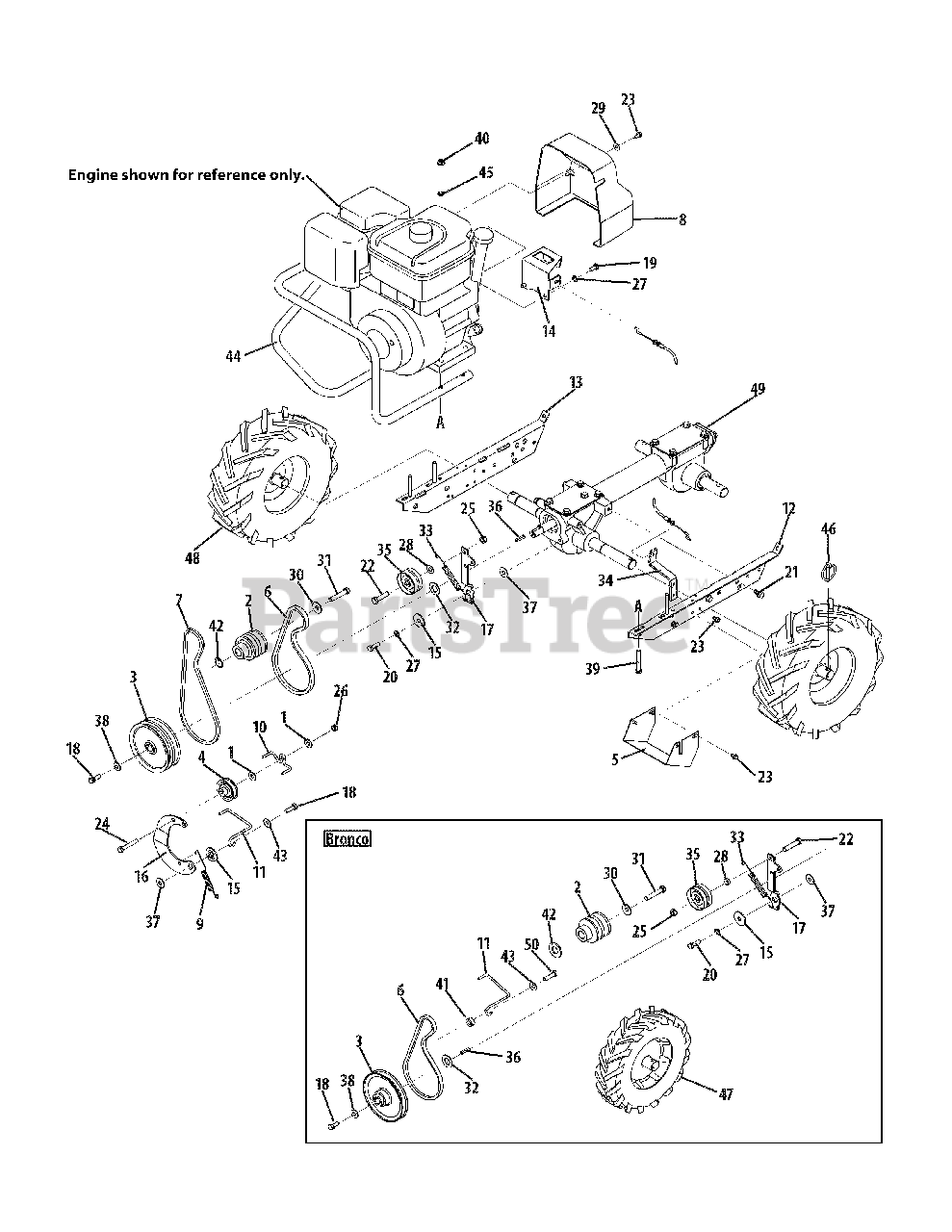

21A-655A766 - Troy-Bilt CRT Rear-Tine Tiller (2008) Drive System Parts Diagram

CRT Rear-Tine Tiller

Drive System Parts Diagram

  • Title

1

Troy-Bilt 736-0159

Flat Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 756-04198

Engine Drive Pulley
(Superseded to 756-04198A)

$51.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 656-04023A

Transmission Pulley

Note: Bronco

$79.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 656-04005A

Transmission Pulley

Note: Super Bronco & Pro Line

$

$

Not available

4

Troy-Bilt 756-04169

Reverse Idler Pulley

Note: Super Bronco & Pro Line

$23.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 786-04095

Belts/Pulleys Guard
(Superseded to 786-04095-0637)

Variations

Troy-Bilt 786-04095-0637

Trans Pulley Guard - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 754-04090

Forward Drive Belt
(Superseded to 954-04090)

$20.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 754-04091

Reverse Drive Belt
(Superseded to 954-04091)

Note: Super Bronco & Pro Line

$18.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-05268

Belt Cover

$36.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 732-04289

Reverse Return Spring
(Superseded to 1916724)

Note: Super Bronco & Pro Line

$

$

Not available

10

Troy-Bilt 732-04081

Belt Guide

Note: Super Bronco & Pro Line

$9.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 732-04079

Belt Guide
(Superseded to 1916726)

$

$

Not available

12

MTD 786-04068

Engine Bracket Left

$

$

Not available

13

Troy-Bilt 786-04069

Engine Bracket Right

$

$

Not available

14

Troy-Bilt 786-04070

Belt Cover Bracket
(Superseded to 786-04070-0637)

Variations

Troy-Bilt 786-04070-0637

Belt Cover Bracket - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 748-04087

Shoulder Washer
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 16

0

16

Troy-Bilt 786-04276

Reverse Idler Arm

Note: Super Bronco & Pro Line

$15.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 786-04275

Forward Idler Lever
(Superseded to 786-04275-0637)

Variations

Troy-Bilt 786-04275-0637

Idler Arm, Forward - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0117

Hex Head Screw, 5/16-24 x 1
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

19

Troy-Bilt 710-0237

Hex Head Screw, 5/16-24 x 5/8

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-0376

Hex Head Screw, 5/16-18 x 1

$3.99

$

In Stock, Qty 17

0

21

Troy-Bilt 710-04049

Hex Head Screw, 5/16-18 x /

$4.49

$

In Stock, Qty 14

0

22

Troy-Bilt 710-0347

Hex Head Screw, 3/8-16 x 1-3/4

Note: Bronco

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0520

Hex Head Screw, 3/8 -16 x 1.50

Note: Super Bronco & Pro Line

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-3103

Hex Head Screw, 5/16-18 x 2

Note: Super Bronco & Pro Line

$4.49

$

In Stock, Qty 19

0

25

Troy-Bilt 712-3000

Lock Nut, 3/8 -16

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-3009

Lock Nut, 5/16-18

Note: Super Bronco & Pro Line

$6.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

Note: Bronco

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 750-0535

Spacer, .380 ID x .625 OD x .21
(Superseded to 950-0535)

Note: Bronco

$4.49

$

In Stock, Qty 7

0

28

Troy-Bilt 736-3050

Flat Washer, .406 x .812 x .051

Note: Bronco

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-3090

Flat Washer, .260 x .720 x .060

$6.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 736-0452

Bell Washer, .396 x 1.140 x .095

$4.49

$

In Stock, Qty 16

0

31

Troy-Bilt 710-0459A

Hex Head Screw, 3/8 -24 x 1.50

$6.99

$

In Stock, Qty 10

0

32

Troy-Bilt 736-04181

Support Washer, .690 x 1.250 x .075
(Superseded to GW-50027)

$6.49

$

In Stock, Qty 10

0

33

Troy-Bilt 732-04085

Forward Return Spring

$13.99

$

In Stock, Qty 5

0

34

Troy-Bilt 786-04107

Cable Mounting Bracket

Variations

Troy-Bilt 786-04107-0637

BRACKET:CABLE MT - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 756-04170

Forward Idler Pulley

$33.99

$

In Stock, Qty 10

0

36

Troy-Bilt 714-0105

Key, 3/16" x 1"
(Superseded to 914-0105)

$3.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 736-3078

Flat Washer, .344 x 1.00 x .063

$3.99

$

In Stock, Qty 15

0

38

Troy-Bilt 736-04193

Belleville Washer, .827 x .331 x .098

$6.49

$

In Stock, Qty 9

0

39

Troy-Bilt 710-0805

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

Note: Bronco & Super Bronco

$3.99

$

In Stock, Qty 8

0

39

Troy-Bilt 710-0395

Hex Screw, 5/16-18 x 2-1/4

Note: Pro Line

$4.49

$

In Stock, Qty 8

0

40

Troy-Bilt 712-04063

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 750-0258

Shlder Spacer, .315 x .750 x .375

Note: Bronco

$10.99

$

In Stock, Qty 12

0

42

Troy-Bilt 736-0315

Flat Washer, .75 x 1.5 x .125

Note: Bronco

$6.49

$

In Stock, Qty 7

0

42

Troy-Bilt 736-04192

Flat Washer, .786 x 1.000 x .031

Note: Super Bronco & Pro Line

$6.49

$

In Stock, only 3 left!

0

43

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 749-04193

Bumper
(Superseded to 749-04193-0637)

Note: Pro Line

Variations

Troy-Bilt 749-04193-0637

Bumper, Tiller Black - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 7

0

$50.99

$

In Stock, Qty 7

0

45

Troy-Bilt 726-0201

Speed Nut, 5/16-18

Note: Pro Line

$6.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 19

0

47

Troy-Bilt 734-04188

Complete Wheel Ass., 10 x 2.75

Note: Bronco

$

$

Not available

48

N/A

Complete Whl. Ass., 13 x 5 x 6

Note: Super Bronco & Pro Line

$

$

Not available

48

Troy-Bilt 634-04218

Rim Assembly

$

$

Currently unavailable

48

Troy-Bilt 734-0255

Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 734-04163

Tire
(Superseded to 734-04163A)

Variations

Troy-Bilt 734-04163-0901

Tiller Ag Tire - Carlisle (0901)

$106.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 618-04360A

Transmission Assembly
(Superseded to 753-05894B)

Note: Bronco

$823.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 618-04362

Transmission Assembly
(Superseded to 918-04362)

Note: Super Bronco & Pro Line

$823.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 20+

0
