21A-662G766 - Troy-Bilt Pony Rear-Tine Tiller (2012) Transmission 21A-66X Parts Diagram

Pony Rear-Tine Tiller

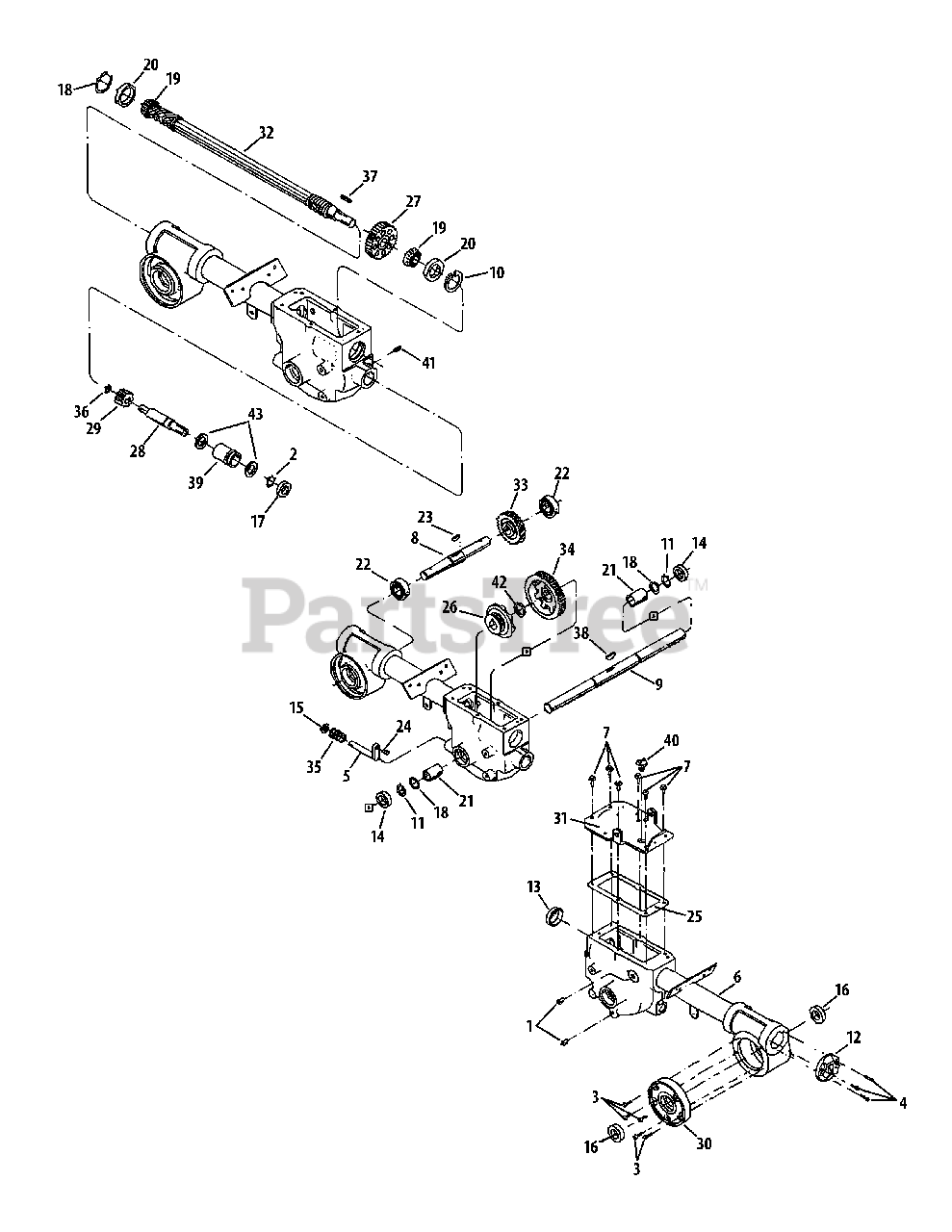

Transmission 21A-66X Parts Diagram

  • Title

1

Troy-Bilt 1105620

Pipe Plug

$3.99

$

In Stock, Qty 5

0

2

Troy-Bilt 916-0101

Retaining Ring
(Superseded to 716-0101)

$3.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 1915068

Hex Screw, 1/4-20 x 625

$3.99

$

In Stock, Qty 13

0

4

Troy-Bilt 1915069

Self-Sealing Screw, 1/4-20 x 875

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 611-04002

Eccentric Shaft

$75.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 919-04010

Transmission Housing

$456.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04043

Hex Flange Screw, 5/16-18 x 750

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt GW-20896

Tiller Shaft

$102.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 911-04482

Wheel Shaft

$124.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-04104

Retaining Ring

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-04406

Rear Bearing Cover

$46.99

$

In Stock, Qty 5

0

13

Troy-Bilt 721-04001

Oil Seal, 179 x 25

$9.99

$

In Stock, Qty 13

0

14

Troy-Bilt 921-04031

Oil Seal, 10 x 1499

$10.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 921-04034

Oil Seal, 625 x 10

$9.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 921-04035

Oil Seal, 984 x 175

$10.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 921-04044

Oil Seal, 750 x 125

$8.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04258

Washer, 1375 x 1015 x 01

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04259

Washer, 1375 x 1015 x 015

$6.49

$

In Stock, Qty 19

0

18

Troy-Bilt 736-04260

Washer, 1375 x 1015 x 03

$6.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04305

Washer, 175 x 15 x 062

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04306

Washer, 175 x 15 x 005

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04307

Washer, 175 x 15 x 03

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04308

Washer, 175 x 15 x 01

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04309

Washer, 1375 x 1015 x 062

$3.99

$

In Stock, Qty 18

0

19

Troy-Bilt 941-04298

Cone Bearing

$15.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 941-04299

Cup Bearing

$6.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 941-04300

Bushing, 125 x 1 x 005 x 15

$15.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 941-3037

Ball Bearing

$38.99

$

In Stock, Qty 20+

0

23

Troy-Bilt GW-1104

Woodruff Key, 25 x 112

$8.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 738-04448

Pin, 375 x 72

$7.99

$

In Stock, Qty 10

0

25

Troy-Bilt GW-20694

Transmission Cover Gasket
(Superseded to GW-20694P)

$4.99

$

In Stock, Qty 5

0

26

Troy-Bilt GW-20712

Wheel Drive Clutch

$82.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 717-04690

Spur Gear

$36.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt GW-20791

Pinion Shaft
(Superseded to 711-05388)

$78.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 717-04689

Pinion Gear

$21.99

$

In Stock, only 1 left!

0

30

Troy-Bilt GW-20873

Housing Cover

$100.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1916193001

Transmission Cover

$53.99

$

In Stock, only 1 left!

0

32

Troy-Bilt GW-20912

Drive Shaft

$276.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt GW-20913

Worm Gear

$187.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt GW-20914

Wheel Drive Gear

$180.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-9055

Spring, 850 x 875

$6.99

$

In Stock, only 1 left!

0

36

Troy-Bilt GW-9093

Bowed Ring

$6.49

$

In Stock, only 3 left!

0

37

Troy-Bilt GW-9301099

Key, 188 x 1
(Superseded to GW-9301)

$3.49

$

In Stock, Qty 17

0

38

Troy-Bilt GW-9373

Hi-Pro Key, 25 x 1312

$9.49

$

In Stock, only 1 left!

0

39

Troy-Bilt GW-9428

Bushing, 124 x 75 x 18

$34.99

$

In Stock, only 1 left!

0

40

Troy-Bilt GW-9467

Oil Plug

$4.99

$

In Stock, only 1 left!

0

41

Troy-Bilt GW-9677

Hex Screw, 5/16-18 x 38

$3.49

$

In Stock, only 2 left!

0

42

Troy-Bilt GW-9935

Washer, 146 x 1016 x 062

$3.49

$

In Stock, only 1 left!

0

43

Troy-Bilt GW-9953

Washer, 1022 x 75 x 059

$5.99

$

In Stock, only 2 left!

0
