21A-664D063 - Troy-Bilt Rear-Tine Tiller (2002) Wheel Shaft, Eccentric Shaft And Tiller Shaft Assemblies Parts Diagram

Rear-Tine Tiller

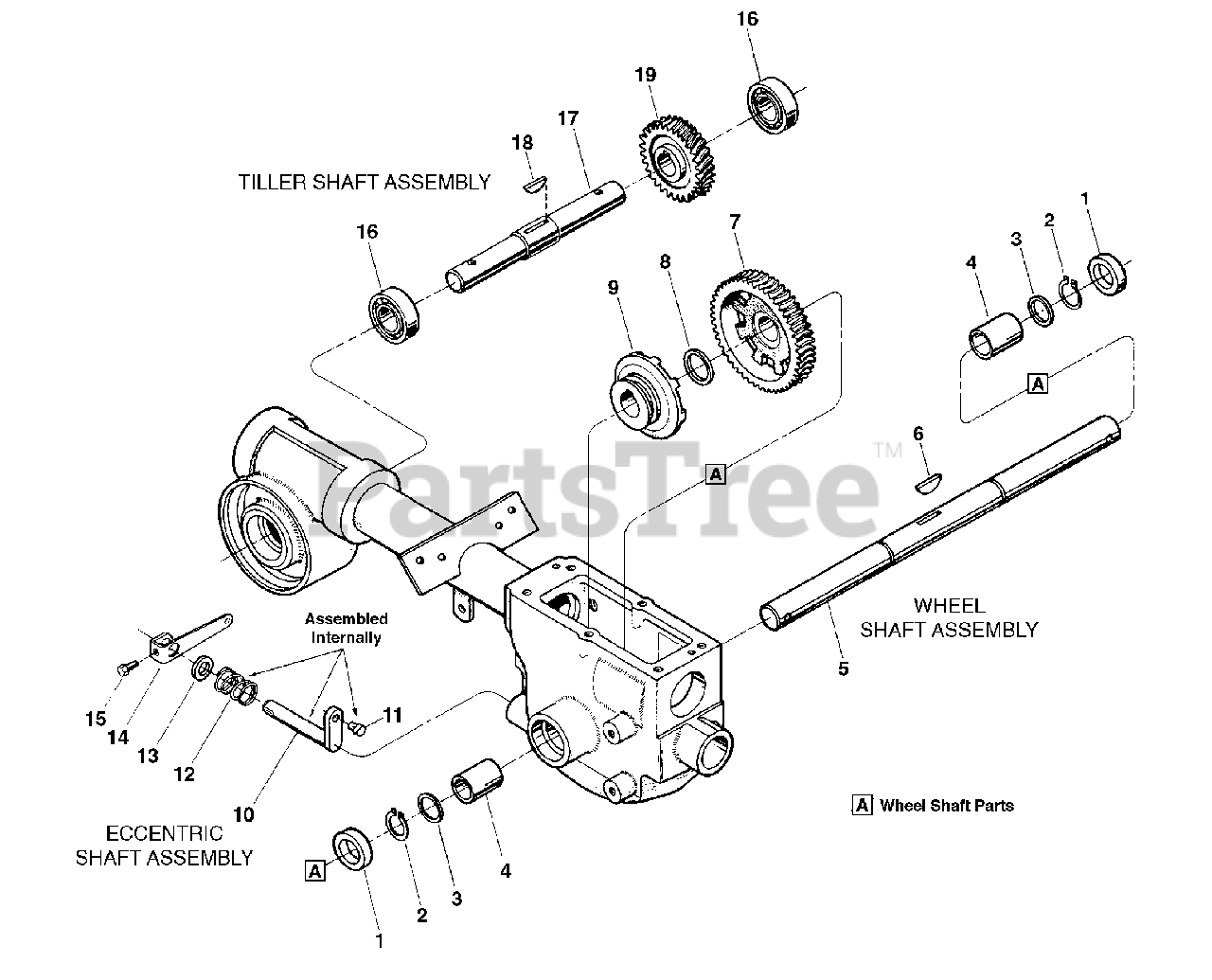

Wheel Shaft, Eccentric Shaft And Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt GW-9621

Oil Seal
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1909950

Retaining Ring (heavy-duty, external)
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-1166-1

Shim, 1-1/64 I.D., .062" thick
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

Troy-Bilt GW-1166-2

Shim, as above, but .030" thick
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1166-3

Shim, as above, but .015" thick
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

Troy-Bilt GW-1166-4

Shim, as above, but .010" thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-1086

Bushing
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-2494

Wheel Shaft
(Superseded to 753-05579)

Note: (Incl. Ref. 6)

$

$

Not available

6

Troy-Bilt GW-9373

Hi-Pro Key, 1/4 x 1-5/16

$9.49

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-20914

Wheel Drive Worm Gear (cast-iron)

$180.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-9935

Shim (between key and gear), 1.016 I.D. x 1.468 O.D. x .062 Thick

$3.49

$

In Stock, only 1 left!

0

9

Troy-Bilt GW-20712

Wheel Drive Clutch (cast-iron)

$82.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-20879

Eccentric Shaft
(Superseded to 611-04002)

$75.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-1442

Pin, Eccentric Shaft
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 10

0

12

Troy-Bilt GW-9055

Spring

$6.99

$

In Stock, only 1 left!

0

13

Troy-Bilt GW-9622

Oil Seal
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-20700

Eccentric Shaft Lever
(Superseded to 786-04001)

$41.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-3013

Hex Hd. Screw, 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 741-3037

Ball Bearing
(Superseded to 941-3037)

$38.99

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-20896

Tiller Shaft

Note: (Incl. Ref. 18)

$102.99

$

In Stock, only 2 left!

0

18

Troy-Bilt GW-1104

Woodruff Key, 1/4 x 1-1/4

$8.99

$

In Stock, only 3 left!

0

19

Troy-Bilt GW-20913

Tiller Drive Worm Gear (bronze)

$187.99

$

Usually ships in 3-6 days

0

$

$
