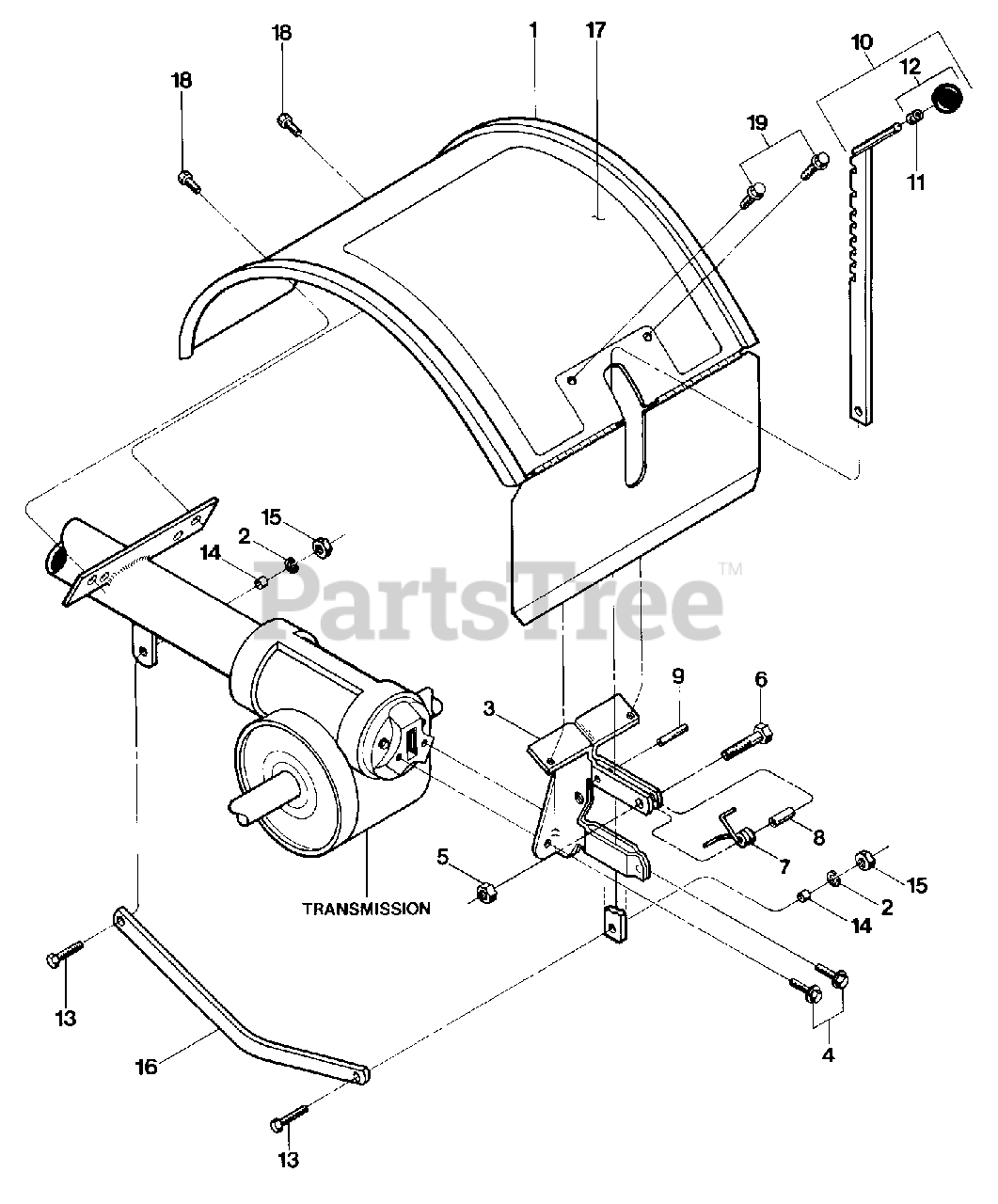

21A-665B063 - Troy-Bilt Rear-Tine Tiller (2002) Drag Bar Parts Diagram

Rear-Tine Tiller

Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 1917605

Hood-Tine cover, with hinged flap
(Superseded to 686-04078-0638)

Note: (Incl. hood flap and Ref.17)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-2527

Bracket-Hood & Depth Regulator

Note: (Incl. Ref. No. 9)

$147.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1186328

Screw-flanged hex hd., 5/16-18 x 5/8
(Superseded to 710-04049)

$4.49

$

In Stock, Qty 14

0

5

Troy-Bilt 712-0291

Hex Locknut, 1/4-20

$4.49

$

In Stock, Qty 9

0

6

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 19

0

7

Troy-Bilt GW-9384

Spring-Depth regulator plunger
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 14

0

8

Troy-Bilt GW-9534

Spacer

$3.99

$

In Stock, Qty 9

0

9

MTD 1185496

Roll Pin-1/4 x 1 (spiral)

$

$

Not available

10

Troy-Bilt GW-1117A

Bar Assembly-Depth adjustment
(Superseded to 1900864)

Note: (Incl. Refs. 11 and 12)

$80.99

$

In Stock, Qty 9

0

11

Troy-Bilt GW-9120

Ring-Retaining, tolerance ring

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9119

Knob-Depth regulator

$10.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 710-3005

Hex Hd. Screw, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-1113-1

Bushing-Spacer
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0798

Hex Nut, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt GW-20775

Drag Bar
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 777S30652

Decal-Tiller operating instructions

$

$

Currently unavailable

18

Troy-Bilt GW-9553

Hex Hd. Screw, self-tapping, 5/16-18 x 1/2
(Superseded to 710-0607)

$6.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0599

Screw-flanged hex hd, self-tapping, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0
