21A-665B063 - Troy-Bilt Rear-Tine Tiller (2002) Main Drive Shaft, Input Pinion Shaft & Gear Assembly Parts Diagram

Rear-Tine Tiller

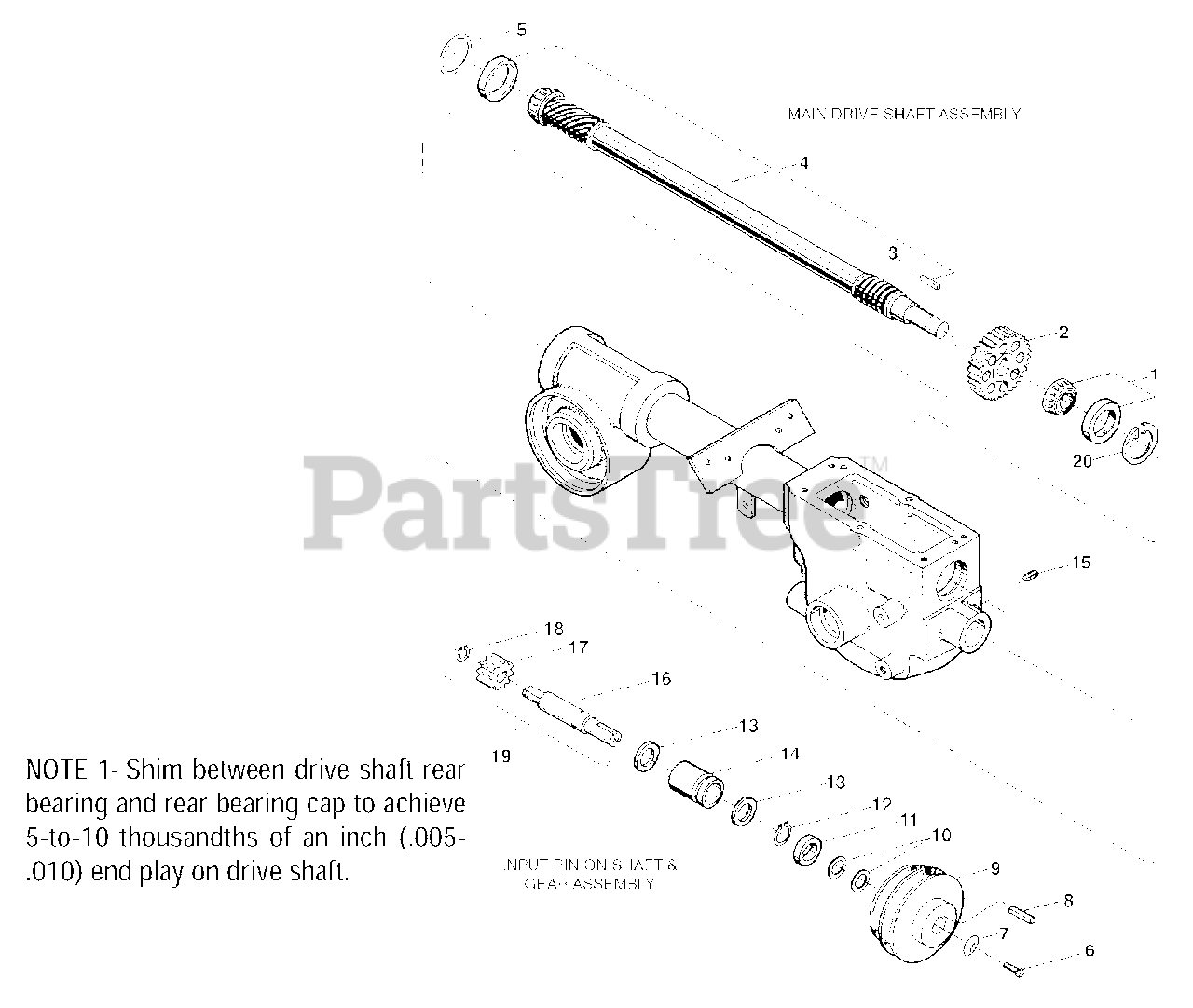

Main Drive Shaft, Input Pinion Shaft & Gear Assembly Parts Diagram

  • Title

1

Troy-Bilt 941-0107

Bearing-Tapered roller with race

$44.99

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-20718

Gear-Spur, main drive shaft
(Superseded to 717-04690)

$36.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt GW-9301

Key, 3/16 sq. x 1

$3.49

$

In Stock, Qty 17

0

4

MTD GW-11603

Drive Shaft-with integral, single-lead worm at front and six-lead worm at rear

Note: (Includes pressed-on #1714 rear roller bearing, race for bearing and #9301 key)

$

$

Not available

5

Troy-Bilt GW-1224-1

Shim-Rear bearing cap, .010 thick
(Superseded to 736-04308)

Note: (See Note 1)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-2

Shim-same as above, but .030 thick
(Superseded to 736-04307)

Note: (See Note 1)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-3

Shim-same as above, but .005 thick
(Superseded to 736-04306)

Note: (See Note 1)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt GW-1325C

Shim Set

Note: Includes the following shims: two 1224-1; two 1224-2; one #1224-3

$14.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 910-0372

Hex Hd. Screw, 5/16-24 x 1-1/8

$

$

Currently unavailable

7

Troy-Bilt GW-9944

Washer-Disc spring (concave surface faces pulley)
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 9

0

8

Troy-Bilt 914-0133

Key, 3/16 sq. x 1-1/
(Superseded to 714-0133)

Note: 1

$

$

Not available

9

Troy-Bilt 1983632

Pulley-Transmission drive
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-1440

Support Washer
(Superseded to 736-04079)

$4.49

$

In Stock, Qty 7

0

11

Troy-Bilt 1983632

Oil Seal-Input pinion shaft, front
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1113527

Ring-Retaining (snap ring), external
(Superseded to 916-0101)

$3.49

$

In Stock, Qty 8

0

13

Troy-Bilt GW-9953

Thrust Washer

$5.99

$

In Stock, only 2 left!

0

14

Troy-Bilt GW-9428

Bushing

$34.99

$

In Stock, only 1 left!

0

15

Troy-Bilt GW-9677

Set Screw, 5/16-18 x 3/8

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt GW-20791

Input Pinion-steel shaft
(Superseded to 711-05388)

$78.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-20792

Gear-Input pinion
(Superseded to 717-04689)

$21.99

$

In Stock, only 1 left!

0

18

Troy-Bilt GW-9093

Retainer-Snap ring, external

$6.49

$

In Stock, only 3 left!

0

19

Troy-Bilt GW-20799

Pinion Assy

Note: (Incl. one each of Ref. No.'s 16, 17 and 18

$

$

Not available

20

Troy-Bilt GW-9517

Retainer-Snap ring, internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

$

$

Not available
