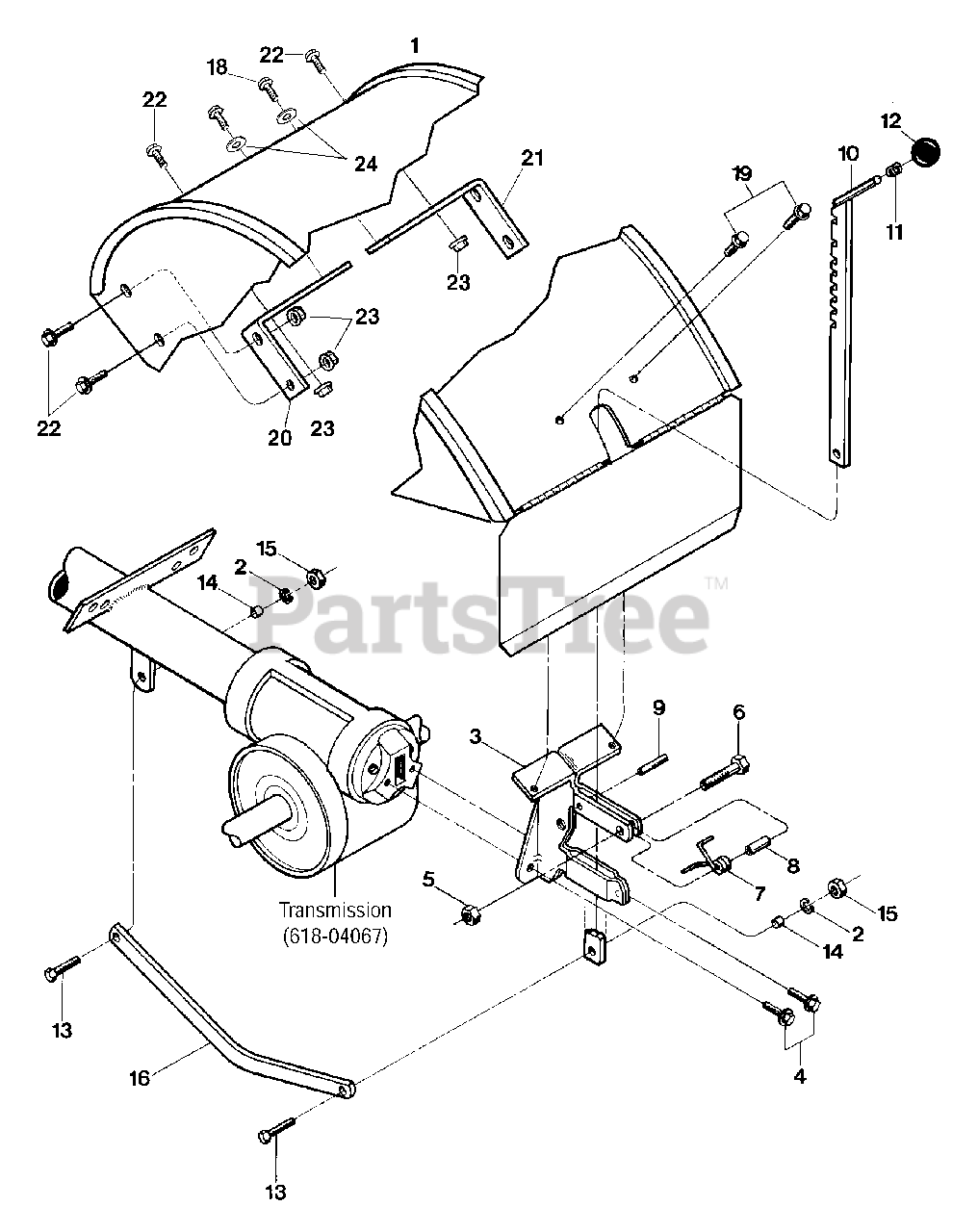

21A-675B766 - Troy-Bilt Rear-Tine Tiller (2004) Hood Parts Diagram

Rear-Tine Tiller

Hood Parts Diagram

  • Title

1

Troy-Bilt 686-04021

Hood, Tine
(Superseded to 986-04021)

$

$

Not available

2

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-2527

Bracket, Hood & Depth Regulator

$147.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04049

Hex Hd. Flg. Screw, 5/16-18 x 5/8

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 14

0

5

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 9

0

6

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 18

0

7

Troy-Bilt GW-9384

Spring, Depth Regulator Plunger
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 14

0

8

Troy-Bilt GW-9534

Spacer

$3.99

$

In Stock, Qty 9

0

9

Troy-Bilt 1185469

Roll Pin (spiral), 1/4 x 1
(Superseded to 715-04034)

$6.49

$

In Stock, Qty 7

0

10

MTD 1916186001

Bar Assembly, Depth Adjustment

$

$

Not available

11

Troy-Bilt GW-9120

Retaining Ring (Tolerance Ring)

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9119

Knob, Depth Regulator

$10.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 710-3005

Hex Hd. Screw, 3/8-16 x 1-1/4

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-1113-1

Bushing (spacer)
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-20775

Drag Bar, Depth Regulator
(Superseded to 1916185001)

$

$

Not available

18

Troy-Bilt 710-3038

Hex Hd. Screw, self-tapping,16-18 x 7/8

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 5

0

19

Troy-Bilt 710-0599

Flange Screw, self-tapping,1/4-20 x 1/2

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

20

MTD 1916700001

Support Bracket, Left-Side

$

$

Not available

21

MTD 1916701001

Support Bracket, Right-Side

$

$

Not available

22

Troy-Bilt 1186328

Hex Hd. Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.49

$

In Stock, Qty 14

0

23

Troy-Bilt 1186391

Hex Nut, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

618-04067

Troy-Bilt 618-04067

Transmission
(Superseded to 918-04067)

$

$

Not available
