21A-675B766 - Troy-Bilt Rear-Tine Tiller (2004) Row Marker Attachment (Optional) Parts Diagram

Rear-Tine Tiller

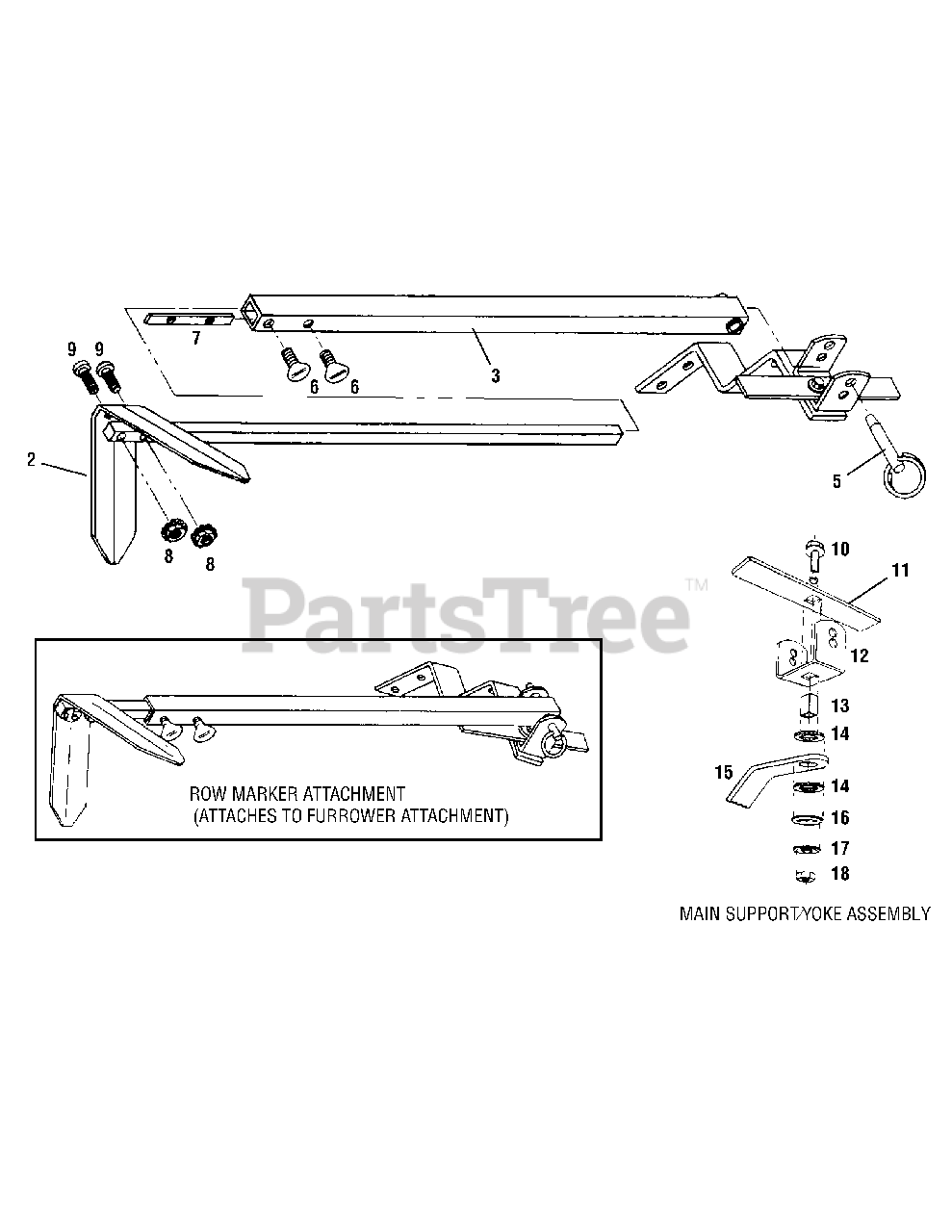

Row Marker Attachment (Optional) Parts Diagram

  • Title

1

Main Support & Yoke Assy

$

$

Not available

2

MTD GW-1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with pin

$

$

Not available

5

Troy-Bilt GW-9347

Hitch Pin

$13.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9786

Thumbscrew-1/4-20 x 1/2

$

$

Not available

7

MTD GW-1596

Nut Bar

$

$

Not available

8

MTD GW-9828

Nut-hex, 10-24 w/ attached star washers

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd.,10-24

$

$

Not available

MTD GW-1837

Hardware Package

Note: Includes: one GW-9347 hitch pin, two GW-9786 thumbscrews, two GW-9828 hex nuts and two 1100135 screws

$

$

Not available

10

Troy-Bilt 1186349

Screw-hex flanged locking,3/8-16 x 1-1/2

Note: Specify GRADE 5 if ordering part locally.

$3.49

$

Usually ships in 3-6 days

0

11

MTD GW-1593

Stop Bar

$

$

Not available

12

MTD GW-1592

Yoke

$

$

Not available

13

MTD GW-1591

Tube Key-square

$

$

Not available

14

Troy-Bilt GW-1590

Washer-friction

$7.49

$

Usually ships in 3-6 days

0

15

MTD GW-1588

Main Support

$

$

Not available

16

MTD GW-1589

Washer-square hole

$

$

Not available

17

MTD GW-9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-161
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 290-257-081

Row Marker

Note: Order from Whole Goods

$

$

Currently unavailable
