21A-682J063 - Troy-Bilt Rear-Tine Tiller (2002) Forward Interlock System Parts Diagram
Rear-Tine Tiller

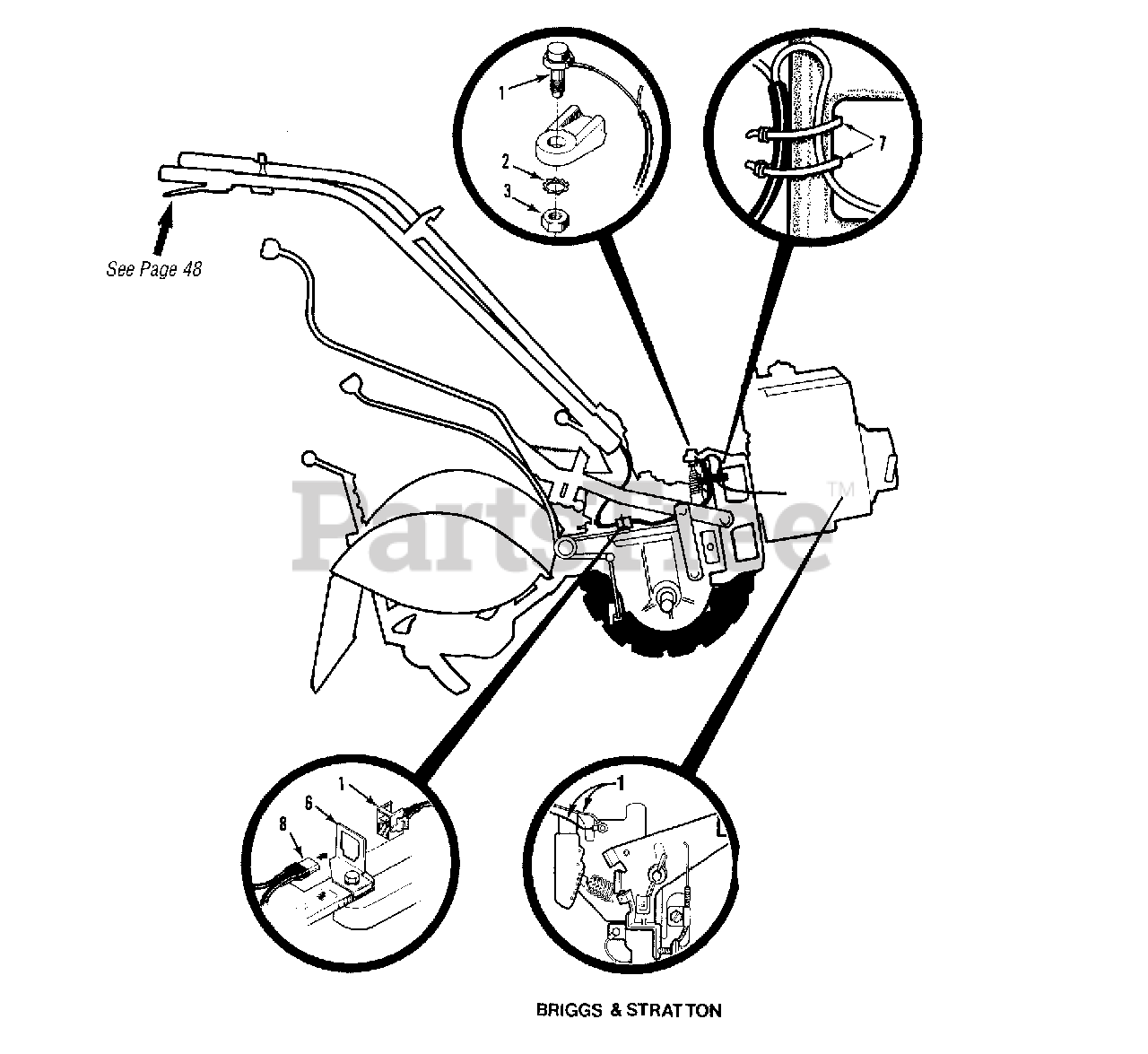

Forward Interlock System Parts Diagram
MTD GW-2552
Engine Wire Harness Assy-forward interlock system
Note: (Incl. one red and one black wire, plug connector, neutral switch and PVC tubing. Parts not available separately.
$
$
Not available
Troy-Bilt GW-9971
Lockwasher-external tooth, 7/16"
$
$
Not available
Troy-Bilt 1186246
Nut-hex, 7/16"-20
$
$
Not available
MTD GW-9205
Clip-for plug connector
$
$
Not available
Troy-Bilt 725-0157
Tie-plastic
$3.49
$
In Stock, only 4 left!
Troy-Bilt GW-2551
Handlebar Wire Harness Assy
Note: (See "Handlebar Assembly" illustration & parts list, Ref. No. 20)
$69.99
$
Usually ships in 3-6 days
