21A-682J766 - Troy-Bilt Horse Rear-Tine Tiller (2005) Power Unit Transmission Assemblies Parts Diagram

Horse Rear-Tine Tiller

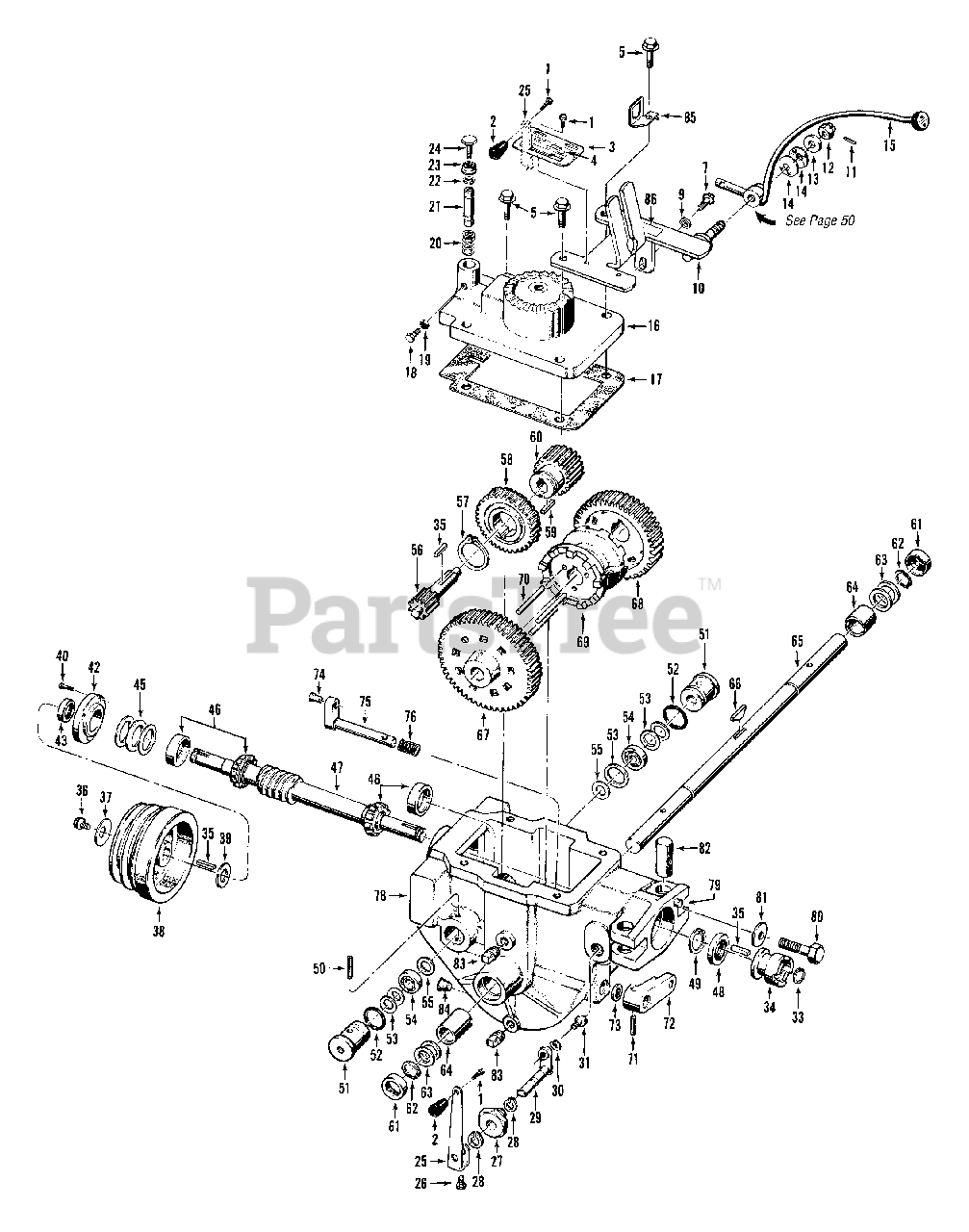

Power Unit Transmission Assemblies Parts Diagram

  • Title

TRANSMISSION COVER & SHIFT LEVER BRACKET ASSEMBLIES

$

$

Not available

1

Troy-Bilt 1186299

Bolt-hex hd., #10-32 x 3/8", self-locking flange
(Superseded to 710-04454)

$3.99

$

In Stock, Qty 6

0

2

Troy-Bilt GW-9463

Knob-tines/PTO clutch lever, tapered, plastic

$10.99

$

In Stock, Qty 6

0

3

Troy-Bilt GW-2124

Detent Plate-tines/PTO clutch lever
(Superseded to GW-2263)

$48.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 777I20945

Decal-operating instructions, detent plate

$4.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 1186349

Bolt-flanged hex hd., 3/8-16 x 1-1/2"

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4", Grade 5
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 736-0275

Washer-flat, 5/16", S.A.E.

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2149

Bracket-shift levers
(Superseded to 1900870001)

$166.99

$

In Stock, only 2 left!

0

11

Troy-Bilt GW-9362

Pin-spring, 1/8"

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9838

Nut-castle (slotted), 1/2"-20

Note: Call Tech Service for tightening instructions

$

$

Not available

13

Troy-Bilt GW-9934

Washer-shoulder, 1/2"

$14.99

$

In Stock, only 1 left!

0

14

Troy-Bilt GW-9932

Washer-disc spring

$22.99

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-2178

Lever-wheel speed shift
(Superseded to GW-2628)

$132.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt GW-2523

Cover-power unit transmission
(Superseded to 719-04015P)

$217.99

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-1123

Gasket-transmission cover

$7.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 710-0376

Bolt-hex hd., 5/16-18 x 1", Grade 5, (remove with care)

$3.99

$

In Stock, Qty 16

0

19

Troy-Bilt 712-3010

Nut-hex, 5/16"-18

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1901439

Spring-neutral plunger (remove with care)

$11.99

$

In Stock, only 4 left!

0

21

Troy-Bilt GW-1035-1

Plunger-neutral (remove with care)
(Superseded to GW-1035)

$35.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 1901440

Clip Ring-retains neutral plunger

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186393

Nut-hex, flange locknut, 3/8"-16

$2.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1902004

Bolt-hex hd., 3/8-16x1-1/2", threaded full length

$7.99

$

In Stock, only 1 left!

0

TINES/PTO CLUTCH LEVER ASSEMBLY

$

$

Not available

25

Troy-Bilt 786-04002

Lever-eccentric, tines/PTO clutch

$52.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 710-3013

Bolt-hex hd., 1/4-20 x 1/2"

$4.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 741-04008

Bushing-tines/PTO clutch lever eccentric shaft

$26.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt GW-9516

Retaining Ring-(snap ring), external

$3.99

$

In Stock, Qty 14

0

29

Troy-Bilt GW-2461

Eccentric-shaft, tines/PTO clutch lever

$36.99

$

In Stock, Qty 10

0

30

Troy-Bilt GW-9911

Lockwasher-hi-collar, 1/4"

$5.99

$

In Stock, Qty 19

0

31

Troy-Bilt GW-9672

Screw-socket hd., 1/4-20 x 3/8"
(Superseded to 710-04354)

$3.99

$

In Stock, Qty 15

0

DRIVE SHAFT ASSEMBLY

$

$

Not available

33

Troy-Bilt 716-0101

Retaining Ring-external

$3.49

$

In Stock, only 4 left!

0

34

Troy-Bilt 1909139

Dog Clutch-power unit
(Superseded to 718-04615)

$49.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-9301

Key-3/16 sq. x 1"

$3.49

$

In Stock, Qty 13

0

36

Troy-Bilt 1100004

Bolt-hex hd., 5/16-24 x 3/4", self-locking flange, Grade 5
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 15

0

37

Troy-Bilt GW-9944

Washer-disc spring (concave)
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 8

0

38

Troy-Bilt GW-2107

Pulley-transmission drive, cast iron

$135.99

$

In Stock, only 4 left!

0

39

Troy-Bilt GW-50027

Washer-flat, hardened shoulder 1-1/4"

$6.49

$

In Stock, Qty 10

0

40

Troy-Bilt 1186310

Bolt-hex hd., 1/4-20 x 3/4", front bearing cap

$3.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 718-04007

Cap-front bearing

$17.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 721-04044

Seal-oil, front bearing cap
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-1

Shim-front bearing cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-2

Shim-as above, .030"
(Superseded to 736-04307)

$4.49

$

In Stock, Qty 16

0

45

Troy-Bilt GW-1224-3

Shim-as above, .005"
(Superseded to 736-04306)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-4

Shim-as above, .062"
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt GW-1714

Bearing & Race
(Superseded to 941-0107)

Note: (Incl. one bearing GW-9400 and one cup (race) GW-9401)

$44.99

$

In Stock, Qty 20+

0

47

Troy-Bilt GW-2655

Shaft-main drive, power unit

$204.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 721-04030

Seal-oil, drive shaft, rear
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-9517

Retaining Ring-(snap ring), internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

PINION SHAFT ASSEMBLY

$

$

Not available

50

Troy-Bilt 715-0121

Pin-roll (spirol), 1/4 x 2"

$6.49

$

In Stock, Qty 12

0

51

Troy-Bilt 718-04006

Plug-retaining, pinion bearing

$46.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt GW-9604

O-Ring-retaining plug

$4.99

$

In Stock, Qty 20+

0

53

Troy-Bilt GW-1132-1

Shim-retaining plug, 1-1/64" inner dia., .033" thick
(Superseded to 736-04386)

Note: (On right side only one GW-1132-1 shim is also used between bearing and washer, Ref. No.'s 54 & 55)

$6.49

$

In Stock, Qty 11

0

53

Troy-Bilt GW-1132-2

Shim-same as GW-1132-1, .062"
(Superseded to 736-04310)

$3.99

$

In Stock, Qty 15

0

53

Troy-Bilt GW-1132-3

Shim-same as GW-1132-1, .010"

$6.49

$

In Stock, Qty 7

0

54

Troy-Bilt GW-9404

Bearing-ball, pinion shaft

$25.99

$

In Stock, only 2 left!

0

55

Troy-Bilt GW-1126

Washer-pinion shaft
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt GW-1222

Stem Pinion-slow speed gear & shaft

$130.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt GW-9502

Ring-retaining, external
(Superseded to 716-04119)

$13.99

$

In Stock, only 1 left!

0

58

Troy-Bilt GW-2656

Worm Gear-bronze, wheel drive

$137.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt GW-9300

Key-3/16" x 5/8"

$3.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt GW-1233

Gear-fast speed pinion

$132.99

$

Usually ships in 3-6 days

0

WHEEL SHAFT ASSEMBLY

$

$

Not available

61

Troy-Bilt 721-04031

Seal-oil, wheel shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 1909950

Retaining ring-external
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-1

Shim-wheel shaft, 1-1/64" inner dia., .062" thick
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 17

0

63

Troy-Bilt GW-1166-2

Shim-as above, .030" thick
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 16

0

63

Troy-Bilt GW-1166-3

Shim-as above, .015" thick
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

63

Troy-Bilt GW-1166-4

Shim-as above, .010" thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-5

Shim-same as above, .005" thick
(Superseded to 736-04257)

$3.99

$

In Stock, Qty 9

0

64

Troy-Bilt GW-1086

Bushing-bronze, wheel shaft bearing
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 711-04086

Shaft-wheel, 15-5/8"
(Superseded to 753-05574)

$

$

Not available

66

Troy-Bilt 714-04014

Key-Hi Pro, 1/4" x 1-3/4"

$19.99

$

In Stock, only 4 left!

0

67

Troy-Bilt GW-1223

Gear-slow speed, wheel drive

$207.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt GW-1232

Gear-fast speed, wheel drive

$143.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt GW-1237

Dog Clutch-wheel drive

$151.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt GW-1112

Pin-clutch guide, 1/4" diameter

$4.49

$

In Stock, Qty 6

0

ECCENTRIC SHAFT ASSEMBLY

$

$

Not available

71

Troy-Bilt 1911372

Pin-roll, 3/16" x 1-1/4" (spirol)

$3.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 619-04000

Lever-eccentric, wheel speed shifting
(Superseded to 619-04000-0637)

Variations

Troy-Bilt 619-04000-0637

Eccentric Arm - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 721-04034

Seal-oil, eccentric shaft
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

74

Troy-Bilt GW-1442

Pin-eccentric shaft, wheel speed shifting
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 9

0

75

Troy-Bilt 611-04003

Eccentric Shaft-wheel speed shifting

$83.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt GW-1441

Spring-eccentric shaft

$3.99

$

In Stock, only 1 left!

0

TRANSMISSION HOUSING

$

$

Not available

78

Troy-Bilt GW-2109

Housing-power unit transmission
(Superseded to GW-2109099)

Note: (Empty housing without covers, shafts, gears, seals, etc.)

$871.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt GW-9359

Pin-alignment

$3.49

$

Usually ships in 3-6 days

0

MISCELLANEOUS PARTS

$

$

Not available

80

Troy-Bilt 1100067

Bolt-hex hd., 1/2-13 x 2" Grade 5

$

$

Not available

81

Troy-Bilt GW-9928

Washer-disc spring (concave), domed side faces bolt head

$11.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt GW-2126

Post-with threaded hole

Note: For Ref. No. 80

$29.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 1105620

Plug-pipe, 1/4"

$3.99

$

In Stock, Qty 5

0

84

Troy-Bilt GW-9122

Plug-red plastic, thread protector

$9.49

$

Usually ships in 3-6 days

0

85

MTD GW-9205

Clip-forward interlock system plug connector

Note: (See "Depth Regulator & Tine Hood Assemblies")

$

$

Not available

86

Troy-Bilt 777I20944

Decal-forward interlock wire harness

$9.99

$

In Stock, only 2 left!

0

TRANSMISSION ASSEMBLY

$

$

Not available

Troy-Bilt 618-04004

Transmission -power unit
(Superseded to 753-05337)

Note: (Does NOT include Ref. 35-39. Does NOT include Shift Lever and Bracket Assemblies, Ref. 3, 4, 10, 15, 85, 86, etc.)

$

$

Not available

$

$

Not available
