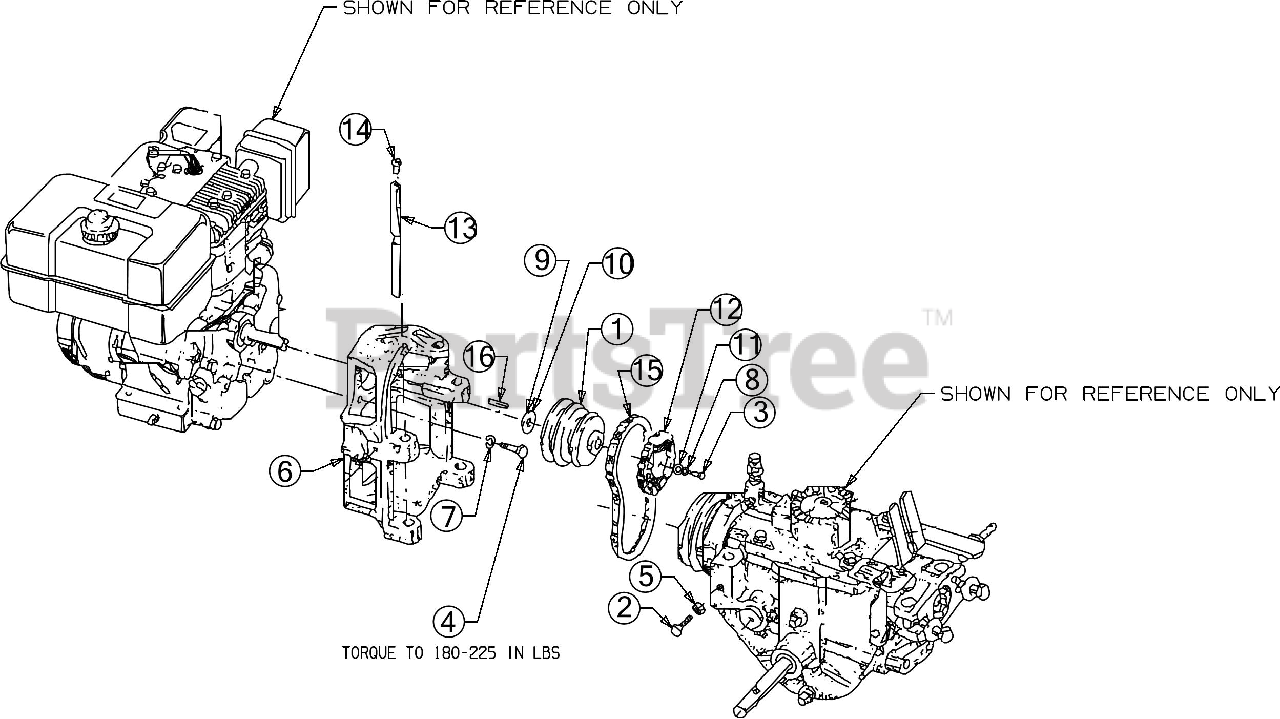

21A-682T766 - Troy-Bilt Horse Rear-Tine Tiller (2016) Drive Assembly Parts Diagram

Horse Rear-Tine Tiller

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 619-04124

PULLEY

$163.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0376

SCREW 5/16-18 X 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0539

SCREW 3/8-24 X 1.75 GR5

$4.99

$

In Stock, Qty 6

0

4

Troy-Bilt 710-0672

SCREW 5/16-24 X 1.25 GR5

$4.99

$

In Stock, Qty 9

0

5

Troy-Bilt 912-3010

HEX NUT 5/16-18
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 719-04111-0637

MOTOR MOUNT (POWDER BLACK)

$

$

Currently unavailable

7

Troy-Bilt 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 936-0169

LOCK WASHER 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-04187

SHIM 1.0X.7656X.062

$5.49

$

In Stock, Qty 16

0

10

Troy-Bilt 736-04192

FLAT WASHER .766 X 1.000 X .031

$7.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 736-3052

FLAT WASHER .406ID X1.0 OD

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 756-04171

REVERSE DISC

$71.99

$

In Stock, only 4 left!

0

13

Troy-Bilt GW-1034A

ENGINE MOUNTING BAR

$49.99

$

In Stock, only 2 left!

0

14

Troy-Bilt GW-9147

PLUG-CAP (RED)

$8.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-9245

DRIVE BELT FORWARD 22.14''

$24.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-9303

KEY

$3.99

$

In Stock, Qty 9

0
