21A-683F766 - Troy-Bilt Rear-Tine Tiller (2005) Power Unit Transmission Assemblies Parts Diagram

Rear-Tine Tiller

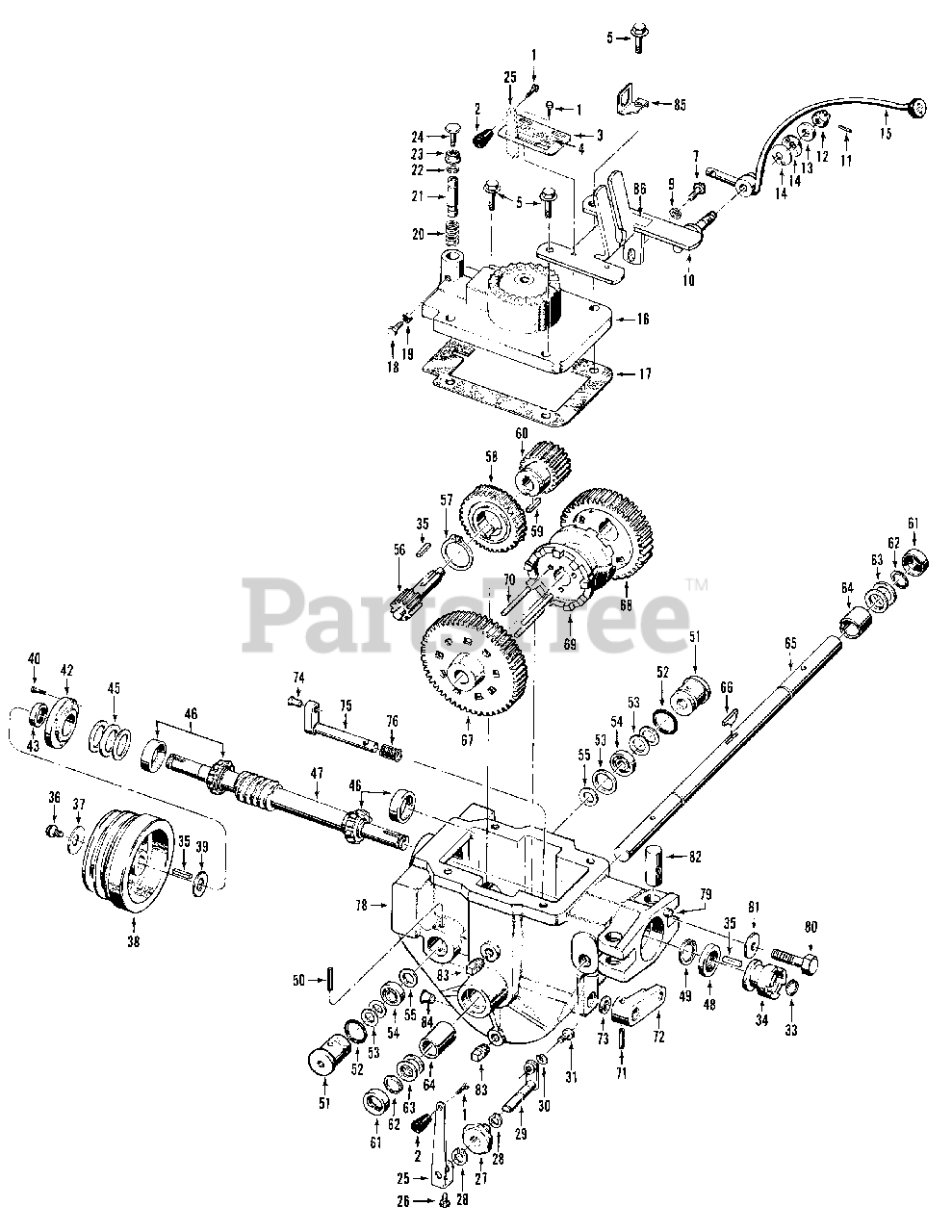

Power Unit Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1186299

Bolt-hex hd., #10-32 x 3/8 self-locking flange
(Superseded to 710-04454)

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$4.49

$

In Stock, Qty 7

0

2

Troy-Bilt GW-9463

Knob-tines/PTO clutch lever, tapered, plastic tapered, plastic

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$12.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-2263

Detent Plate- tines / PTO clutch lever

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$55.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 777I20945

Decal-operating instructions, detent plate

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$5.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 1186349

Bolt-flanged hex hd., 3/8-16 x 1-1/2"

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4 Grade 5
(Superseded to 710-04043)

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$4.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 736-0275

Washer-flat, 5/16",

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$7.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2149

Bracket-shift levers
(Superseded to 1900870001)

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$189.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9362

Pin-spring, 1/8"

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9838

Nut-castle (slotted) 1/2"-20

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$

$

Not available

13

Troy-Bilt GW-9934

Washer-shoulder, 1/2"

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$16.99

$

In Stock, only 1 left!

0

14

Troy-Bilt GW-9932

Washer-disc spring

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$26.99

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-2178

Lever-wheel speed shift
(Superseded to GW-2628)

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$150.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt GW-2523

Cover-power unit transmission
(Superseded to 719-04015P)

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$247.99

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-1123

Gasket-transmission cover

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$8.99

$

In Stock, Qty 16

0

18

Troy-Bilt 710-0376

Bolt-hex hd., 5/16-18 x 1, Grade 5

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-3010

Nut-hex, 5/16"-18

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 1901439

Spring-neutral plunger

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$12.99

$

In Stock, only 4 left!

0

21

Troy-Bilt GW-1035

Plunger-neutral

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$40.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 1901440

Clip Ring-retains neutral plunger

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$5.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186393

Nut-hex, flange locknut, 3/8"-16

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$3.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 1902004

Bolt-hex hd., 3/8-16x1-1/2" threaded full length

Note: TRANSMISSION COVER & SHIFT BRACKET ASSEMBLIES

$9.49

$

In Stock, only 1 left!

0

25

Troy-Bilt 786-04002

Lever-eccentric, tines/PTO clutch lever eccentric shaft

Note: TINES/PTO CLUTCH LEVER

$59.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 710-3013

Bolt-hex hd., 1/4-20 x 1/2"

Note: TINES/PTO CLUTCH LEVER

$4.99

$

In Stock, Qty 7

0

27

Troy-Bilt 741-04008

Bushing-tines/PTO clutch lever eccentric shaft

Note: TINES/PTO CLUTCH LEVER

$30.99

$

In Stock, Qty 5

0

28

Troy-Bilt GW-9516

Retaining Ring-(snap ring) external

Note: TINES/PTO CLUTCH LEVER

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt GW-2461

Eccentric-shaft, tines/PTO lever

Note: TINES/PTO CLUTCH LEVER

$41.99

$

In Stock, only 2 left!

0

30

Troy-Bilt GW-9911

Lockwasher-hi-collar, 1/4"

Note: TINES/PTO CLUTCH LEVER

$6.49

$

In Stock, only 1 left!

0

31

Troy-Bilt GW-9672

Screw-socket hd., 1/4-20 x 3/8"
(Superseded to 710-04354)

Note: TINES/PTO CLUTCH LEVER

$4.49

$

In Stock, Qty 8

0

33

Troy-Bilt 716-0101

Retaining Ring-external

Note: DRIVE SHAFT ASSEMBLY

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 1909139

Dog Clutch-power unit
(Superseded to 718-04615)

Note: DRIVE SHAFT ASSEMBLY

$56.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-9301

Key-3/16 sq x 1"

Note: DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 1100004

Bolt-hex hd., 5/16-24 locking flange, Grade 5
(Superseded to 710-0157)

Note: DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, only 3 left!

0

37

Troy-Bilt GW-9944

Washer-disc spring
(Superseded to 736-04193)

Note: DRIVE SHAFT ASSEMBLY

$7.49

$

In Stock, Qty 8

0

38

Troy-Bilt GW-2107

Pulley-transmission drive,

Note: DRIVE SHAFT ASSEMBLY

$154.99

$

In Stock, only 4 left!

0

39

Troy-Bilt GW-50027

Washer-flat, hardened shoulder 1-1/4"

Note: DRIVE SHAFT ASSEMBLY

$7.49

$

In Stock, Qty 9

0

40

Troy-Bilt 1186310

Bolt-hex hd., 1/4-20 x 3/4", front bearing camp

Note: DRIVE SHAFT ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 718-04007

Cap-front bearing

Note: DRIVE SHAFT ASSEMBLY

$20.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 721-04044

Seal-oil, front bearing cap
(Superseded to 921-04044)

Note: DRIVE SHAFT ASSEMBLY

$10.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-1

Shim-front bearing cap, 010thich
(Superseded to 736-04308)

Note: DRIVE SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-2

Shim-as above, 030"
(Superseded to 736-04307)

Note: DRIVE SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

45

Troy-Bilt GW-1224-3

Shim-as above, 005"
(Superseded to 736-04306)

Note: DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 16

0

45

Troy-Bilt GW-1224-4

Shim-as above, 062"
(Superseded to 736-04305)

Note: DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, only 2 left!

0

46

Troy-Bilt GW-1714

Bearing & Race (incl. 1 bearing GW-9400 & 1 cup (race) GW-9401
(Superseded to 941-0107)

Note: DRIVE SHAFT ASSEMBLY

$50.99

$

In Stock, Qty 18

0

47

Troy-Bilt GW-2655

Shaft-main drive, power unit

Note: DRIVE SHAFT ASSEMBLY

$233.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 721-04030

Seal-oil, drive shaft, rear
(Superseded to 921-04030)

Note: DRIVE SHAFT ASSEMBLY

$12.99

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-9517

Retaining Ring-(snap ring), internal
(Superseded to 716-04102)

Note: DRIVE SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 16

0

50

Troy-Bilt 715-0121

Pin-roll (spiral), 1/4 x 2

Note: PINION SHAFT ASSEMBLY

$7.49

$

In Stock, only 2 left!

0

51

Troy-Bilt 718-04006

Plug-retaining, pinion bearing

Note: PINION SHAFT ASSEMBLY

$52.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt GW-9604

O-Ring-retaining plug

Note: PINION SHAFT ASSEMBLY

$5.99

$

In Stock, Qty 19

0

53

Troy-Bilt GW-1132-1

Shim-retaining plug, 1-164" inner dia., .033 thick )
(Superseded to 736-04386)

Note: PINION SHAFT ASSEMBLY

$7.49

$

In Stock, only 2 left!

0

53

Troy-Bilt GW-1132-2

Shim-same as GW-1132-1, .062"
(Superseded to 736-04310)

Note: PINION SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 18

0

53

Troy-Bilt GW-1132-3

Shim-same as GW-1132-1, .010"

Note: PINION SHAFT ASSEMBLY

$7.49

$

In Stock, Qty 12

0

54

Troy-Bilt GW-9404

Bearing-ball, pinion shaft

Note: PINION SHAFT ASSEMBLY

$29.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt GW-1126

Washer-pinion shaft
(Superseded to 936-0272)

Note: PINION SHAFT ASSEMBLY

$5.49

$

In Stock, Qty 20+

0

56

Troy-Bilt GW-1222

Stem Pinion-slow speed gear and shaft

Note: PINION SHAFT ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt GW-9502

Ring-retaining, external
(Superseded to 716-04119)

Note: PINION SHAFT ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

58

Troy-Bilt GW-2656

Worm Gear-bronze, wheel drive

Note: PINION SHAFT ASSEMBLY

$156.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt GW-9300

Key-3/16" x 5/8"

Note: PINION SHAFT ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt GW-1233

Gear-fast speed pinion

Note: PINION SHAFT ASSEMBLY

$151.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 721-04031

Seal-oil, wheel shaft
(Superseded to 921-04031)

Note: WHEEL SHAFT ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 1909950

Retaining ring-external
(Superseded to 716-04104)

Note: WHEEL SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-1

Shim-wheel shaft, 1-1/64" inner dia., .062 thick
(Superseded to 736-04309)

Note: WHEEL SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-2

Shim-as above, .030" thick
(Superseded to 736-04260)

Note: WHEEL SHAFT ASSEMBLY

$7.49

$

In Stock, Qty 20+

0

63

Troy-Bilt GW-1166-3

Shim-as above, .015" thick
(Superseded to 736-04259)

Note: WHEEL SHAFT ASSEMBLY

$7.49

$

In Stock, Qty 17

0

63

Troy-Bilt GW-1166-4

Shim-as above, .010" thick
(Superseded to 736-04258)

Note: WHEEL SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 6

0

63

Troy-Bilt GW-1166-5

Shim-as above, .005 thick
(Superseded to 736-04257)

Note: WHEEL SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt GW-1086

Bushing-bronze, bearing
(Superseded to 941-04300)

Note: WHEEL SHAFT ASSEMBLY

$17.99

$

In Stock, Qty 16

0

65

Troy-Bilt 911-04025

Shaft-wheel, 15-5/8"
(Superseded to 753-05574)

Note: WHEEL SHAFT ASSEMBLY

$

$

Not available

66

Troy-Bilt 714-04014

Key-Hi Pro, 1/4"

Note: WHEEL SHAFT ASSEMBLY

$22.99

$

In Stock, only 2 left!

0

67

Troy-Bilt GW-1223

Gear-slow speed, wheel

Note: WHEEL SHAFT ASSEMBLY

$236.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt GW-1232

Gear-fast speed,

Note: WHEEL SHAFT ASSEMBLY

$163.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt GW-1237

Dog Clutch-wheel

Note: WHEEL SHAFT ASSEMBLY

$172.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt GW-1112

Pin-clutch guide, 1/4" diameter

Note: WHEEL SHAFT ASSEMBLY

$4.99

$

In Stock, only 3 left!

0

71

Troy-Bilt 1911372

Pin-roll, 3/16" x 1-1/4"

Note: ECCENTRIC SHAFT ASSEMBLY

$3.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 619-04000

Lever-eccentric, wheel speed shifting
(Superseded to 619-04000-0637)

Note: ECCENTRIC SHAFT ASSEMBLY

Variations

Troy-Bilt 619-04000-0637

Eccentric Arm - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 721-04034

Seal-oil, eccentric shaft
(Superseded to 921-04034)

Note: ECCENTRIC SHAFT ASSEMBLY

$10.99

$

In Stock, Qty 12

0

74

Troy-Bilt GW-1442

Pin-eccentric shaft, wheel speed shifting
(Superseded to 738-04448)

Note: ECCENTRIC SHAFT ASSEMBLY

$8.99

$

In Stock, Qty 11

0

75

Troy-Bilt 611-04003

Eccentric Shaft-wheel speed shifting

Note: ECCENTRIC SHAFT ASSEMBLY

$95.99

$

In Stock, only 1 left!

0

76

Troy-Bilt GW-1441

Spring-eccentric shaft

Note: ECCENTRIC SHAFT ASSEMBLY

$4.49

$

In Stock, only 1 left!

0

78

Troy-Bilt GW-2109

Housing-power unit transmission
(Superseded to GW-2109099)

Note: TRANSMISSION HOUSING

$992.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt GW-9359

Pin-alignment

Note: TRANSMISSION HOUSING

$3.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 1100067

Bolt-hex hd., 1/2-13 x 2 Gr5

$

$

Not available

81

Troy-Bilt GW-9928

Washer-disc spring (concave) domed side faces bolt head)

$13.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt GW-2126

Post-with threaded hole for Ref. No. 80

$33.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 1105620

Plug-pipe, 1/4"

$4.49

$

Usually ships in 3-6 days

0

84

Troy-Bilt GW-9122

Plug-red plastic, thread protector

$10.99

$

Usually ships in 3-6 days

0

85

MTD GW-9205

Clip-forward interlock system plug connector

$

$

Not available

86

Troy-Bilt 777I20944

Decal-forward interlock wire harness

$9.99

$

In Stock, only 2 left!

0

Troy-Bilt 618-04372

Transmission Assembly power unit (Does NOT include Ref 35 - 39. Does NOT include Shift Assemblies, Ref. 3, 4, 10, 15, 85, 86 etc
(Superseded to 918-04372)

$2483.99

$

Usually ships in 3-6 days

0

$

$

Not available
