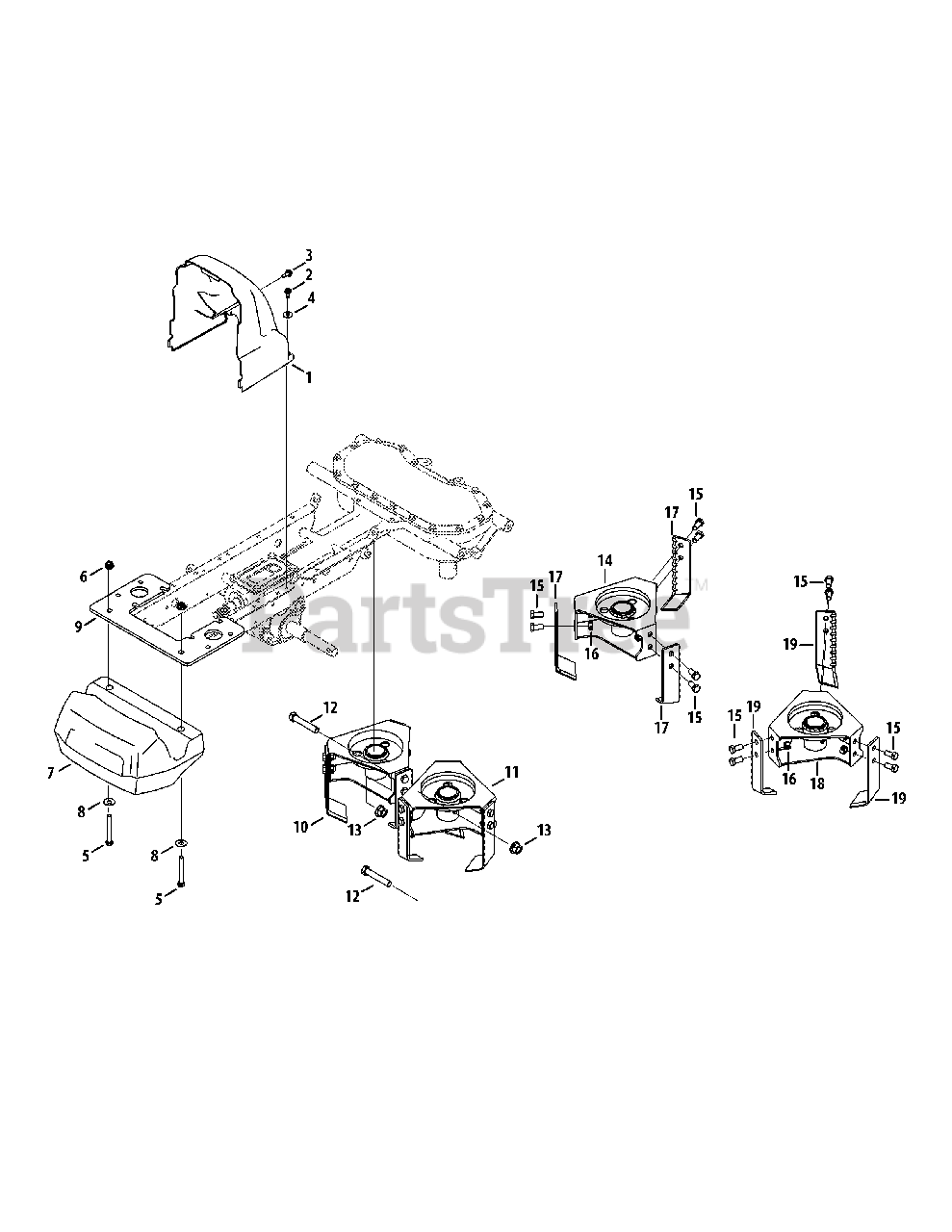

21A-70M8711 - Troy-Bilt Bronco Axis Vertical-Tine Tiller (2015) Tine Assembly Parts Diagram

Bronco Axis Vertical-Tine Tiller

Tine Assembly Parts Diagram

  • Title

1

Troy-Bilt 731-06170

Belt Cover
(Superseded to 731-11121)

$33.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0599

Screw, 1/4-20 x 0.500

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0896

Self Tapping Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0173

Washer, Flat, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

5

Troy-Bilt 710-0378

Hex Screw, 5/16-18, 2.50, Gr5

$4.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18, B&S

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-09227

Weight

$79.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

9

Troy-Bilt 786-05037-0638

Bumper Mounting Plate

$42.99

$

Usually ships in 3-6 days

0

10

N/A

Tine Assembly, RH

$

$

Not available

11

N/A

Tine Assembly, LH

$

$

Not available

12

Troy-Bilt 710-0561

Hex Cap Screw, 7/16-20 x 2.5 (Grade 5)

$9.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 642-05034-0637

Tine Bracket, RH

$84.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-0216

Hex Cap Screw, 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

16

Troy-Bilt 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 742-05076-0637

Tine Blade, RH

$11.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 642-05035-0637

Tine Bracket, LH

$84.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 742-05091-0637

Tine Blade, LH

$11.99

$

Usually ships in 3-6 days

0
