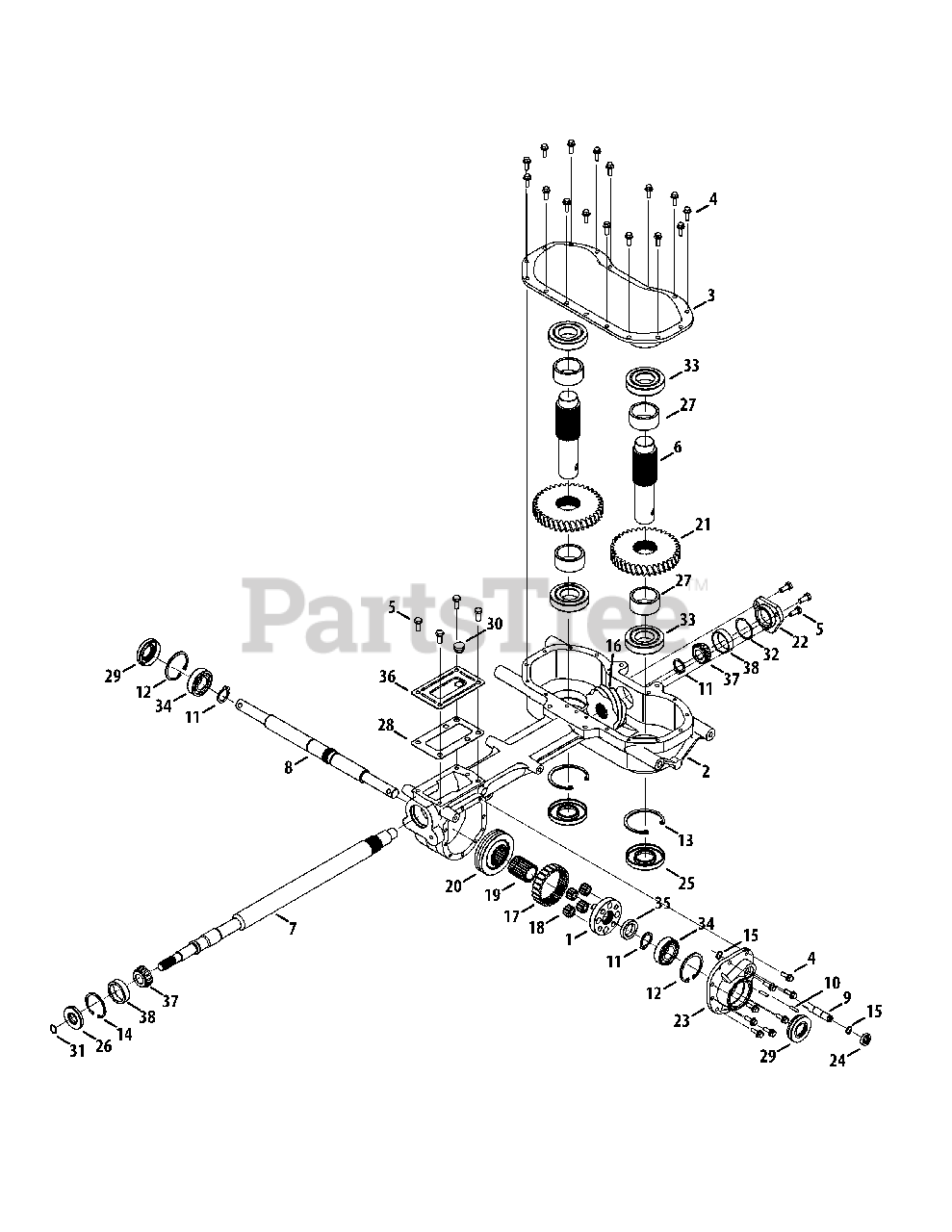

21A-70M8766 - Troy-Bilt Bronco Axis Vertical-Tine Tiller (2015) Transmission Parts Diagram

Bronco Axis Vertical-Tine Tiller

Transmission Parts Diagram

  • Title

1

Troy-Bilt 618-07045

Planetary Carrier
(Superseded to 918-07045)

$66.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 619-05078

Housing Assembly
(Superseded to 919-05078)

$

$

Not available

3

Troy-Bilt 619-05080

Cover
(Superseded to 919-05080)

$154.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04666

Hex Flange Screw, 1/4-20, .75, Gr5

$6.99

$

In Stock, Qty 7

0

5

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 711-06217

Tine Shaft
(Superseded to 911-06217)

$88.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-06224

Shaft, Worm
(Superseded to 911-06224)

$120.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-06233

Shaft, Wheel
(Superseded to 911-06233)

$97.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 711-06255

Shaft, Drive

$24.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 915-0221

Pin, Dowel, 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-0127

Snap Ring, 1.00 Shaft Dia.

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 716-0204

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 716-0394

Retaining Ring

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 716-04102

Retaining Ring, Int

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 716-0865

Snap Ring

$4.49

$

In Stock, only 3 left!

0

16

Troy-Bilt 717-05197

Gear, 7t
(Superseded to 917-05197)

$147.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 717-05204

Gear, 48t
(Superseded to 917-05204)

$

$

Not available

18

Troy-Bilt 717-05213

Gear, 12t
(Superseded to 917-05213)

$20.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 717-05217

Gear, 24t
(Superseded to 917-05217)

$42.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 717-05218

Gear, 61t
(Superseded to 917-05218)

$158.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 717-05232

Gear, 38t
(Superseded to 917-05232)

$146.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 918-04435

Bearing Cover

$22.99

$

Usually ships in 3-6 days

0

23

MTD 919-04493A

Wheel Cover

$51.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 721-0393

Oil Seal

$12.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 921-04003

Seal, Oil

$41.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 921-04030

Oil Seal, .75 x 1.783

$12.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 750-06183

Spacer, 1.625 x 2.125 x 1.010

$10.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 921-04229

Gear Housing Gasket

$6.99

$

In Stock, Qty 15

0

29

Troy-Bilt 721-04232

Oil Seal, 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 721-04271

Rubber Oil Plug

$5.49

$

In Stock, Qty 10

0

31

Troy-Bilt 732-0614

Ring, Wire

$6.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-04305

Washer, Flat, 1.50 x 1.75 x .062

Note: The flat washers listed are used as required to obtain .005 to .015 in allowable end play on the drive shaft.

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-04306

Washer, Flat, 1.50 x 1.75 x .005

Note: The flat washers listed are used as required to obtain .005 to .015 in allowable end play on the drive shaft.

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-04307

Washer, Flat, 1.50 x 1.75 x .03

Note: The flat washers listed are used as required to obtain .005 to .015 in allowable end play on the drive shaft.

$4.49

$

In Stock, Qty 16

0

32

Troy-Bilt 736-04308

Washer, Flat, 1.50 x 1.75 x .010

Note: The flat washers listed are used as required to obtain .005 to .015 in allowable end play on the drive shaft.

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-1100

Bearing Ball

$36.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 741-3114

Ball Bearing, 1 x 52 x 15 x 6205-1

$26.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 750-06181

Spacer, 1.010 x 1.500 x 0.175

$5.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 786-04366

Transmission Cover

$21.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

Troy-Bilt 618-07010

Transmission Assembly
(Superseded to 918-07010)

Note: (not shown)

$1229.99

$

Usually ships in 3-6 days

0
