21A-70M8766 - Troy-Bilt Bronco Axis Vertical-Tine Tiller (2016) Handle Parts Diagram

Bronco Axis Vertical-Tine Tiller

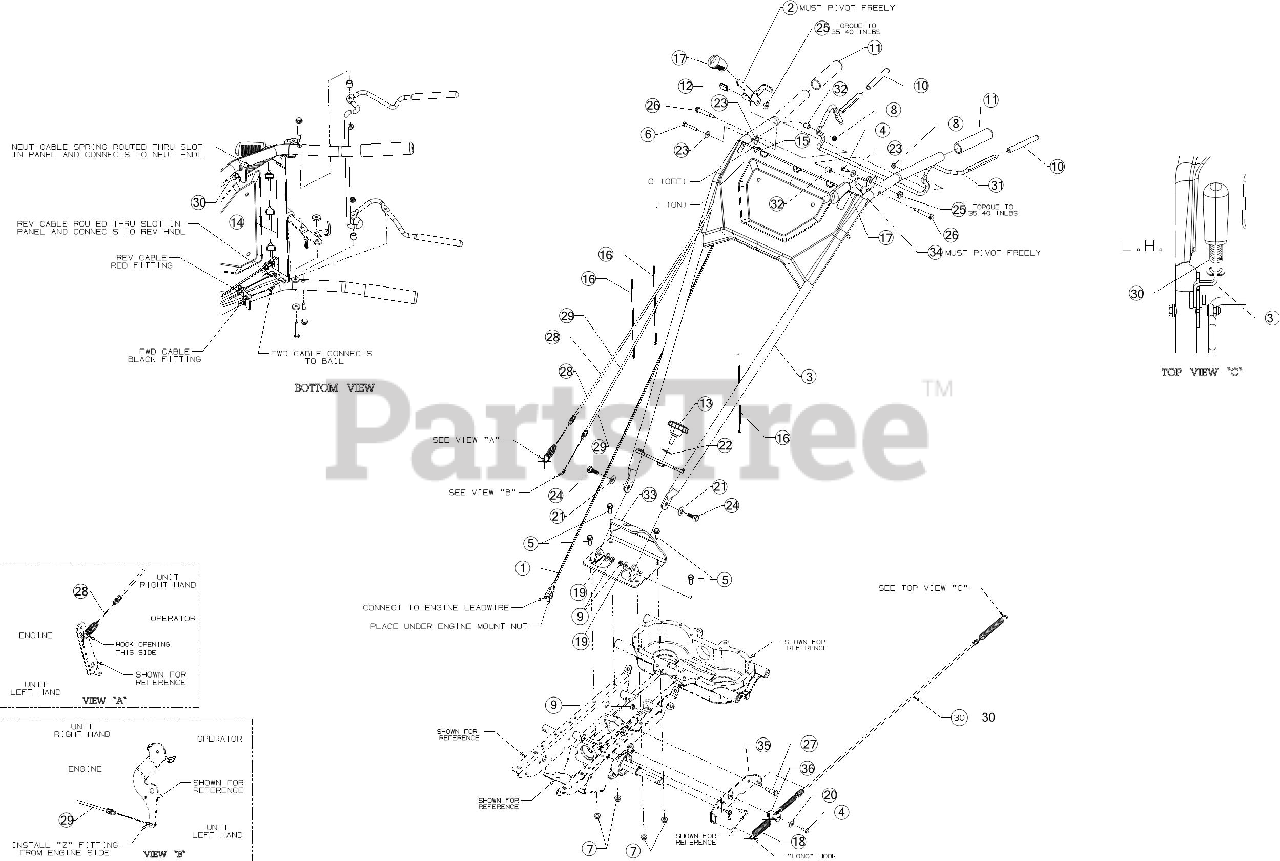

Handle Parts Diagram

  • Title

1

Troy-Bilt 929-04157

HARNESS ADAPTER ASSEMBLY

$23.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 686-04135-0638

REVERSE HANDLE ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 686-05012-0638

HANDLE ASSEMBLY

$

$

Not available

4

Troy-Bilt 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 6

0

6

Troy-Bilt 710-3288

BOLT 1/4-20X1.62 GR5

$6.99

$

In Stock, Qty 15

0

7

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

10

Troy-Bilt 720-0269

CLUTCH GRIP

$4.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 720-0274

GRIP

$11.99

$

In Stock, Qty 6

0

12

Troy-Bilt 920-04173

GRIP

$4.49

$

In Stock, Qty 5

0

13

Troy-Bilt 720-05076

STAR KNOB 3/8-16

$18.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 721-04687

TAPE FOAM 1.25 x 13.53 x .10

$12.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 725-2009

ROCKER SWITCH

$5.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-04047

CABLE TIE

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-04735

BRAKE HANDLE GRIP

$20.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 732-05201

EXTENSION SPRING

$5.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

20

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 10

0

21

Troy-Bilt 736-0407

BELL WASHER

$3.99

$

In Stock, Qty 7

0

22

Troy-Bilt 736-0741

BELL WASHER

$4.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 936-0176

FLAT WASHER
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 5

0

25

Troy-Bilt 738-0440

SHOULDER SPACER

$5.99

$

In Stock, Qty 6

0

26

Troy-Bilt 738-05077

SHOULDER SCREW .375 x 1.62 x 1/4-20

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 738-0754

SHOULDER SCREW

$4.49

$

In Stock, Qty 5

0

28

Troy-Bilt 946-04413A

FORWARD CABLE

$35.99

$

In Stock, Qty 5

0

29

Troy-Bilt 946-04414A

REVERSE CABLE

$38.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 946-05168

NEUTRAL CABLE

$45.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 747-06372-0637

CLUTCH BAIL

$38.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 750-06198

SPACER

$6.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 786-05015-0638

HANDLE MOUNT PLATE

$44.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 786-05018

NEUTRAL HANDLE

$33.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 786-05019A-0638

NEUTRAL CABLE BRACKET

$12.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 786-05020

PIVOT LEVER

$

$

Not available
