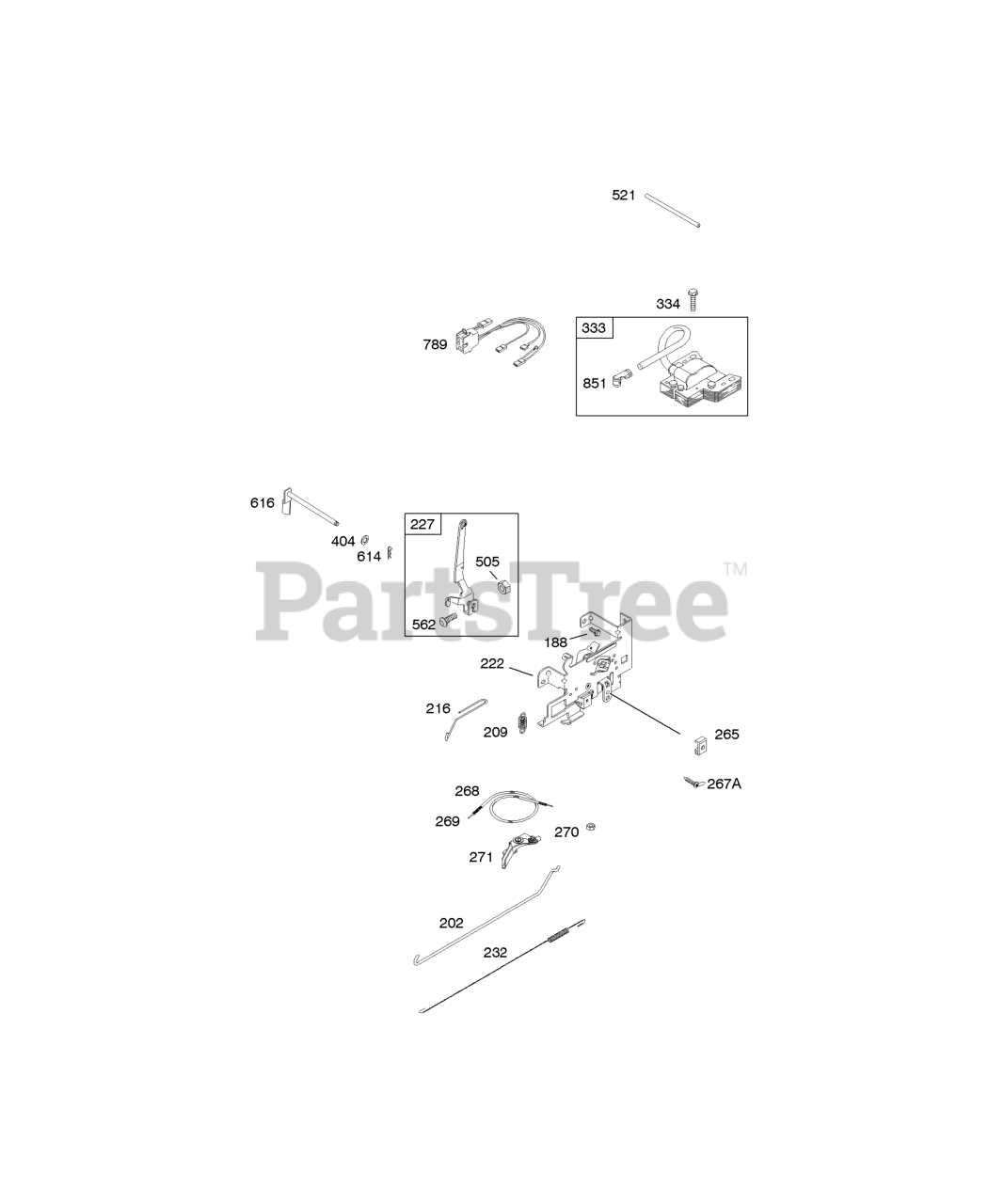

21A707-0223-E1 - Briggs & Stratton Vertical Engine Controls, Ignition Parts Diagram

Vertical Engine

Controls, Ignition Parts Diagram

  • Title

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 20+

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$10.99

$

In Stock, Qty 20+

0

209

Briggs & Stratton 690480

Spring-Governor
(Superseded to 792602)

$3.99

$

In Stock, Qty 7

0

216

Briggs & Stratton 691840

LINK, Choke

$9.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$28.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$12.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 2 left!

0

267A

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

Usually ships in 2-12 days

0

271

Briggs & Stratton 691028

Lever-Control

$50.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$4.49

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 8

0

521

Briggs & Stratton 690581

Shield-Cable

$

$

Not available

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 16

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$15.99

$

In Stock, only 2 left!

0

789

Briggs & Stratton 698329

HARNESS, Wiring

$40.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$6.49

$

In Stock, Qty 7

0
