21AA40M1000 - Yard Machines Tiller (2013) Handle & Tine Shield Parts Diagram

Tiller

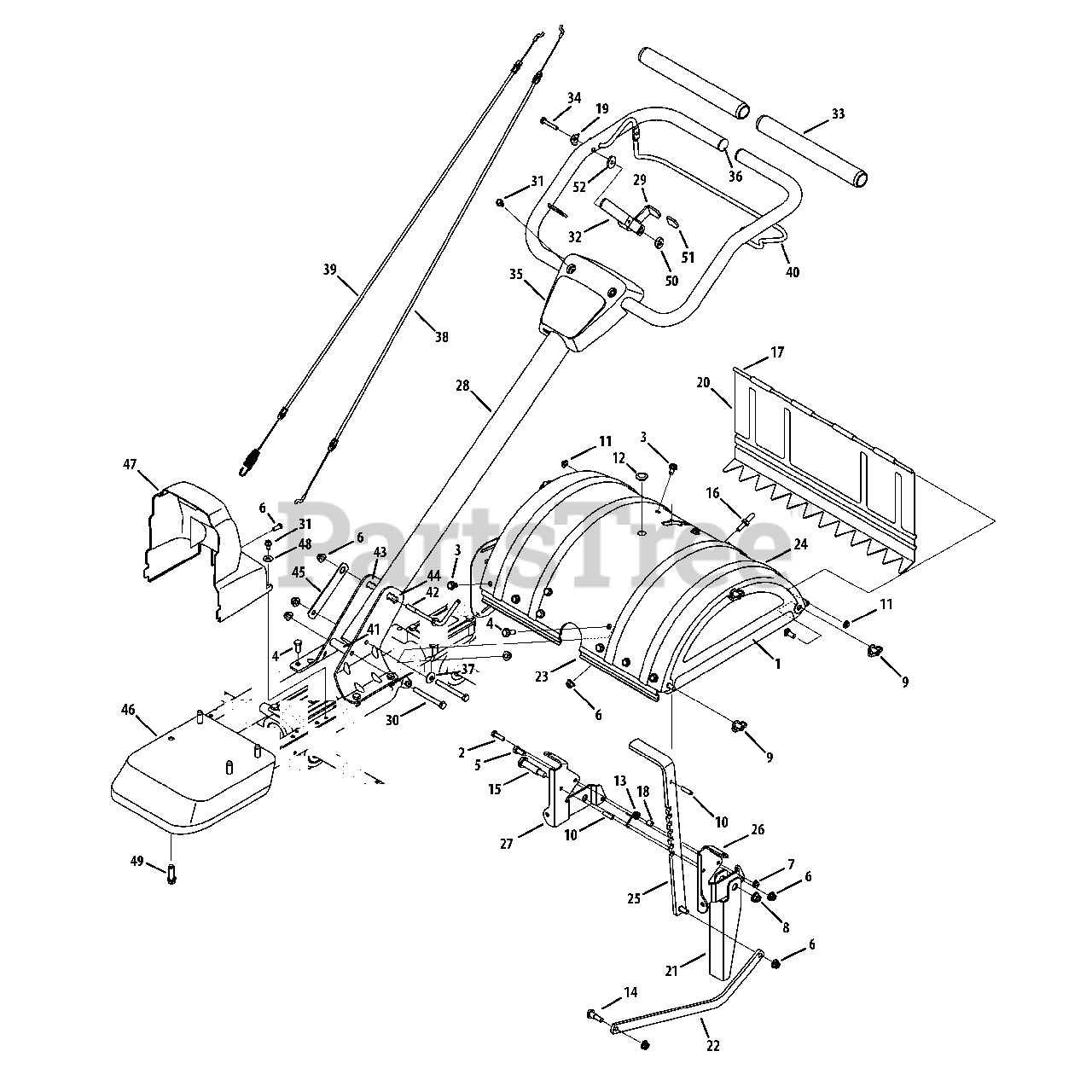

Handle & Tine Shield Parts Diagram

  • Title

1

MTD 686-0044B-0638

End Cover Assembly

$78.99

$

Usually ships in 3-6 days

0

2

MTD 710-0597

Hex Head Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 19

0

3

MTD 710-0604A

Hex Head Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1238

Hex Head Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 9

0

5

MTD 710-3008

Hex Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0896

Self Tapping Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0421

Wing Nut, 5/16-18

$6.49

$

In Stock, Qty 20+

0

10

MTD 715-0108

Spirol Pin

$4.99

$

In Stock, Qty 20+

0

11

MTD 926-0106

Cap Nut, 1/4 Rod
(Superseded to 726-0106)

$

$

Not available

12

MTD 731-05512

Hole Plug

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 14

0

14

MTD 738-04320

Shoulder Screw, .405 x .435 5/16-18

$4.99

$

In Stock, only 4 left!

0

15

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

16

MTD 938-0849

Stop Screw

$9.49

$

Usually ships in 3-6 days

0

17

MTD 747-0432

Tiller Flap Rod

$12.99

$

In Stock, only 1 left!

0

18

MTD 750-05349

Spacer

$3.99

$

Usually ships in 3-6 days

0

19

MTD 936-0451

Saddle Washer, .320 x .930 x .060
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

20

MTD 786-0113A-0638

Rear Tine Shield

$83.99

$

Usually ships in 3-6 days

0

21

MTD 786-04092-0638

Reverse Stop Arm

$25.99

$

Usually ships in 3-6 days

0

22

MTD 786-04104-0638

Drag Bar

$34.99

$

Usually ships in 3-6 days

0

23

MTD 786-04352A-0638

Tine Shield Mounting Bracket

$29.99

$

Usually ships in 3-6 days

0

24

MTD 786-04355A-0638

Tine Shield

$76.99

$

Usually ships in 3-6 days

0

25

MTD 786-04356-0638

Adjustable Depth Bar
(Superseded to 786-04356A-0638)

$32.99

$

Usually ships in 3-6 days

0

26

MTD 786-04363-0638

Tail Bracket, LH

$23.99

$

In Stock, only 1 left!

0

27

MTD 786-04364-0638

Tail Bracket, RH

$23.99

$

In Stock, only 1 left!

0

28

MTD 649-04098A-0638

Upper Handle Assembly
(Superseded to 649-04098B-0638)

$93.99

$

Usually ships in 3-6 days

0

29

MTD 686-04135-0638

Reverse Handle Assembly

$23.99

$

Usually ships in 3-6 days

0

30

MTD 710-0189

Hex Head Screw, 5/16-18 x 3.00

$5.99

$

In Stock, Qty 5

0

31

MTD 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-04735

Handle Select

$19.99

$

In Stock, only 3 left!

0

33

MTD 720-0278A

Foam Handle Grip

$21.99

$

In Stock, Qty 5

0

34

MTD 710-3288

Hex Head Screw, 1/4-20 x 1.62

$6.49

$

In Stock, Qty 15

0

35

MTD 731-06253A

Handle Cover
(Superseded to 731-06253B)

$21.99

$

Usually ships in 3-6 days

0

36

MTD 735-04105

Tine Shield Plug
(Superseded to 735-04105A)

$5.49

$

Usually ships in 3-6 days

0

37

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

38

MTD 946-04504

Reverse Cable

$31.99

$

In Stock, Qty 14

0

39

MTD 946-04506

Forward Cable

$33.99

$

In Stock, Qty 19

0

40

MTD 747-04789-0637

Clutch Bail
(Superseded to 747-04789A-0637)

$27.99

$

Usually ships in 3-6 days

0

41

MTD 750-0885A

Spacer, .322 x .625 x 2.00

$10.99

$

Usually ships in 3-6 days

0

42

MTD 786-0340B

Handle Crank

$17.99

$

Usually ships in 3-6 days

0

43

MTD 786-04344-0638

Handle Bracket, RH

$31.99

$

Usually ships in 3-6 days

0

44

MTD 786-04345-0638

Handle Bracket, LH

$31.99

$

Usually ships in 3-6 days

0

45

MTD 786-04358

Retainer Nut Bracket

$9.99

$

Usually ships in 3-6 days

0

46

MTD 786-04360-0638

Front Bumper

$47.99

$

Usually ships in 3-6 days

0

47

MTD 731-06529

Belt Cover

$41.99

$

In Stock, only 1 left!

0

48

MTD 736-0173

Flat Washer, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

49

MTD 710-0502A

SEMS Screw, 3/8-16

$6.49

$

In Stock, Qty 7

0

50

MTD 738-0440

Spacer, .375 x .165

$5.49

$

In Stock, Qty 6

0

51

MTD 720-04173

Reverse Handle Grip
(Superseded to 920-04173)

$3.99

$

In Stock, Qty 5

0

52

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0
