21AA40M7752 - Yard Machines 400 Series Tiller (2016) Tine Shield Assembly Parts Diagram

400 Series Tiller

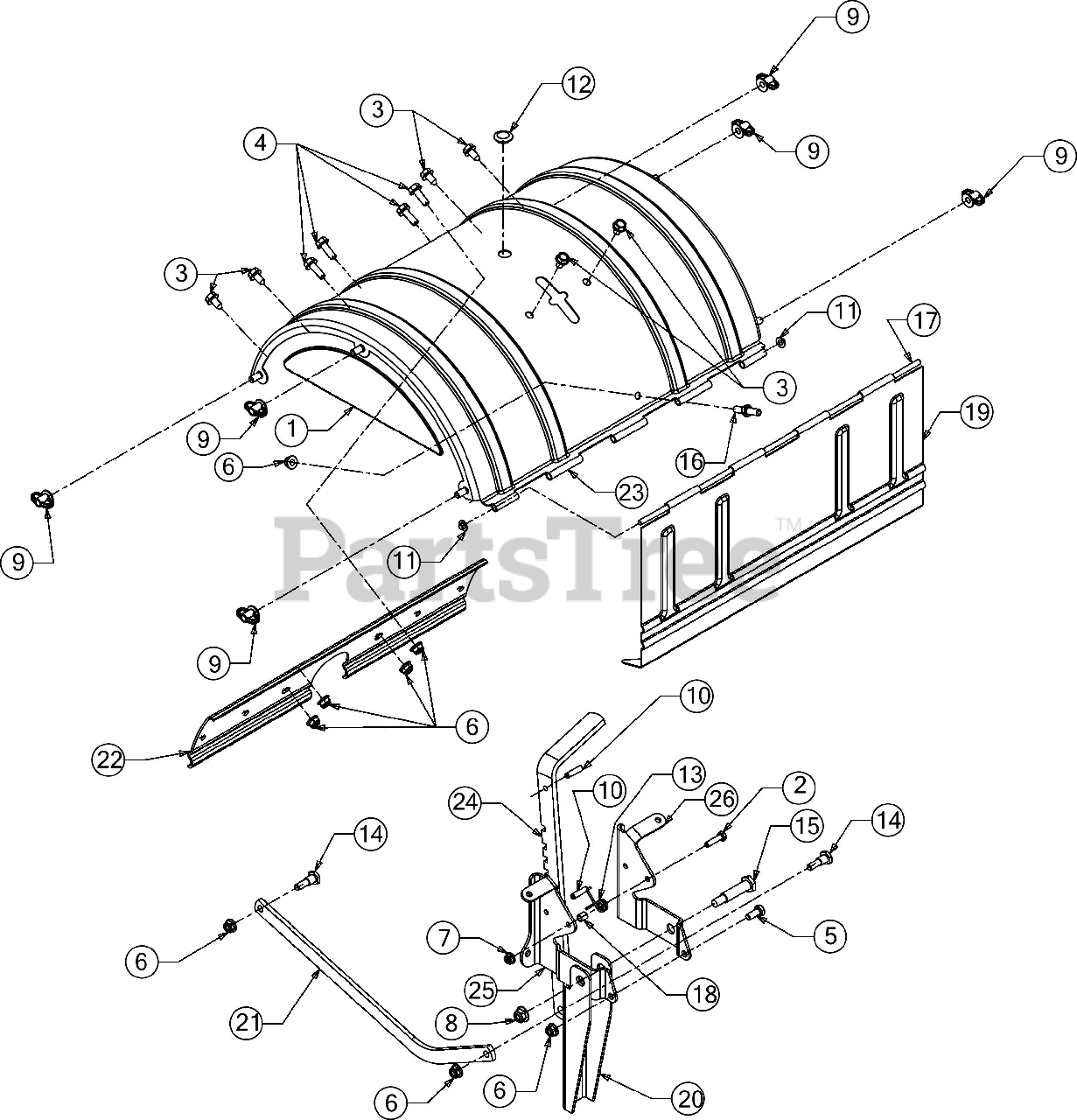

Tine Shield Assembly Parts Diagram

  • Title

1

MTD 686-0044B-0638

END COVER ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

1a

MTD 710-1307

CLINCH STUD 5/16-18 X .75

$6.49

$

Usually ships in 3-6 days

0

2

MTD 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 19

0

3

MTD 710-0604A

SCREW 5/16-18 X .625

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1238

SCREW 5/16-18 X .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 9

0

5

MTD 710-3008

SCREW 5/16-18 X .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0421

WING NUT 5/16-18

$6.49

$

In Stock, Qty 20+

0

10

MTD 715-0108

SPRING PIN 1/4 X 1.00

$4.99

$

In Stock, Qty 20+

0

11

MTD 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

12

MTD 731-05512

DECK HOLE PLUG

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 14

0

14

MTD 738-04320

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

15

MTD 938-0533

SHOULDER BOLT .498 X 1.635:3/8-16
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

16

MTD 938-0849

SHOULDER SCREW

$9.49

$

Usually ships in 3-6 days

0

17

MTD 747-0432

TILLER FLAP ROD

$12.99

$

In Stock, only 1 left!

0

18

MTD 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

19

MTD 786-0113A-0638

REAR TINE SHIELD

$83.99

$

Usually ships in 3-6 days

0

20

MTD 786-04092-0638

REVERSE STOP ARM

$25.99

$

Usually ships in 3-6 days

0

21

MTD 786-04104-0638

DEPTH DRAG BAR

$34.99

$

Usually ships in 3-6 days

0

22

MTD 786-04352A-0638

TINE BRACKET

$29.99

$

Usually ships in 3-6 days

0

23

MTD 786-04355A-0638

TINE SHIELD

$76.99

$

Usually ships in 3-6 days

0

24

MTD 786-04356A-0638

DEPTH ADJUSTMENT BRACKET

$32.99

$

Usually ships in 3-6 days

0

25

MTD 786-04363-0638

TAIL BRACKET (LH)

$23.99

$

In Stock, only 1 left!

0

26

MTD 786-04364-0638

TAIL BRACKET (RH)

$23.99

$

In Stock, only 1 left!
