21AA412B033 - MTD Tiller (2001) (Ace Hardware) Chain Case Parts Diagram

Tiller

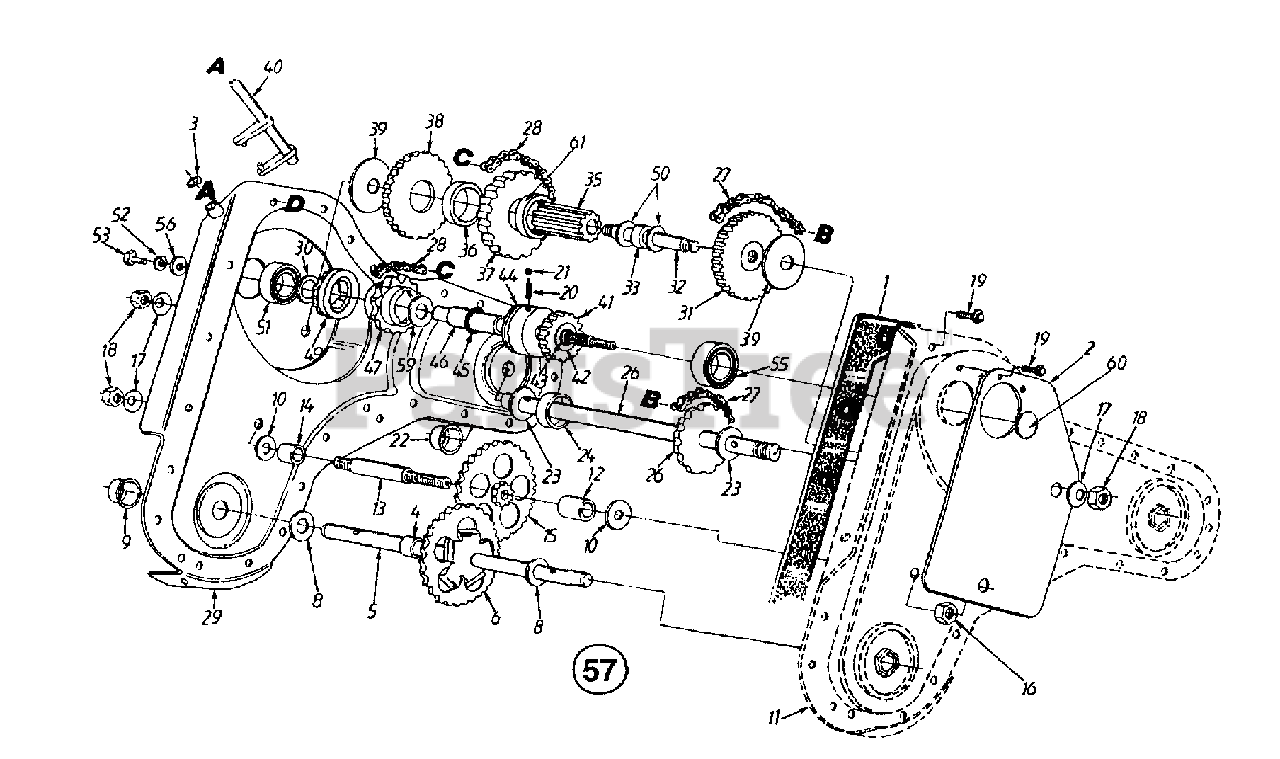

Chain Case Parts Diagram

  • Title
1

MTD Part# 721-0295

Chain Case Gasket
Usually ships same day

Not available

$

$

2

MTD Part# 786-0086

Reinforcement Plate

Variations

MTD Part# 786-0086-0637

PLATE REINFORCEMEN - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$24.57

0

Usually ships same day

$

$

3

MTD Part# 716-0865

Snap Ring
Usually ships in 1 day

$

$3.10

0

4

MTD Part# 750-0938

Spacer.735" I.D. x .886" O.D.
(Superseded to 950-0938)
Usually ships in 5 to 10 days

$

$3.02

0

5

MTD Part# 611-0058

Wheel Shaft
(Superseded to 753-05577)
Usually ships same day

Not available

$

$

6

MTD Part# 717-1458

Spur Gear 46T
Usually ships in 5 to 10 days

$

$120.76

0

8

MTD Part# 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.
(Superseded to 936-0351)
Usually ships in 5 to 10 days

$

$3.12

0

9

MTD Part# 721-0379

Shaft Seal
Usually ships in 1 day

$

$13.70

0

10

MTD Part# 736-0518

Thr.Wash 445 I.D.x1.92 O.D.x
Usually ships in 1 day

$

$7.78

0

11

MTD Part# 686-0039

Gear Case Ass'y. Half-L.H.

Variations

MTD Part# 686-0039-0637

CASE ASM-GEAR HALF - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

12

MTD Part# 750-0935

Spacer.635" I.D. x 1" O.D. x .78
Usually ships in 5 to 10 days

$

$5.82

0

13

MTD Part# 738-0885

Jack Shaft 2.06" Lg.
Usually ships same day

Not available

$

$

14

MTD Part# 750-0936

Spacer .635" I.D. x 1" O.D. x .37" Thk.
(Superseded to 950-0936)
Usually ships in 5 to 10 days

$

$4.81

0

15

MTD Part# 617-0004

Gear Idler Ass'y.
(Superseded to 917-0004)
Usually ships in 5 to 10 days

$

$134.65

0

16

MTD Part# 712-3067

Hex Patch L-Nut 7/16-20 Thd.
Usually ships in 5 to 10 days

$

$4.81

0

17

MTD Part# 736-0407

Bell-Wash. .45" I.D. x 1" O.D.
Usually ships in 1 day

$

$2.88

0

18

MTD Part# 712-0378

Hex Nut 7/16-20 Thd.
Usually ships in 1 day

$

$4.81

0

19

MTD Part# 710-0896

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

20

MTD Part# 732-0863

Spring Detent
(Superseded to 932-0863)
Usually ships in 5 to 10 days

$

$2.94

0

21

MTD Part# 741-0862

Ball Detent
Usually ships in 1 day

$

$3.11

0

22

MTD Part# 721-0378

Shaft Seal
(Superseded to 921-0378)
Usually ships in 1 day

$

$14.03

0

23

MTD Part# 736-0163

Thrust Wash. 1.03" I.D. x 1.62"
(Superseded to 936-0163)
Usually ships in 5 to 10 days

$

$3.21

0

24

MTD Part# 750-0570

Spacer 1" I.D. x 2" O.D. x .5" Thk.
(Superseded to 950-0570)
Usually ships in 5 to 10 days

$

$7.07

0

26

MTD Part# 611-0021

Tine Shaft Ass'y.
(Superseded to 611-0021A)
Usually ships in 1 day

$

$108.84

0

27

MTD Part# 713-0226

Chain #50 5/8" Pitch x 52 Links-Endless
(Superseded to 913-0226)
Usually ships in 5 to 10 days

$

$80.94

0

28

MTD Part# 713-0233

Chain-#41 1/2" Pitch x 30 Links-Endless
Usually ships in 1 day

$

$28.98

0

29

MTD Part# 686-0038

Gear Case Ass' y. Half-R.H.

Variations

MTD Part# 686-0038-0637

CASE ASM-GEAR HALF - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 686-0038-0638

CASE ASM-GEAR HALF - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$200.37

0

30

MTD Part# 736-0541

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0541)
Usually ships same day

Not available

$

$

31

MTD Part# 617-0002

Gear and Sprocket Ass'y.
(Superseded to 917-0003)
Usually ships same day

Not available

$

$

32

MTD Part# 738-0884

Jack Shaft 5" Lg.
Usually ships same day

Not available

$

$

33

MTD Part# 750-0931

Spacer.636" I.D. x .86" O.D.
Usually ships same day

Not available

$

$

35

MTD Part# 717-1411

Spur Gear 10T
(Superseded to 917-1411)
Usually ships in 5 to 10 days

$

$26.10

0

36

MTD Part# 750-0930

Spacer 1.5" I.D. x 1.76" O.D.
(Superseded to 950-0930)
Usually ships in 5 to 10 days

$

$7.29

0

37

MTD Part# 713-0436

Sprocket-#41 Chain
Usually ships same day

Not available

$

$

38

MTD Part# 717-1405

Reverse Gear 46T
Usually ships same day

Not available

$

$

39

MTD Part# 736-0518

Thrust Wash. .445" I.D. x 1.92"
Usually ships in 1 day

$

$7.78

0

40

MTD Part# 618-0245B

Shifter Ass'y.
Usually ships in 1 day

$

$91.50

0

41

MTD Part# 717-1409

Spur Gear 17T
Usually ships in 1 day

$

$15.44

0

42

MTD Part# 736-0442

Fl-Wash. .69" I.D. x 1.06" O.D.
Usually ships same day

Not available

$

$

43

MTD Part# 732-0614

Wire Ring
Usually ships in 1 day

$

$4.31

0

44

MTD Part# 718-0234

Clutch Collar
Usually ships in 1 day

$

$38.27

0

45

MTD Part# 716-0235

Retaining Ring .875" Shaft
(Superseded to 916-0235)
Usually ships in 5 to 10 days

$

$7.29

0

46

MTD Part# 711-1087

Drive Shaft
Usually ships in 5 to 10 days

$

$147.84

0

MTD Part# 718-0237

Key, Clutch
(Superseded to 918-0237)

Note: (Not Shown); 2 used

Usually ships same day

Not available

$

$

47

MTD Part# 713-0435

Sprocket 11T
Usually ships in 1 day

$

$15.11

0

49

MTD Part# 717-1451A

Spur Gear 16T
Usually ships in 1 day

$

$20.90

0

50

MTD Part# 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D.
(Superseded to 936-0336)
Usually ships in 1 day

$

$3.11

0

51

MTD Part# 741-0124

Ball Bearing .669" I.D.
(Superseded to 941-0600)
Usually ships in 1 day

$

$18.53

0

52

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

53

MTD Part# 710-0258

Hex Bolt 1 /4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

55

MTD Part# 741-0563

Ball Bearing
(Superseded to 941-0563)
Usually ships in 1 day

$

$26.87

0

56

MTD Part# 736-0512

Fl-Wash. .281" I.D. x .875" O.D.
Usually ships in 5 to 10 days

$

$3.23

0

57

MTD Part# 686-0094

Gear Case Ass'y. Comp.
(Superseded to 753-05328)
Usually ships same day

Not available

$

$

?58

MTD Part# 718-0237

Key-Drive Shaft
(Superseded to 918-0237)

Note: (Not Shown)

Usually ships same day

Not available

$

$

59

MTD Part# 736-0265

Fl-Wash. .88" I.D. x 1.5" O.D.
Usually ships same day

Not available

$

$

60

MTD Part# 726-0331

Button Plug
Usually ships same day

Not available

$

$

61

MTD Part# 750-0987

Spacer 1.52" I.D.
(Superseded to 950-0987)
Usually ships same day

Not available

$

$

MTD Part# 737-0300

Grease (40 oz. Req'd.)
(Superseded to 737-0300A)
Usually ships in 1 day

$

$27.98

0
