21AB454B034 - Ryobi Tiller (2003)

Tiller

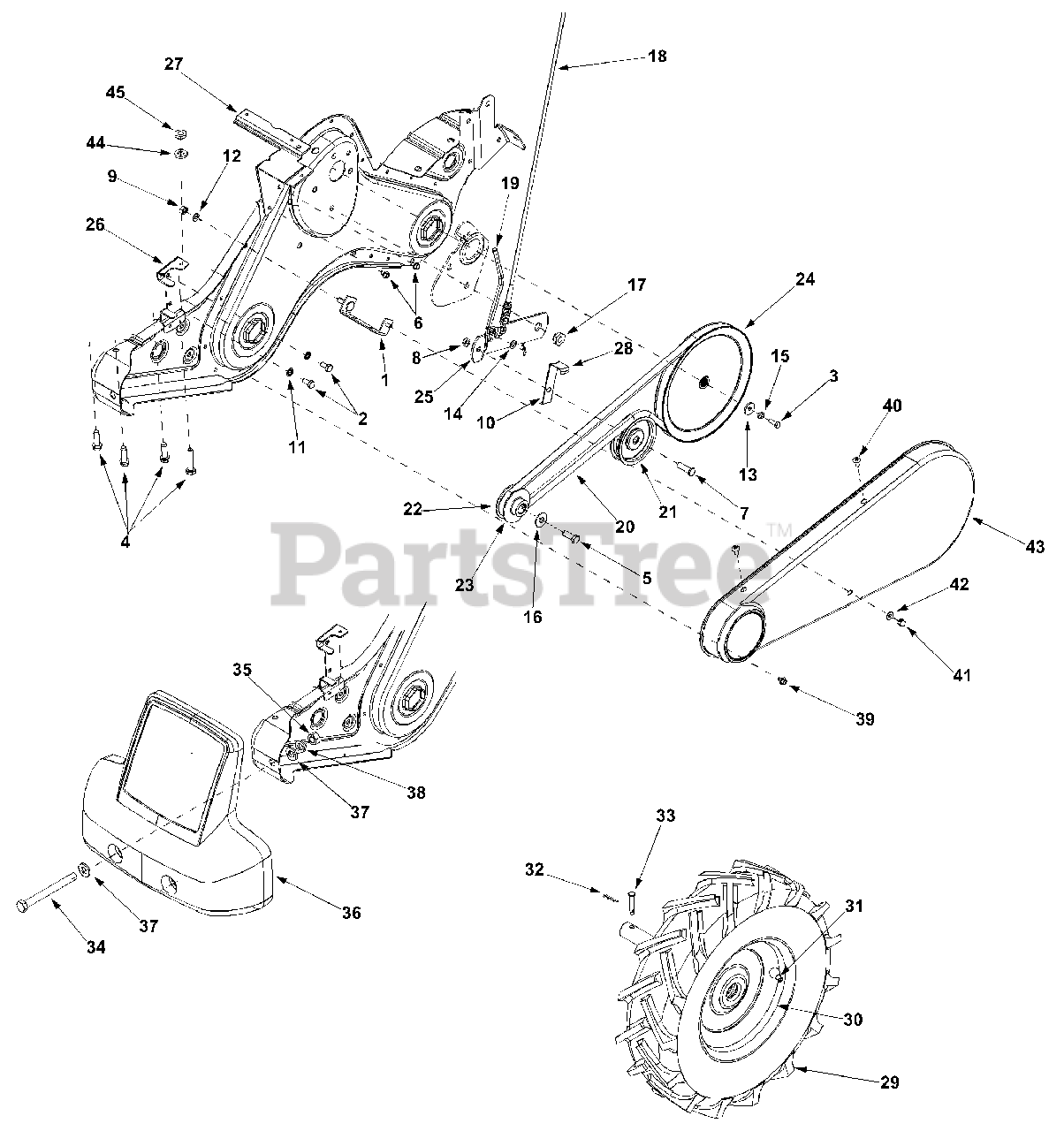

21AB454B034 - Ryobi Tiller (2003) > Parts Diagrams (3) > Drive

  • Title
686-0111

1

Belt Cover Bracket Ass'y

Part# 686-0111

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET ASSY-COVER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.71

710-0237

2

Hex Bolt 5/16-24 x .62"

Part# 710-0237

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0412

3

Hex Bolt 1/4-28 x .75"

Part# 710-0412

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.68

710-0502A

4

Hex Washer Screw 3/8-16 x 1.25"

Part# 710-0502A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.24

710-0152

5

Hex Bolt 3/8-24 x 1.0

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0599

6

Hex Washer Screw

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0723

7

Hex Cap Screw 3/8-16 x 1.25

Part# 710-0723

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

712-0266

8

Lock Jam Nut 3/8-16

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.55

712-0267

9

Hex Nut 5/16-18

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

714-0104

10

Internal Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0104

11

Hairpin Clip

Part# 736-0104 (Superseded to 936-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

736-0119

12

Lock Washer 5/16"

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0176

13

Flat Washer .25 ID x .93 OD

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0271

14

Spring Washer .317 ID x .625 OD

Part# 736-0271 (Superseded to 936-0271)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0329

15

Lock Washer 1/4" ID

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0452

16

Bell Washer .396 ID x 1.14 OD

Part# 736-0452 (Superseded to 936-0452)

OEM Warranty Repair Part for MTD

Not available

738-0876

17

Shoulder Nut 7/16-20

Part# 738-0876 (Superseded to 738-0876A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.07

746-1117

18

Clutch Cable

Part# 746-1117 (Superseded to 946-1117)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.61

747-1159

19

Idler Pulley Rod

Part# 747-1159

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.94

754-0434

20

V-Belt

Part# 754-0434 (Superseded to 954-0434)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.67

756-0405

21

Flat Idler w/Flange 3.75 OD

Part# 756-0405

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $49.07

756-0971

22

Outer Engine Pulley Half

Part# 756-0971

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.34

756-0972

23

Inner Engine Pulley Half

Part# 756-0972

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.50

756-1162

24

Input Pulley

Part# 756-1162

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $59.19

786-0064A

25

Idler Bracket

Part# 786-0064A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.24

786-0186

26

Belt Keeper Bracket

Part# 786-0186

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-BELT KEEPE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.07

786-0187

27

Shift Cover Bracket

Part# 786-0187

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-SHIFT COVE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.07

786-0193

28

Idler Belt Keeper

Part# 786-0193

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

KEEPER-IDLER BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.65

634-0238

29

Wheel Assembly RH 16.0 x 4.6

Part# 634-0238

OEM Warranty Repair Part for MTD

Not available

634-0239

Wheel Assembly LH 16.0 x 4.6

Part# 634-0239

OEM Warranty Repair Part for MTD

Not available

734-0808

Tire Only 16.2 x 4.6

Part# 734-0808

OEM Warranty Repair Part for MTD

Variations

Carlisle (0901)

TIRE-TILLER AG

Part# Carlisle (0901)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $81.02

Dico (0902)

TIRE-TILLER AG

Part# Dico (0902)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $81.02

Duro (0905)

TIRE-TILLER AG

Part# Duro (0905)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $81.02

634-0108

30

Wheel Rim Assembly

Part# 634-0108

OEM Warranty Repair Part for MTD

Variations

CUB BEIGE (0499)

No Longer Available

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Rim Only

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

No Longer Available

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

734-0255

31

Air Valve

Part# 734-0255 (Superseded to 934-0255)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

711-1017

32

Clevis Pin

Part# 711-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

714-0104

33

Internal Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0382

34

Hex Bolt 1/2-13 x 5.0

Part# 710-0382

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.82

712-0206

35

Hex Nut 1/2-13

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

723-0381

36

Counterweight

Part# 723-0381

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $105.42

736-0326

37

Flat Washer .510 ID x 1.0 OD

Part# 736-0326 (Superseded to 936-0326)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0921

38

Lock Washer 1/2

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0653

39

Hex Screw 1/4-20 x .375

Part# 710-0653

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-1017

40

Screw 1/4-14 x .625

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.37

712-0392

41

Lock Nut

Part# 712-0392

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

736-3020

42

Flat Washer .271 ID x .630 OD

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

784-0158A

43

Belt Cover

Part# 784-0158A

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

COVER-BELT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

MAJESTIC ORANGE (0606)

COVER-BELT

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

MTD/TROY-BILT RED (0638)

COVER-BELT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

CO-OP GREEN (0640)

COVER-BELT

Part# CO-OP GREEN (0640)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

COVER-BELT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

COVER-BELT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

COVER-BELT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

BLACK JACK (0691)

COVER-BELT

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

MASTERCRAFT GREEN (0709)

COVER-BELT

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

COVER-BELT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

FIRE RED (4015)

COVER-BELT

Part# FIRE RED (4015)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW 2 (4021)

COVER-BELT

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.89

736-0242

44

Bell Washer .340 ID x .872 OD

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3010

45

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87
