21AB45M5004 - MTD Gold Tiller (2013) Transmisson Parts Diagram

Gold Tiller

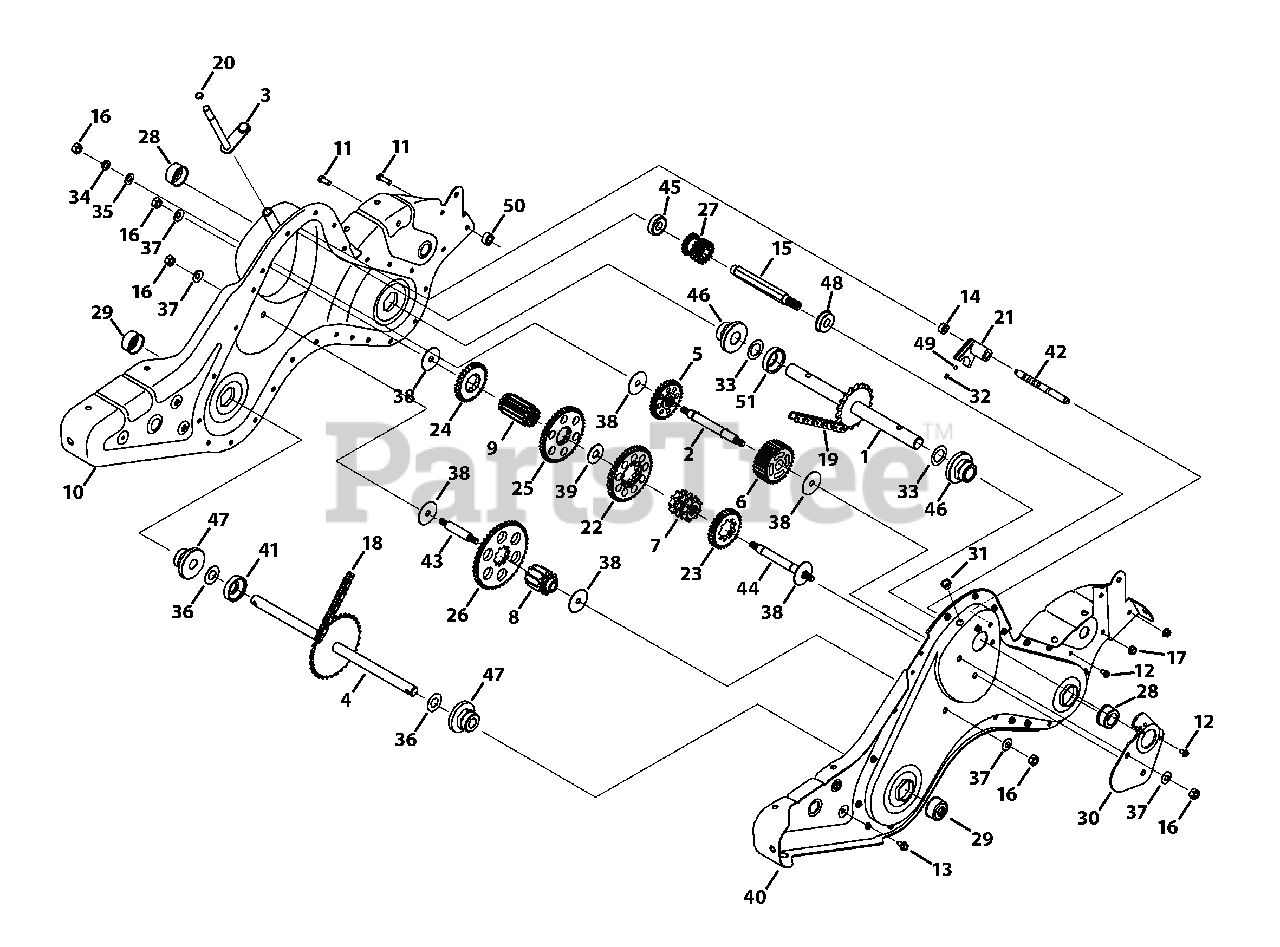

Transmisson Parts Diagram

  • Title
1

MTD Part# 611-0021

Shaft Assembly, Tine, 18T
(Superseded to 611-0021A)
Usually ships in 1 day

$

$108.84

0

2

MTD Part# 611-0128

Shaft Assembly, Jack
Usually ships in 1 day

$

$39.34

0

3

MTD Part# 611-0129

Shaft Assembly, Shift Input
Usually ships in 1 day

$

$41.50

0

4

MTD Part# 611-04074A

Shaft Assembly, Wheel, 33T
Usually ships in 5 to 10 days

$

$72.60

0

5

MTD Part# 617-0058

Gear Assembly, 30T Reverse Idler
Usually ships same day

Not available

$

$

6

MTD Part# 617-0059

Gear Assembly, 30T Tine Idler
(Superseded to 617-0059B)
Usually ships same day

Not available

$

$

7

MTD Part# 617-0060

Sprocket Assembly, 9T Tine Input
(Superseded to 617-0060A)
Usually ships in 1 day

$

$114.47

0

8

MTD Part# 617-0061

Sprocket Assembly, 10T Whl Input
Usually ships in 1 day

$

$82.52

0

9

MTD Part# 617-0062

Gear Assembly, 11T
(Superseded to 617-0062A)
Usually ships in 5 to 10 days

$

$88.00

0

10

MTD Part# 686-0108A-0637

RH Chain Case Housing Assembly
Usually ships in 5 to 10 days

$

$189.18

0

11

MTD Part# 710-0376

Hex Head Screw, 5/16-18 x 1.00
Usually ships in 1 day

$

$2.91

0

12

MTD Part# 710-1652

Screw, 1/4-20 x 0.625
Usually ships in 1 day

$

$3.06

0

13

MTD Part# 710-04484

Screw, :5/16-18 x 0.75
Usually ships in 1 day

$

$2.55

0

14

MTD Part# 750-0664

Spacer, .505 ID x .88 OD x .440
Usually ships in 1 day

$

$4.81

0

15

MTD Part# 711-1349A

Input Shaft, .75
Usually ships same day

Not available

$

$

16

MTD Part# 712-0378

Nut, Hex, 7/16-20
Usually ships in 1 day

$

$4.81

0

17

MTD Part# 712-04063

Nut, Flangelock, 5/16-18
Usually ships in 1 day

$

$2.83

0

18

MTD Part# 913-0367

Endless Chain, #420 x 50 Links
Usually ships in 5 to 10 days

$

$41.48

0

19

MTD Part# 913-0484

Endless Chain, #50 x 54 Links
Usually ships in 1 day

$

$60.27

0

20

MTD Part# 716-0865

Snap Ring, .500
Usually ships in 1 day

$

$3.10

0

21

MTD Part# 717-0853A

Clutch Collar
Usually ships in 5 to 10 days

$

$58.92

0

22

MTD Part# 717-1582A

Gear Spur, 44T
(Superseded to 717-1582B)
Usually ships in 1 day

$

$70.50

0

23

MTD Part# 717-1583

Gear Spur, 30T
Usually ships in 1 day

$

$37.58

0

24

MTD Part# 717-1584

Gear Spur, 30T
Usually ships in 5 to 10 days

$

$29.81

0

25

MTD Part# 717-1585

Gear Spur, 44T
Usually ships in 1 day

$

$59.36

0

26

MTD Part# 717-1587

Gear Spur, 44T
Usually ships in 1 day

$

$68.94

0

27

MTD Part# 717-1594

Gear Spur, 16T
Usually ships in 5 to 10 days

$

$140.02

0

28

MTD Part# 921-0378

Shaft Seal, 1.0
Usually ships in 1 day

$

$14.03

0

29

MTD Part# 721-0379

Shaft Seal, .75
Usually ships in 1 day

$

$13.70

0

30

MTD Part# 786-0238

Positioner Gear Bracket
(Superseded to 786-0238A)
Usually ships in 5 to 10 days

$

$15.03

0

31

MTD Part# 726-0277

Tapered Cap Plug
Usually ships in 5 to 10 days

$

$3.34

0

32

MTD Part# 732-04778

Compression Spring, .230 OD
Usually ships in 1 day

$

$2.90

0

33

MTD Part# 936-0163

Washer, Flat, 1.03 x 1.62 x .03
Usually ships in 5 to 10 days

$

$3.21

0

34

MTD Part# 936-0171

Washer, Lock, 7/16
Usually ships in 5 to 10 days

$

$3.10

0

35

MTD Part# 936-0226

Washer, Flat,.474 x .879 x .064
Usually ships in 1 day

$

$2.88

0

36

MTD Part# 936-0351

Washer, Flat, .760 ID x 1.50 OD
Usually ships in 5 to 10 days

$

$3.12

0

37

MTD Part# 736-0407

Washer, Bell,.45 x 1.00 x .062
Usually ships in 1 day

$

$2.88

0

38

MTD Part# 736-0518

Washer, Thrust, .445 x 1.92 x .060
Usually ships in 1 day

$

$7.78

0

39

MTD Part# 736-3088

Washer, Flat,1.595 x .635 x .062
Usually ships in 1 day

$

$3.09

0

40

MTD Part# 686-04129-0637

LH Chain Case Housing
Usually ships in 5 to 10 days

$

$161.57

0

41

MTD Part# 950-0671

Spacer, .75 x 2.0 x .50
Usually ships in 5 to 10 days

$

$8.03

0

42

MTD Part# 738-0645

Shaft Detent, .5 DIA
Usually ships in 5 to 10 days

$

$43.58

0

43

MTD Part# 738-0648

Shaft, Jack, .625 x 2.385
Usually ships in 5 to 10 days

$

$36.18

0

44

MTD Part# 738-04424A

Shaft, Jack, .6250 x 5.0050
Usually ships in 1 day

$

$13.05

0

45

MTD Part# 941-0600

Ball Bearing, 17 x 40 x 12:6203
Usually ships in 1 day

$

$18.53

0

46

MTD Part# 941-0420

Flange Bearing, 1.0 x 2.5 x 1.38
Usually ships in 1 day

$

$30.89

0

47

MTD Part# 741-0421

Flange Bearing, .75 x 2.5 x 1.38
Usually ships in 1 day

$

$19.90

0

48

MTD Part# 941-0563

Ball Bearing, 17 x 40 x 12:6203
Usually ships in 1 day

$

$26.87

0

49

MTD Part# 741-0862

Ball, Detent, .250
Usually ships in 1 day

$

$3.11

0

50

MTD Part# 750-0258

Spacer, .315 x .750 x .375 LG
Usually ships in 1 day

$

$8.02

0

51

MTD Part# 950-0570

Spacer, 1.0 ID x 2.0 OD x.5 LG
Usually ships in 5 to 10 days

$

$7.07

0
