21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2004) Handlebar Assembly Parts Diagram

Big Red Rear-Tine Tiller

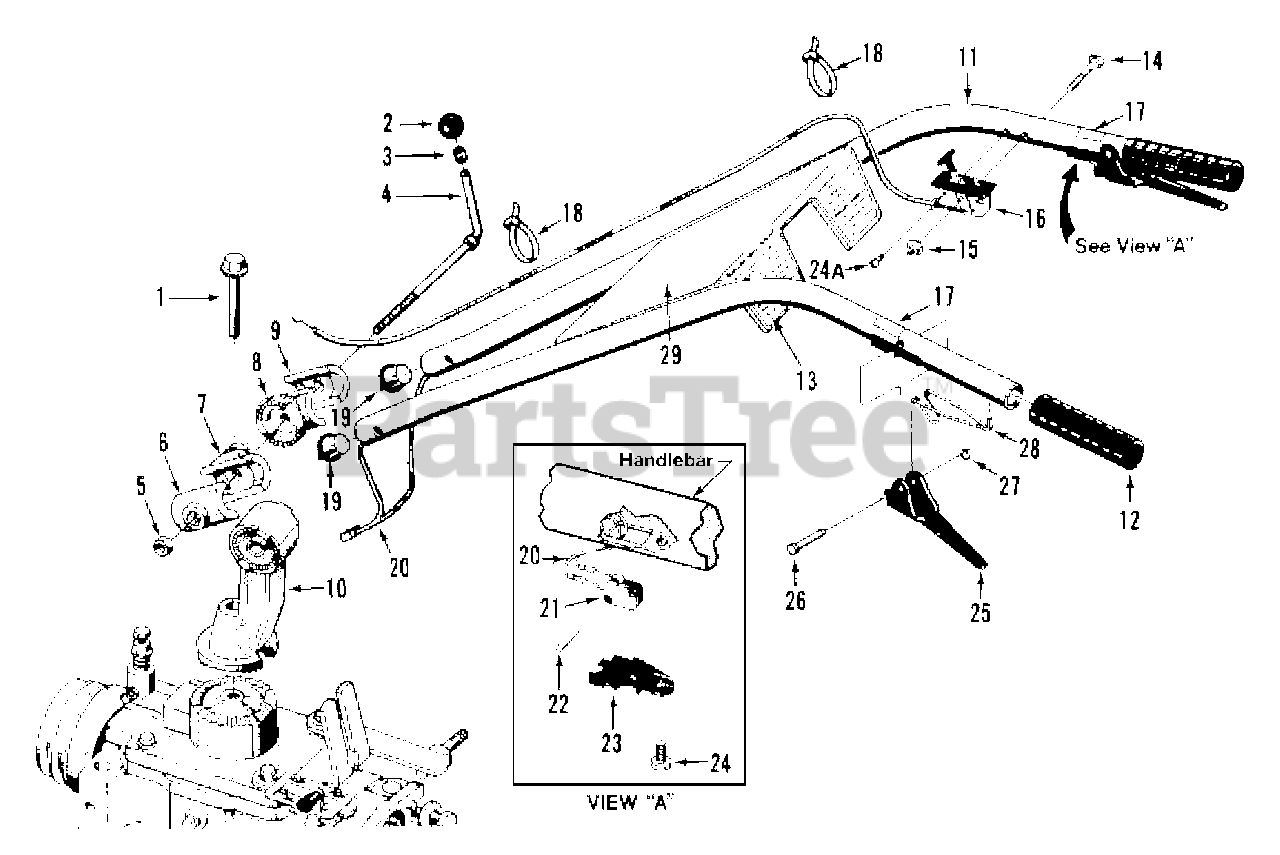

Handlebar Assembly Parts Diagram

  • Title

1

Troy-Bilt GW-9548

Bolt-Hex hd., flanged self-locking Grade 5, 1/2-13 x 3-1/2"

$13.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9119

Knob-handlebar height adjustment

$10.99

$

In Stock, only 3 left!

0

3

Troy-Bilt GW-9120

Ring-retaining (tolerance ring)

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt GW-2657

Stud-handlebar height adjustment
(Superseded to GW-1881)

$57.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1186233

Nut-hex, 1/2"-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-1021-1

Clamp-left, handlebar height adjustment
(Superseded to 1900854010)

$33.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-2542-1

Ratchet-left, handlebar height adjustment
(Superseded to 1900856010)

$39.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-2542-2

Ratchet-right, handlebar height adjustment
(Superseded to 1900857010)

$45.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1901784

Clamp-right, handlebar height adjustment
(Superseded to 1900855010)

$35.99

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-2534A

Base-handlebar mounting
(Superseded to 1900858010)

$116.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 649-04020-0638

Handlebars

$237.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9125

Grip-handlebars
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 777I22026

Decal-Control panel

$

$

Not available

14

Troy-Bilt 1918111

Bolt-curved hd, GR5, 1/4-20 x 2"

$7.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 1186389

Nut-hex, flanged self-locking, whiz lock, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1909286

Throttle Control & Cable, 66"
(Superseded to 1909286P)

$68.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 777I20946

Decal-Forward Interlock Lever

$9.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 725-0157

Tie-plastic

$3.49

$

In Stock, only 4 left!

0

19

Troy-Bilt GW-9219

Plug-wire harness retainer

$9.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-2551

Handlebar Wire Harness Assy-forward interlock system

$69.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt GW-9250

Handlebar Switch-forward interlock system
(Superseded to 725-05005)

$28.99

$

In Stock, only 2 left!

0

22

MTD GW-9385

Lock Pin-handlebar switch

$

$

Not available

23

Troy-Bilt GW-2543

Switch Housing-handlebar switch.
(Superseded to 625-04097)

$67.99

$

Usually ships in 3-6 days

0

Troy-Bilt GW-2563

Switch Assembly
(Superseded to 625-04097)

Note: (Includes Ref. 21-23)

$67.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1186009

Screw-pan head, 10-24 x 1/2", thread-forming

$

$

Not available

24A

Troy-Bilt GW-9733

Screw-phillips head, 10-32 x 1/2", thread-forming
(Superseded to 791-181862)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 786-04003

Lever-Operator Presence Control
(Superseded to 786-04003-0638)

Variations

Troy-Bilt 786-04003-0638

OPC Lever - MTD/TROY-BILT RED (0638)

$26.99

$

In Stock, only 2 left!

0

$26.99

$

In Stock, only 2 left!

0

26

Troy-Bilt GW-9199

Pivot Pin-forward interlock lever

$5.99

$

In Stock, only 2 left!

0

27

Troy-Bilt GW-9514

Retaining Ring-klip ring-forward interlock lever

$6.49

$

In Stock, only 2 left!

0

28

Troy-Bilt GW-9387

Return Spring-fwd interlock lever.
(Superseded to 732-04864A)

$6.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 777D06526

Label - Troy-Bilt Horse

$

$

Not available

Troy-Bilt 777D06527

Label - Troy-Bilt Horse "Big Red"

$

$

Not available
