21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2005) Depth Regulator & Tine Hood Assemblies Parts Diagram

Big Red Rear-Tine Tiller

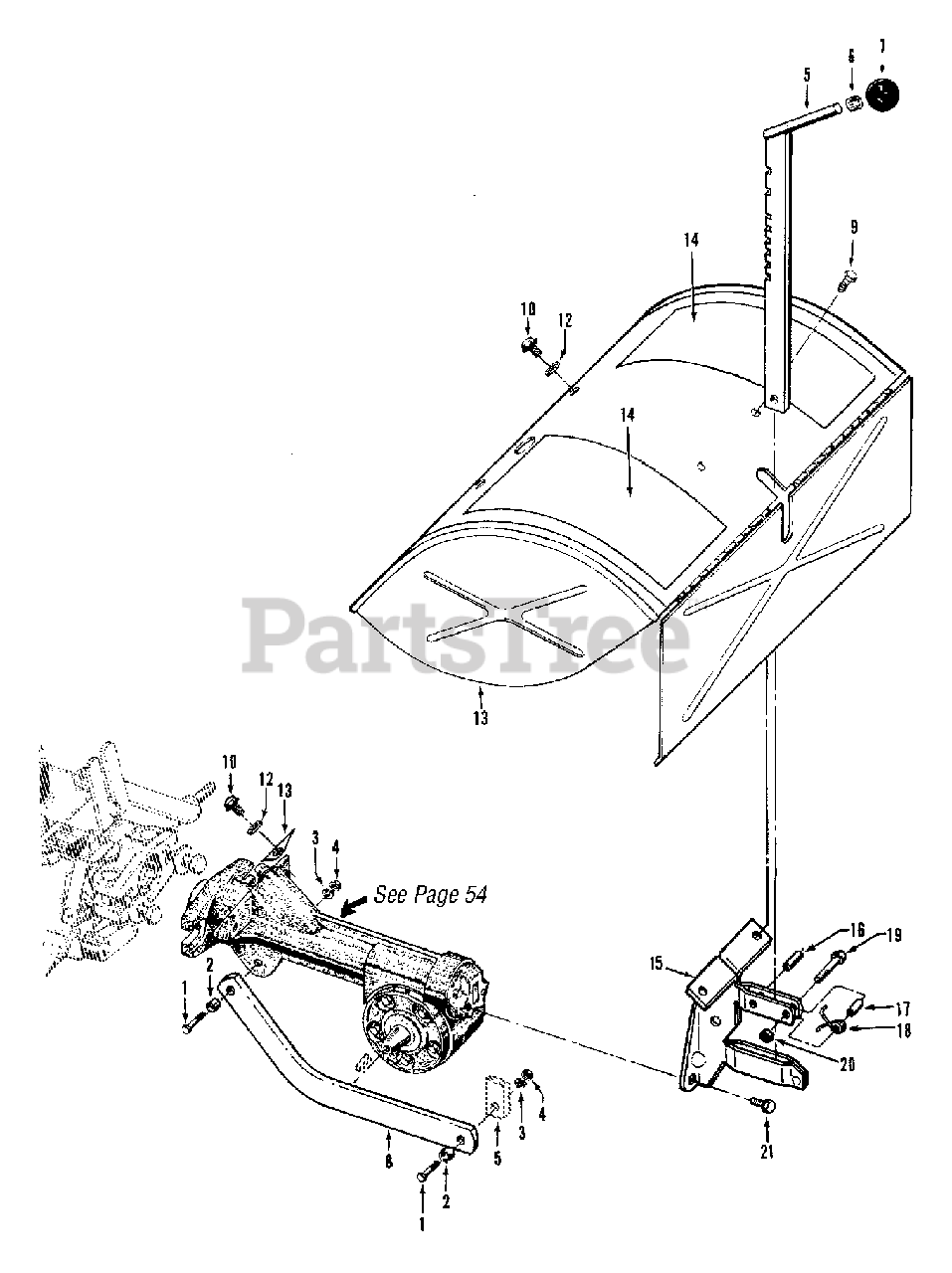

Depth Regulator & Tine Hood Assemblies Parts Diagram

  • Title

1

Troy-Bilt 710-3005

Bolt-hex hd., 3/8-16 x 1-1/4"

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-1113-1

Bushing-19/64" (.300" lg.)
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 736-0169

Lockwasher-spring lock, 3/8"

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-3017

Nut-hex, 3/8"-16

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-20795

Bar-depth regulator
(Superseded to 1900864)

$80.99

$

In Stock, Qty 9

0

6

Troy-Bilt GW-9120

Ring-retaining

$6.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-9119

Knob-depth regulator

$10.99

$

In Stock, only 3 left!

0

8

Troy-Bilt GW-2121

Bar-drag, depth regulator
(Superseded to 1900867001)

$32.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0599

Screw-thread-forming, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4"
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt GW-9929

Washer-flat, 5/16"

$3.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 686-04027

Hood
(Superseded to 1904563)

$396.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 777I22027

Decal-hood, operating inst. (LH)

$33.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777S32049

Decal-hood, operating inst. (RH)

$30.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-2525

Bracket

$91.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1185469

Pin-roll (spirol) 1/4" x 1"
(Superseded to 715-04034)

$6.49

$

In Stock, Qty 7

0

17

Troy-Bilt GW-9534

Spacer

$3.99

$

In Stock, Qty 9

0

18

Troy-Bilt GW-9384

Spring
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 14

0

19

Troy-Bilt 710-0597

Bolt-hex hd., 1/4-20x1"

$3.99

$

In Stock, Qty 19

0

20

Troy-Bilt 1110106

Locknut-1/4"-20

$

$

Not available

21

Troy-Bilt 710-04049

Bolt-flanged hex hd., 5/16-18 x 5/8"

$4.49

$

In Stock, Qty 14
