21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2011) Tiller Transmission Assembly 21A-682 Parts Diagram

Big Red Rear-Tine Tiller

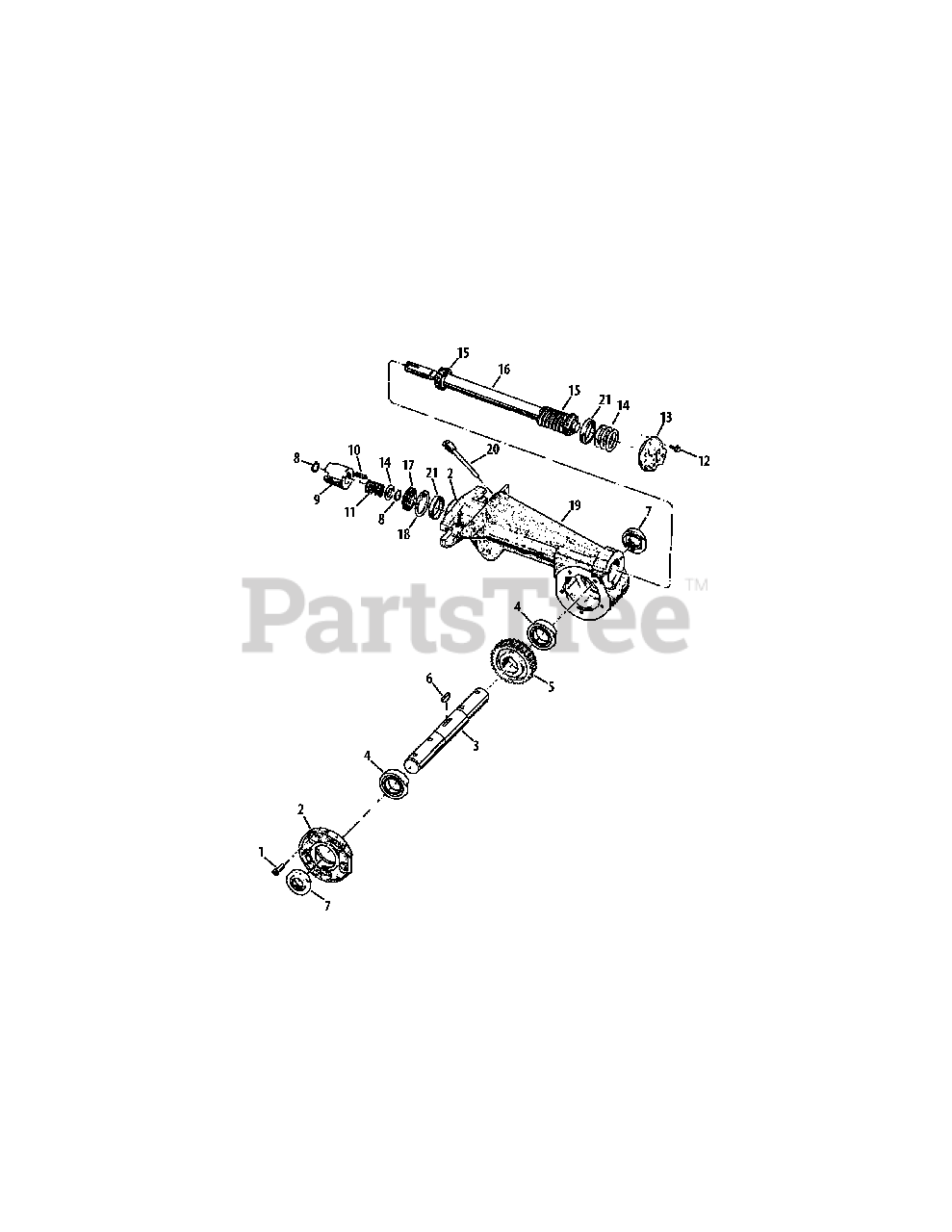

Tiller Transmission Assembly 21A-682 Parts Diagram

  • Title

1

Troy-Bilt 1915068

Self-Sealing Screw, 1/4"-20 x 5/8"*

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-20873

Tiller Housing Cover

$114.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 911-04082

Tine Shaft

$122.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 941-3037

Ball Bearing

$44.99

$

In Stock, Qty 10

0

5

Troy-Bilt 1901976

Worm Gear

$177.99

$

In Stock, only 1 left!

0

6

Troy-Bilt GW-1104

Woodruff Key

$10.99

$

In Stock, Qty 17

0

7

Troy-Bilt 921-04035

Oil Seal

$12.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 916-0101

External Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 718-04614

Dog Clutch

$33.99

$

In Stock, only 2 left!

0

10

Troy-Bilt GW-9301099

Key, 3/16" x 1"
(Superseded to GW-9301)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-2127

Spring
(Superseded to 732-04022)

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1915069

Self-Sealing Screw, 1/4"-20 x 7/8"*

Note: These screws have a special sealing design and cannot be re-used. If removed, replace with new hardware.

$4.99

$

In Stock, Qty 13

0

13

Troy-Bilt 718-04406

Cap

$53.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 736-04305

Flat Washer, 1.75 x 1.5 x .062

Note: Washers of multiple thickness are used as required to obtain a thickness of .005" to .015" of allowable end-play in the drive shaft.

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 736-04306

Flat Washer, 1.75 x 1.5 x .005

Note: Washers of multiple thickness are used as required to obtain a thickness of .005" to .015" of allowable end-play in the drive shaft.

$4.49

$

In Stock, Qty 11

0

14

Troy-Bilt 736-04307

Flat Washer, 1.75 x 1.5 x .03

Note: Washers of multiple thickness are used as required to obtain a thickness of .005" to .015" of allowable end-play in the drive shaft.

$4.99

$

In Stock, Qty 19

0

14

Troy-Bilt 736-04308

Flat Washer, 1.75 x 1.5 x .01

Note: Washers of multiple thickness are used as required to obtain a thickness of .005" to .015" of allowable end-play in the drive shaft.

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 941-04298

Cone Bearing

$17.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-11602

Shaft

$320.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 921-04030

Oil Seal

$12.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 716-04102

Retaining Ring

$4.99

$

In Stock, Qty 15

0

19

Troy-Bilt 1902000

Attachment Housing

$338.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1909157

Oil Dipstick

$19.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 941-04299

Cup Bearing

$7.49

$

In Stock, Qty 20+

0
