21AE682W766 - Troy-Bilt Big Red Rear-Tine Tiller (2016) Transmission Assembly Parts Diagram

Big Red Rear-Tine Tiller

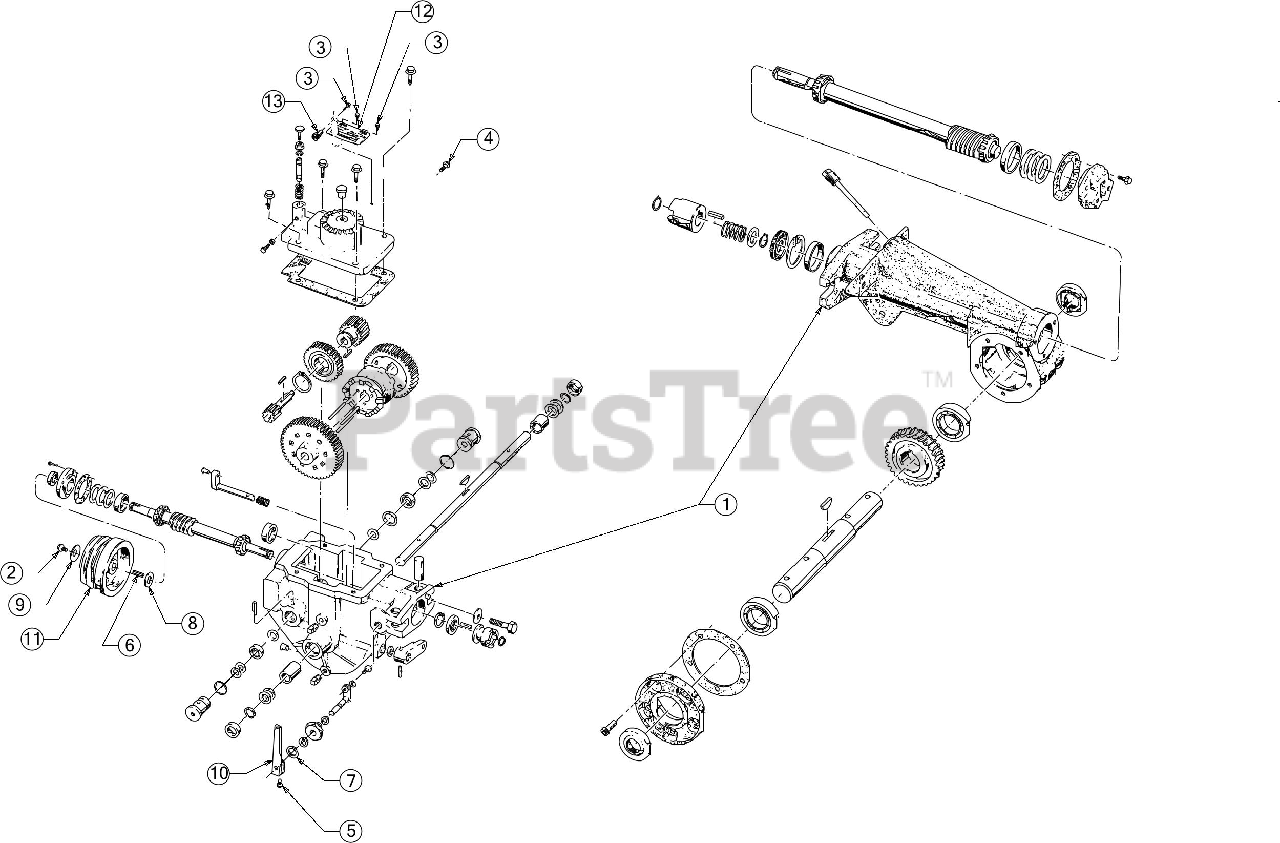

Transmission Assembly Parts Diagram

  • Title

1

N/A

N/A

Note: (Not Serviceable)

$

$

Not available

2

Troy-Bilt 710-0157

HEX SCREW 5/16-24 X .75

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-04454

HEX SCREW #10-32

$4.49

$

In Stock, Qty 7

0

4

Troy-Bilt 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 7

0

6

Troy-Bilt 914-0105

SQUARE KEY 3/16 X 1.

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 936-04088

FLAT WASHER .635 X 1.24 X .181
(Superseded to 736-04088)

$4.99

$

In Stock, Qty 9

0

8

Troy-Bilt GW-50027

WASHER

$7.49

$

In Stock, Qty 9

0

9

Troy-Bilt 736-04193

BELLVILLE WASHER .827 X .331 X .098

$7.49

$

In Stock, Qty 8

0

10

Troy-Bilt 786-04002

ECCENTRIC LEVER SHAFT

$59.99

$

In Stock, only 2 left!

0

11

Troy-Bilt GW-2107

TRANSMISSION PULLEY

$154.99

$

In Stock, only 4 left!

0

12

Troy-Bilt GW-2263

PLATE-TINE ENGAGE

$55.99

$

In Stock, only 4 left!

0

13

Troy-Bilt GW-9463

KNOB-TAPERED

$12.99

$

In Stock, only 2 left!

0
