21AE683F766 - Troy-Bilt Rear-Tine Tiller (2006) Wheel Speed Lever, Belt Drive System, Engines, Wheels Parts Diagram

Rear-Tine Tiller

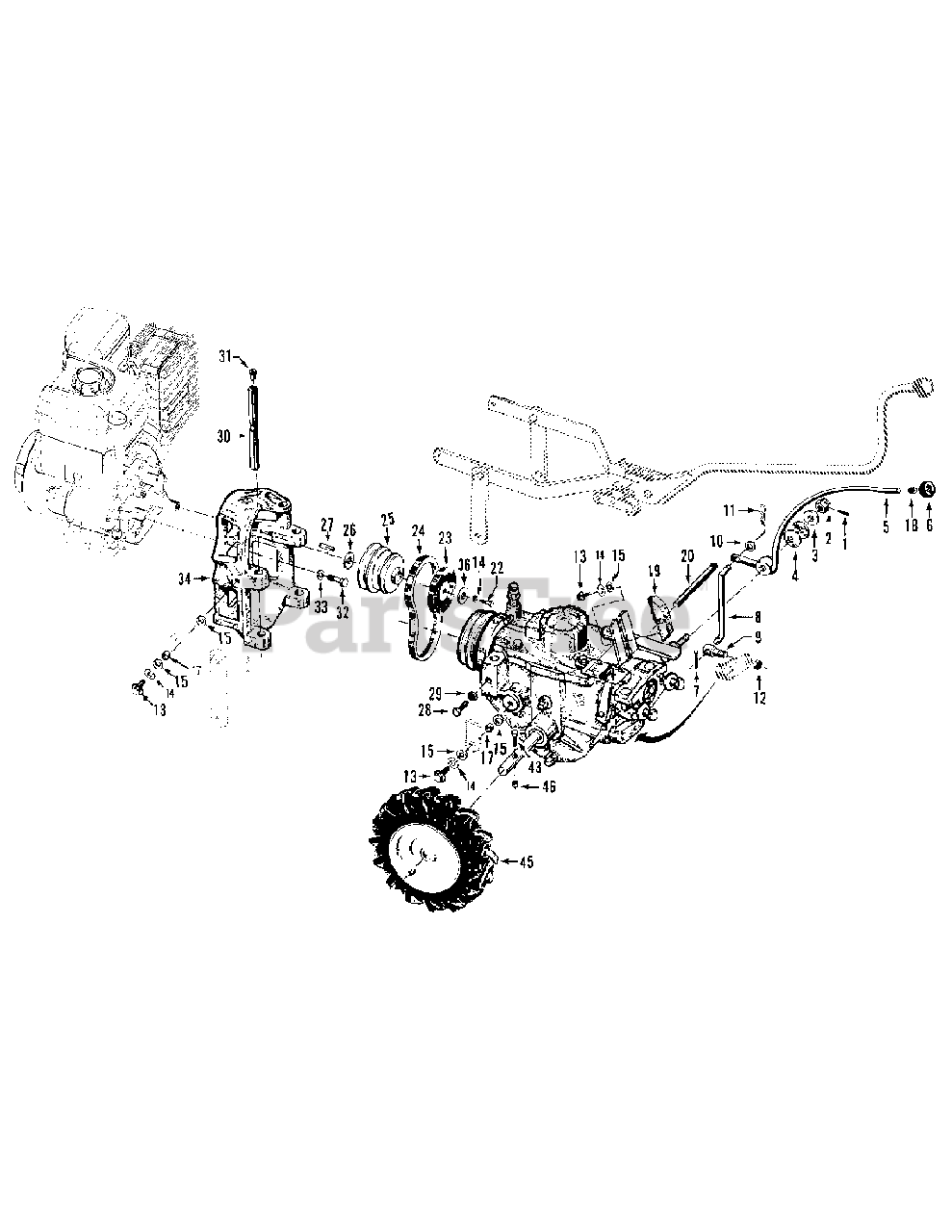

Wheel Speed Lever, Belt Drive System, Engines, Wheels Parts Diagram

  • Title

1

Troy-Bilt GW-9362

Pin-spring, 1/8"

Note: (Wheel Speed Lever 1-18)

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9838

Nut-castle (slotted), 1/2" - 20

$

$

Not available

3

Troy-Bilt GW-9934

Washer-shoulder, 1/2"

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9932

Washer-disc spring

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-2628

Lever-wheel speed shift

$142.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1902240

Knob-wheel speed shift lever

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt GW-9317

Pin-cotter, 3/32" x 1"

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1515

Connecting rod, wheel speed shift lever (Incl Ref.7 & Ref. 9

$

$

Currently unavailable

9

Troy-Bilt GW-1033

Swivel-connecting rod

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-0275

Washer-flat, 5/16", SAE

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04048

Pin-hair cotter

$8.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 712-0158

Locknut-hex hd., 5/16"-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

13

Troy-Bilt 710-0514

Bolt-flanged hex hd, 3/8-16, x 1"

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0169

Lockwasher-spring lock, 3/8"

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3050

Washer-flat, 3/8", SAE

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-1113-1

Bushing-spacer, 19/64" (300"lg)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-9120

Ring-retaining (tolerance ring)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt GW-2102

Block- belt adjustment, 3-7/8"
(Superseded to GW-2102A)

Note: (Belt Drive System 19-27)

$49.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-2100

Rod- belt adjust., 7" with measuring gauge

$12.99

$

Usually ships in 3-6 days

0

21

MTD 777I20942

Decal- engine stabilization

$

$

Not available

22

Troy-Bilt 710-0459A

Bolt-hex hd., 3/8-24 x 1-1/2"

$6.99

$

In Stock, Qty 10

0

23

Troy-Bilt 756-04171

Disc-reverse

$67.99

$

In Stock, Qty 20+

0

24

Troy-Bilt GW-9245

Belt-forward drive (no substitute due to extra strength required)

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 619-04124

Pulley-engine power take off

$153.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 736-04192

Shim-engine pulley, 1/16"

Note: As Req'd

$6.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 736-04187

Shim-as above, 1/32"

Note: As Req'd

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt GW-9303

Key-engine pulley, 3 /16" sq. x 2-1/2"

$3.99

$

In Stock, Qty 10

0

28

Troy-Bilt 710-0376

Bolt-hexhd., 5/16-18 x 1", Grade 5

Note: (Engines and Engine Mount 27-36)

$3.99

$

In Stock, Qty 16

0

29

Troy-Bilt 712-3010

Nut, 5/16-18 hex,

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt GW-1034

Bar-engine mounting
(Superseded to GW-1034A)

$46.99

$

In Stock, Qty 5

0

31

Troy-Bilt GW-9147

Plug-thread protector, red plastic

$8.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-04458

Bolt-hex hd., 5/16-24 x 1-1/8"
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0119

Lockwasher-spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 1916274001

Mount- engine to tiller
(Superseded to 719-04222-0637)

$312.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-3052

Washer, flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

36

MTD 777S30647

Decal-hot surface warning

$

$

Not available

43

Troy-Bilt 710-0606

Screw, Hex, 1/4-20 x 1-1/2" J

Note: (Wheel Assemblies 43-46)

$5.49

$

In Stock, Qty 13

0

45

Troy-Bilt 634-04231

Wheel & Tire Assy - 16 x 4:6 x 8" tubeless tire w\valve stem, on one-piece steel rim. (For correct traction and directional control, Bar Tread Tires should be mounted on the closed end of the "V" in the tire tread on top of the tire faces forward
(Superseded to 934-04231)

$257.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 712-04064

Nut, Hex Flange,1/4-20

$3.99

$

In Stock, Qty 20+

0
