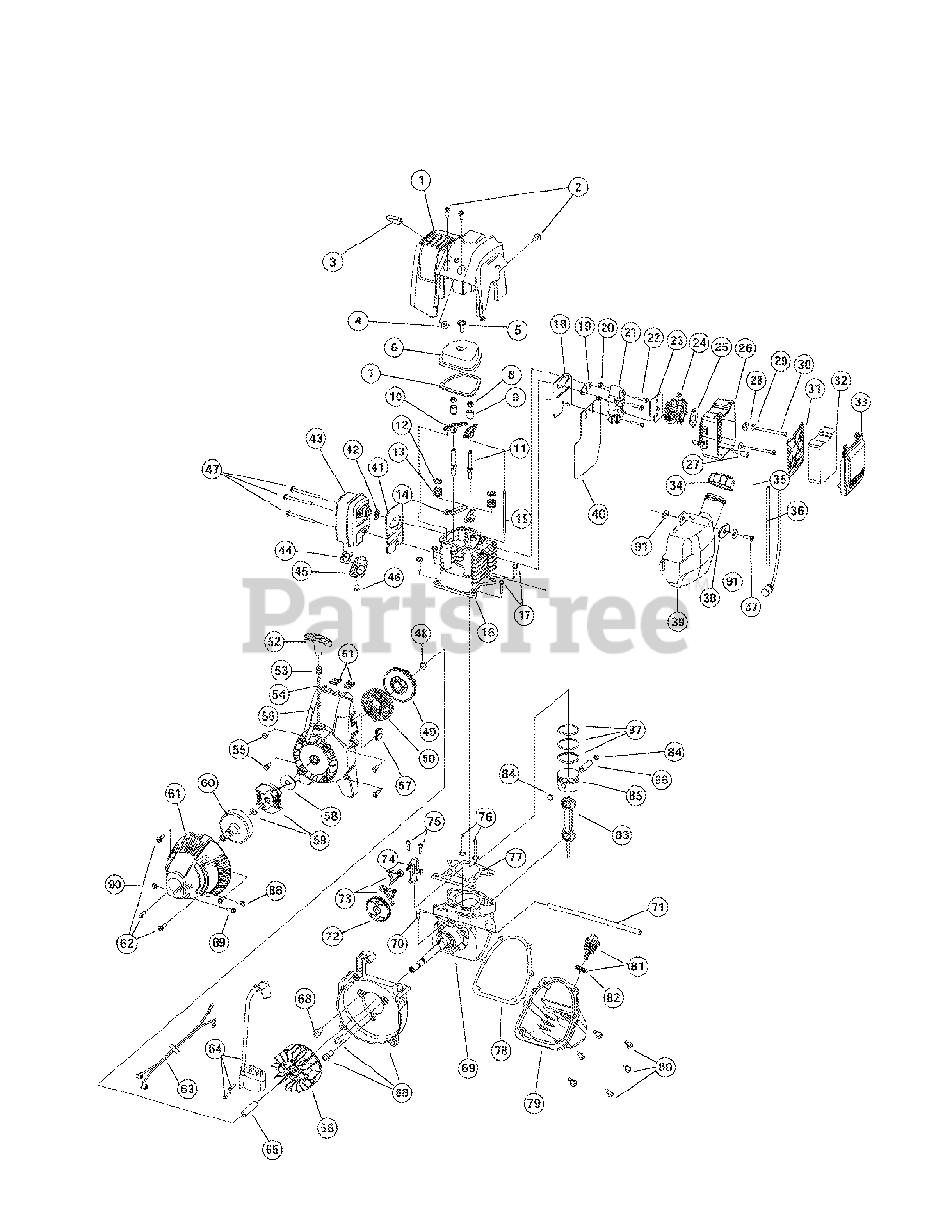

21AT144R966 - Troy-Bilt Tiller (2005) Engine Parts Parts Diagram

Tiller

Engine Parts Parts Diagram

  • Title

1

MTD 753-04028

Engine Cover

$

$

Not available

2

Troy-Bilt 791-182339

Engine Cover Screws
(Superseded to 753-04994)

$6.49

$

In Stock, only 3 left!

0

3

MTD 791-182651

Starter Rope Eyelet

$

$

Not available

4

Troy-Bilt 791-182652

Eyelet Nut

$

$

Not available

5

Troy-Bilt 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182098

Valve Cover

$9.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182099

Valve Cover Gasket

$9.49

$

In Stock, only 1 left!

0

8

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

9

Troy-Bilt 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 791-182100

Rocker Arm

$

$

Not available

11

Troy-Bilt 791-182341

Rocker Arm Stud

$

$

Not available

12

Troy-Bilt 791-182103

Valve Spring Retainer

$

$

Not available

13

MTD 791-181038

Valve Spring

$

$

Not available

14

Troy-Bilt 791-182102

Push Rod Guide

$

$

Not available

15

MTD 791-181033

Push Rod

$

$

Not available

16

MTD 791-182745

Cylinder Assembly (Includes 11-14)
(Superseded to 753-04816)

$

$

Not available

17

Troy-Bilt 791-182344

Cylinder Screw
(Superseded to 791-181003)

$

$

Not available

18

Troy-Bilt 792-182345

Intake Baffle

$

$

Currently unavailable

19

Troy-Bilt 791-182749

Carburetor Mount Gasket

$8.49

$

In Stock, only 3 left!

0

20

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

21

MTD 753-04029

Carburetor Mount (Includes 20)

$

$

Not available

22

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

23

MTD 791-182732

Carburetor Gasket

$

$

Not available

24

Troy-Bilt 753-04296

Carburetor with Primer

$77.99

$

In Stock, Qty 7

0

25

Troy-Bilt 753-04030

Air Filter Gasket

$9.99

$

In Stock, Qty 5

0

26

Troy-Bilt 753-04492

Air Filter Cover Assembly (Includes 27, 28, 31-33)

$

$

Not available

27

Troy-Bilt 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

28

MTD 791-181000

Grommet Washer

$

$

Not available

29

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

30

Troy-Bilt 753-04031

Air Filter Mounting Screw
(Superseded to 792-9973)

$

$

Not available

31

Troy-Bilt 791-182657

Air Filter Plate

$

$

Not available

32

Troy-Bilt 791-182658

Air Filter

$9.99

$

In Stock, Qty 7

0

33

Troy-Bilt 791-182659

Air Filter Cover

$14.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 791-182352

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 791-182353

Fuel Pick-Up Line with Filter

$9.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 791-181080

Screw

$6.49

$

Usually ships in 3-6 days

0

38

MTD 753-04035

Bushing

$

$

Not available

39

MTD 791-182660

Fuel Tank Assembly (Includes 34-36)

$

$

Not available

40

MTD 791-182356

Fuel Tank Shield

$

$

Not available

41

Troy-Bilt 753-1232

Muffler Baffle

$10.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.49

$

In Stock, only 1 left!

0

43

Troy-Bilt 753-04036

Muffler (Includes 42, 44-46)

$

$

Not available

44

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

45

Troy-Bilt 791-181045

Screen Cover

$

$

Not available

46

Troy-Bilt 791-181046

Screw

$

$

Not available

47

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

48

Troy-Bilt 753-04288

Palnut

$9.99

$

In Stock, only 3 left!

0

49

Troy-Bilt 753-05072

Recoil Pulley

$38.99

$

In Stock, only 3 left!

0

Troy-Bilt 753-05074

Pressure Plate Assy

Note: not shown

$

$

Not available

50

Troy-Bilt 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

51

Troy-Bilt 791-182366

Nut Clip

$5.49

$

In Stock, only 2 left!

0

52

Troy-Bilt 753-05011

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

Troy-Bilt 753-04288

Plate Screw

Note: not shown

$9.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 791-182661

Rope

$

$

Not available

55

Troy-Bilt 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, Qty 5

0

56

Troy-Bilt 753-04910

Starter Assembly

$48.99

$

In Stock, Qty 6

0

57

Troy-Bilt 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

59

Troy-Bilt 753-1238

Clutch with Washer

$41.99

$

In Stock, Qty 18

0

60

Troy-Bilt 791-153592

Clutch Drum

$48.99

$

In Stock, Qty 15

0

61

MTD 753-1239

Clutch Cover

$

$

Not available

62

Troy-Bilt 791-181345

Clutch Cover Screw

$3.99

$

In Stock, Qty 18

0

63

Troy-Bilt 753-04039

Lead Wire

$15.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 753-04040

Ignition Module with Screws

$95.99

$

Usually ships in 3-6 days

0

65

MTD 791-181065

Spacer

$

$

Not available

66

Troy-Bilt 791-182736

Flywheel
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

67

Troy-Bilt 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

68

MTD 791-182743

Shroud Assembly with Screws (Includes 67)

$

$

Not available

69

Troy-Bilt 791-182376

Crankcase Assembly (Includes 70 & 71)

$

$

Not available

70

Troy-Bilt 791-182375

90 degree Elbow

$

$

Not available

71

Troy-Bilt 791-182379

Breather Hose

$4.49

$

In Stock, only 1 left!

0

72

Troy-Bilt 791-181015

Cam Gear

$

$

Not available

73

MTD 753-1242

Cam Follower

$

$

Not available

74

Troy-Bilt 791-181013

Cam Bracket

$

$

Not available

75

MTD 791-181012

Cam Bracket Screw

$

$

Not available

76

Troy-Bilt 791-181040

Valves, Intake and Exhaust

$

$

Not available

77

Troy-Bilt 791-182374

Cylinder Gasket

$

$

Not available

78

Troy-Bilt 791-181018

Oil Pan Gasket

$

$

Not available

79

MTD 791-182377

Oil Pan (Includes 78 & 80)

$

$

Not available

80

Troy-Bilt 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, Qty 5

0

81

Troy-Bilt 753-04041

Dipstick Assembly (Includes 82)
(Superseded to 791-182378)

$9.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 791-182290

O-Ring

$4.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 791-181009

Connecting Rod

$

$

Not available

84

Troy-Bilt 791-181008

Wrist Pin Button

$9.99

$

Usually ships in 3-6 days

0

85

MTD 753-1243

Piston

$

$

Not available

86

Troy-Bilt 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

87

Troy-Bilt 791-181005

Piston Ring Set
(Superseded to 753-04801)

$

$

Not available

88

Troy-Bilt 791-145569

Anit-Rotation Screw

$9.49

$

In Stock, Qty 11

0

89

MTD 753-1240

Screw

$

$

Not available

90

MTD 753-1241

Nut

$

$

Not available

91

Troy-Bilt 791-182236

Washer

$5.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180852B

Spark Plug Not shown
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 753-04087

Short Block Assembly (Includes 5-17,69-87); Not shown

$

$

Not available

Troy-Bilt 753-04014

Carburetor Repair Kit Not shown

$35.99

$

In Stock, Qty 5

0
