21B-34M8711 - Troy-Bilt Colt Front-Tine Tiller (2015) Adjustable Handles Parts Diagram

Colt Front-Tine Tiller

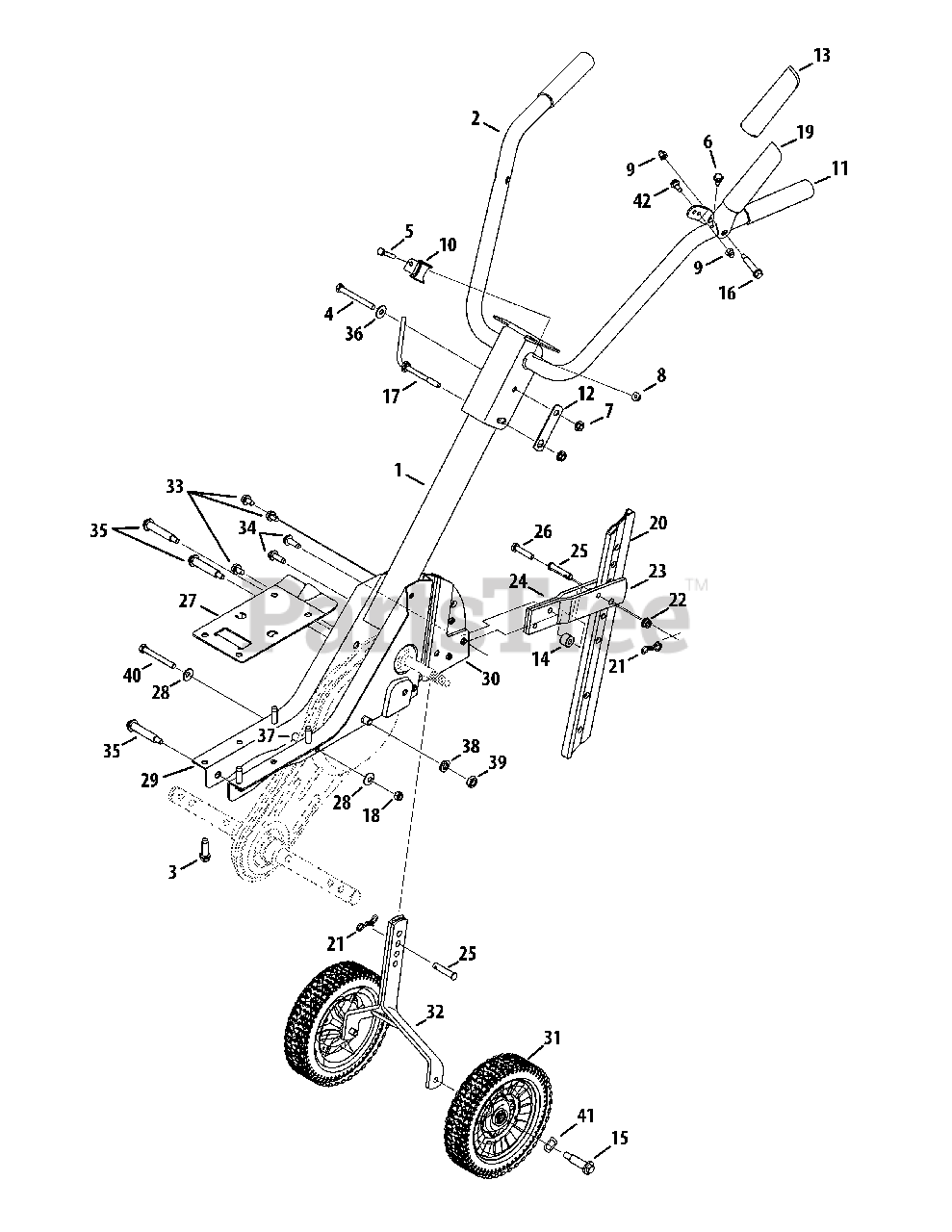

Adjustable Handles Parts Diagram

  • Title

1

Troy-Bilt 649-04023-0638

Handle Tube Assembly

$58.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 649-04038A-0638

Handle Handle Assembly

$73.99

$

In Stock, Qty 6

0

3

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, Qty 9

0

4

Troy-Bilt 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

5

Troy-Bilt 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.99

$

In Stock, Qty 7

0

6

Troy-Bilt 710-1017

Screw, 1/4-14 x .625

$8.99

$

In Stock, Qty 14

0

7

Troy-Bilt 712-04063

Hex Flange L-Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-0442

Acorn Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

10

Troy-Bilt 719-0279

Rope Guide

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 720-0274

Grip, 1.0 x 5.0

$12.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 786-0341

Retainer Bracket

$9.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-0473

Grip, Handle

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 750-0890

Spacer

$7.49

$

In Stock, only 3 left!

0

15

Troy-Bilt 738-0929

Shoulder Screw, .496 x 1.445

$8.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 938-1226

Shoulder Screw, .375 x 1.355, 1/4-20
(Superseded to 738-1226)

$8.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 786-0340B

Handle Adjustment Crank

$20.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 912-0429

Nylon Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 686-0002-0637

Clutch Lever Assembly

$43.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 786-0005-0637

Depth Bar

$42.99

$

In Stock, Qty 7

0

21

Troy-Bilt 714-04043

Cotter Pin, Bow Tie

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04063

Hex Flange L-Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 786-0003-0637

Tail Piece Bracket, Left

$24.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 786-0004-0637

Tail Piece Bracket, Right

$37.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 5

0

26

Troy-Bilt 710-0805A

Hex Bolt, 5/16-18 x 1.5"

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 786-0145A-0638

Engine Plate

$21.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 736-0242

Bell Washer, .340" x .872"

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 786-0138A-0638

Frame, RH

$108.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-0139A-0638

Frame, LH

$107.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 734-1781

Wheel, 8 x 1.75, Bar Tread
(Superseded to 734-1855)

$34.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 686-0081A-0637

Wheel Hanger Bracket Assembly

$94.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-0602

Hex Washer TT-Tap Screw

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 738-0934A

Shoulder Bolt, 5/16-18

$8.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-0242

Bell Washer, .34"

$4.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 750-0470

Spacer

$7.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 10

0

39

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

41

Troy-Bilt 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 938-1225

Shoulder Screw, .3175 x .188, 1/4-20
(Superseded to 738-1225)

$

$

Not available
