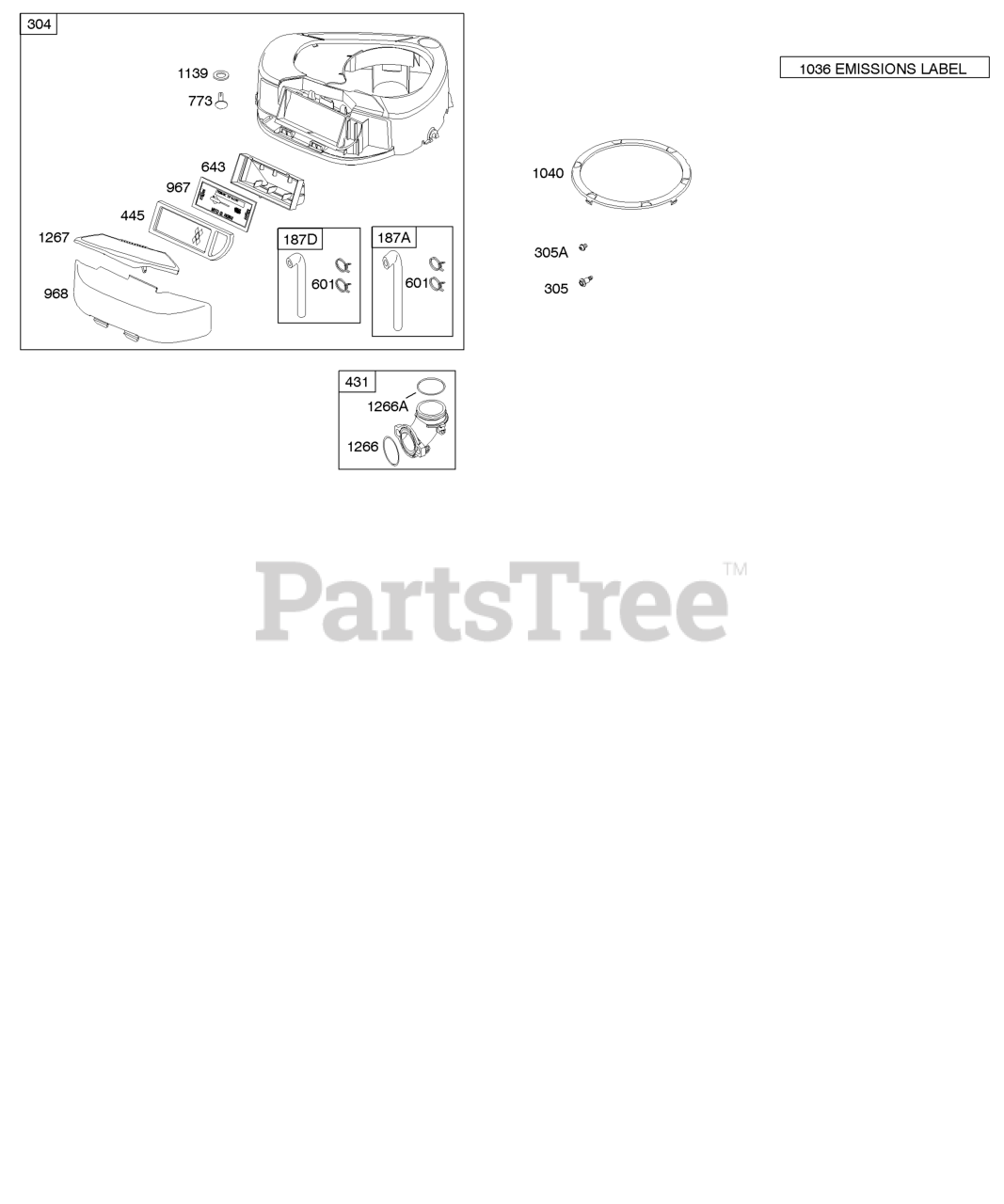

21B707-0453-B2 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing Parts Diagram

  • Title

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$59.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$16.99

$

In Stock, Qty 16

0

304

Briggs & Stratton 796414

Housing-Blower
(Superseded to 591906)

Note: (Black)

$173.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing)

$4.49

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 793376

Screw
(Superseded to 799370)

Note: (Blower Housing)

$4.49

$

In Stock, Qty 20+

0

431

Briggs & Stratton 697122

Elbow-Intake

$27.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 698413

Filter-Air Cleaner Cartridge
(Superseded to 794421)

Note: (Non Washable)

$16.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

643

Briggs & Stratton 697155

Retainer-Air Filter

$12.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, Qty 12

0

967

Briggs & Stratton 697292

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 5

0

968

Briggs & Stratton 697420

Cover-Air Cleaner

Note: (Black)

$45.99

$

In Stock, only 2 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1040

Briggs & Stratton 698368

PLATE, Trim

$15.99

$

In Stock, only 2 left!

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.99

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 2 left!

0

1267

Briggs & Stratton 697419

Latch-Blower Housing

Note: (Black)

$19.99

$

In Stock, only 3 left!

0
