21C214-0135-E1 - Briggs & Stratton Horizontal Engine Carburetor, Exhaust System, Kit - Carburetor Overhaul Parts Diagram

Horizontal Engine

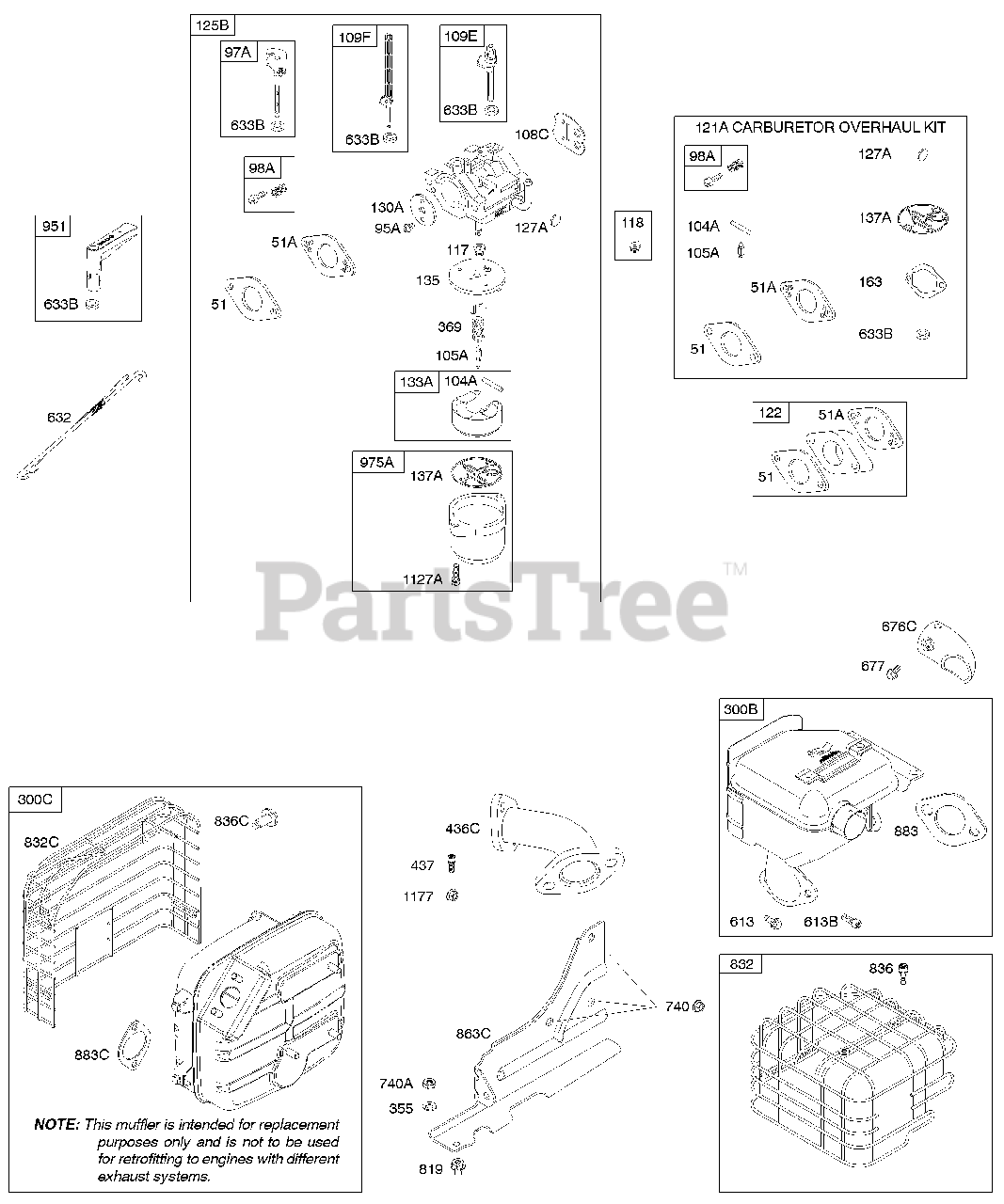

Carburetor, Exhaust System, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 694874

Gasket-Intake

$4.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 694875

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97A

Briggs & Stratton 696387

Shaft-Throttle

$41.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 2 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 1 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 10

0

108C

Briggs & Stratton 696736

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109E

Briggs & Stratton 696735

Shaft-Choke

$30.99

$

Usually ships in 2-12 days

0

109F

Briggs & Stratton 793162

Shaft-Choke

$30.99

$

In Stock, only 4 left!

0

117

Briggs & Stratton 696134

JET, Main

Note: (Standard)

$18.99

$

In Stock, Qty 5

0

118

Briggs & Stratton 696135

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 696146

Kit-Carb Overhaul

Note: (Nikki Carburetor)

$50.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 694876

Spacer-Carburetor

$

$

Not available

125B

Briggs & Stratton 794593

Carburetor
(Superseded to 796122)

$136.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 696139

Valve-Throttle

$10.99

$

In Stock, only 2 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 696142

Tube-Fuel Transfer

$41.99

$

In Stock, Qty 8

0

137A

Briggs & Stratton 695426

Gasket-Float Bowl

$9.49

$

In Stock, Qty 9

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

300B

Briggs & Stratton 794695

Muffler

$130.99

$

Usually ships in 2-12 days

0

355

Briggs & Stratton 691075

WASHER

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

369

Briggs & Stratton 695422

Spring-Float Bowl

$8.49

$

In Stock, Qty 12

0

436C

Briggs & Stratton 792374

Manifold-Exhaust

$45.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 696705

Screw

Note: (Exhaust Manifold)

$

$

Not available

613

Briggs & Stratton 695312

Screw

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 696705

Screw

Note: (Muffler) (TORX HEAD)

$

$

Not available

632

Briggs & Stratton 695917

Spring/Link-Mechanical Governor

Note: (Use With Nikki Carburetor)

$

$

Not available

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

In Stock, only 2 left!

0

740

Briggs & Stratton 710090

Nut

Note: (Muffler Bracket)

$3.99

$

Usually ships in 2-12 days

0

740A

Briggs & Stratton 793859

Nut

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690352

Screw

Note: (Muffler Bracket)

$6.99

$

In Stock, only 3 left!

0

832

Briggs & Stratton 699223

Guard-Muffler
(Superseded to 796384)

$83.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691003

SCREW

Note: (Muffler Guard)

$3.49

$

In Stock, only 1 left!

0

863C

Briggs & Stratton 793700

Bracket-Muffler

$75.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, only 4 left!

0

883C

Briggs & Stratton 710250

Gasket-Exhaust

$8.49

$

Usually ships in 2-12 days

0

951

Briggs & Stratton 699961

Lever-Choke

$11.99

$

In Stock, only 1 left!

0

975A

Briggs & Stratton 696138

Bowl-Float

$45.99

$

Usually ships in 2-12 days

0

1127A

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 11

0

1177

Briggs & Stratton 710090

Nut

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0
